6. Use the provided stainless steel machine screws to attach the
upper housing to the base. There will be 4 screws per side
(total of 8). On each side of the housing, there will be 3
screws securing the upper housing to PVC motor mount sup-
port and 1 screw attaching the stainless steel reinforcing sup-
port to the housing just above the 3 previous screws (Fig 22).

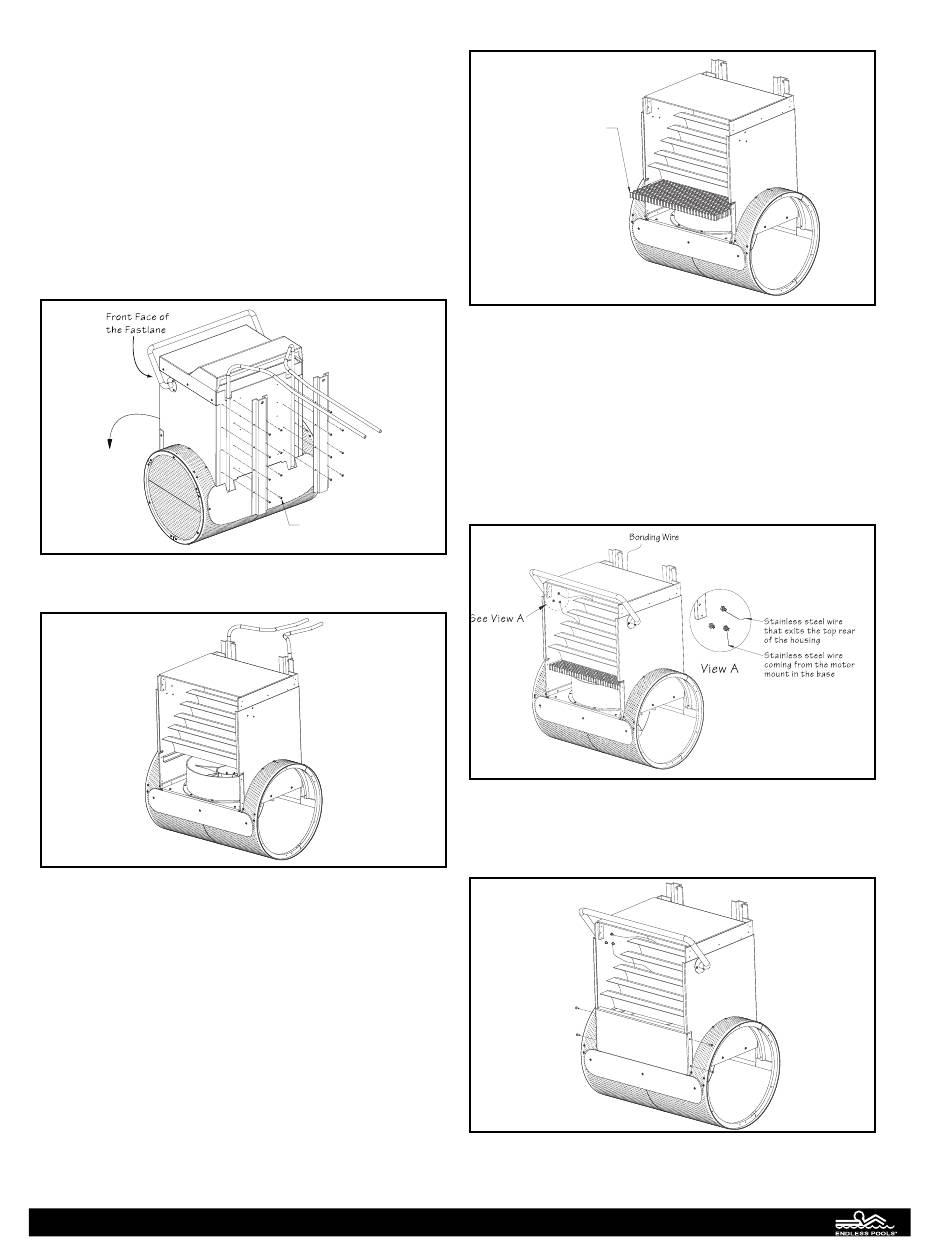

7. Carefully lay the Fastlane onto its front face. Run the
hydraulic hoses up the back of the upper housing. The two
hat channels will be placed over the hydraulic hoses. Make
sure that the mounting hole in the end of the hat channel is
facing up and that the bottom of the hat channel has been
inserted into the notch in the cylindrical base. Use the pro-
vided 3/4" machine screws to attach the hat channels to the
upper housing. There will be eight screws per hat channel
(Fig 23).
Fig. 23
8. Pull any excess hose out of the hat channel (Fig 24).
Fig. 24
9. Slide the horizontal water-conditioning grill back into its
track inside the housing. The horizontal grill is the wider of
the two grills (Fig 25).
11
Fig. 25
10. Install the stainless steel grab bar to the upper housing using
3/4" Machine Screws x16
Fig. 26
11. Reattach the throat (removed in step 4) to the upper housing.
Fig. 27
Slide the Horizontal
Grill back into place
the provided machine screws and lock nuts. Feed the stain-
less steel wire attached to the motor mount up through the
horizontal grill. Then feed the wire up between two of the
turning vanes. Place the stainless steel wire (from the motor
mount in the base) around the bottom screw on the left side
before tightening down on the nut. Place the second stain-
less steel wire (that exits the top rear of the upper housing)
around another screw before tightening down on the nut
(Fig 26).
Again, there will be 2 screws on either side of the throat
(total of 4) (Fig 27).
