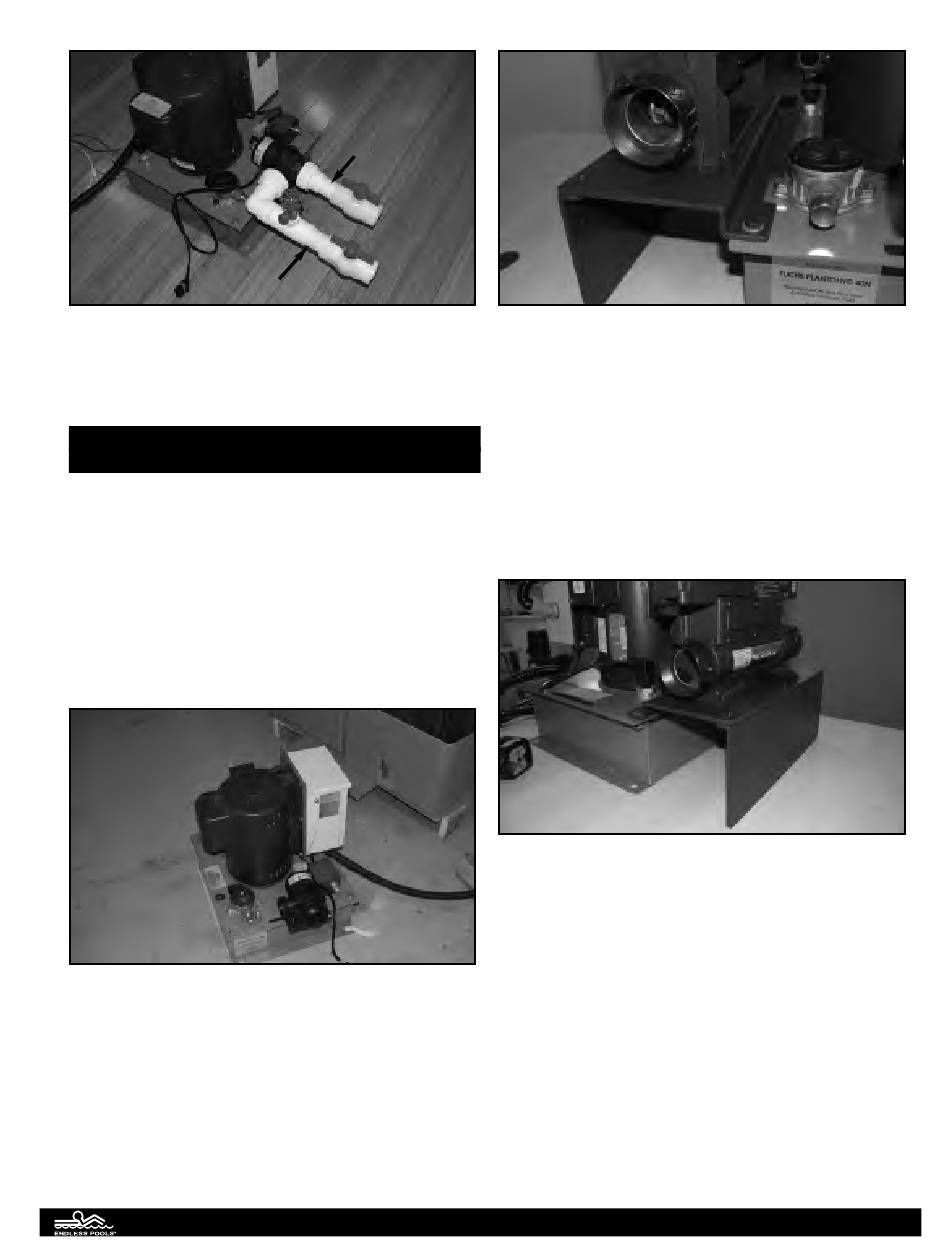

Fig. 33
11. Cut the 50' length down to the appropriate lengths to
connect the suction side of the pump to the union at the
skimmer thru-wall assembly and connect the pressure side
of the pump to the union at the return thru-wall assembly.
ASSEMBLING THE WATER QUALITY
SYSTEM WITH HEATER CONTROLLER
Note: Additional PVC fittings can be found in the Heater
Controller box.
1. Loosely attach the circulating pump to the power unit. The
pump will be attached to the handle of the power unit on the
same side as the hydraulic connections. Place the circulating
pump onto the power unit so that the suction of the circulat-
ing pump is facing away from the power unit (Fig 34).
2. Place the pump foot clamp onto the underside of the power
unit handle, aligning the holes in the pump foot clamp to
holes in the pump foot. The pump foot clamp is packaged
with the equipment hutch box. Use the provided screws to
clamp the pump to the power unit handle.
Fig. 34
3. Next remove the two reservoir mounting bolts on the side
opposite the power unit controller. Align the holes in the
heater controller mounting board with the holes in the power
unit that were just removed. The mounting board is packaged
with the Water Quality System equipment hutch box. The two
pieces of the mounting board will have to be assembled as
shown. Replace the bolts and tighten securely (Fig 35).
Suction
Pressure
Fig. 35
4. Place the heater controller-mounting clamp onto the mount-
ing board so that it is aligned with the holes closest to the
power unit. The tabs of the mounting clamp should be facing
away from the power unit. There should also be a gap
between the tab and the spacer. Use the provided hardware to
attach the mounting clamp to the mounting board. DO NOT
install screws into the front holes at this time.
5. Slide the heater controller into position, so that the plug-in
ports are facing away from the power unit and the feet of the
heater controller are seated firmly under the mounting clamp.
Once the heater controller is in place, use the provided nut
and machine screws to attach the front of the heater controller
to the mounting board (Fig 36).
Fig. 36
6. Pre-cut lengths of PVC have been provided. Apply PVC clean-
er to both faces of the joint prior to gluing for every glue joint.
7. Glue a 2-1/4" length of pipe onto each end of the provided Tee.
8. Position the 3/4" female pipe thread portion of the Tee so that it
is facing out away (horizontally) from the power unit. On the
right side of the Tee, glue the pump union onto the pipe (make
sure that the pump union nut is in place prior to gluing) (Fig 37).
9. On the left side of the Tee, glue the female end of a male slip
x female slip elbow (street elbow) onto the pipe.
10. Glue a heater controller union half onto the male end of the
street elbow.
11. Once this assembly has been glued together, connect the
pump to the heater controller. Make sure that there is an o-
ring between the pump union and the pump discharge and
there is a T-Gasket between the heater controller union nut
and the union half.
