Fastlane Swim Unit Assembly - Endless Pools Fastlane Installation Manual And User's Manual

Thru-Wall Fitting
Insert Elbow
Hose Clamp
Fig. 18
Return Connection
1. A directional eyeball fitting has been provided with the Water
Quality System. This eyeball fitting is to be secured to the
return thru-wall fitting (front left). For optimal heating of the
pool, make sure that the opening in the eyeball fitting is
pointing down.

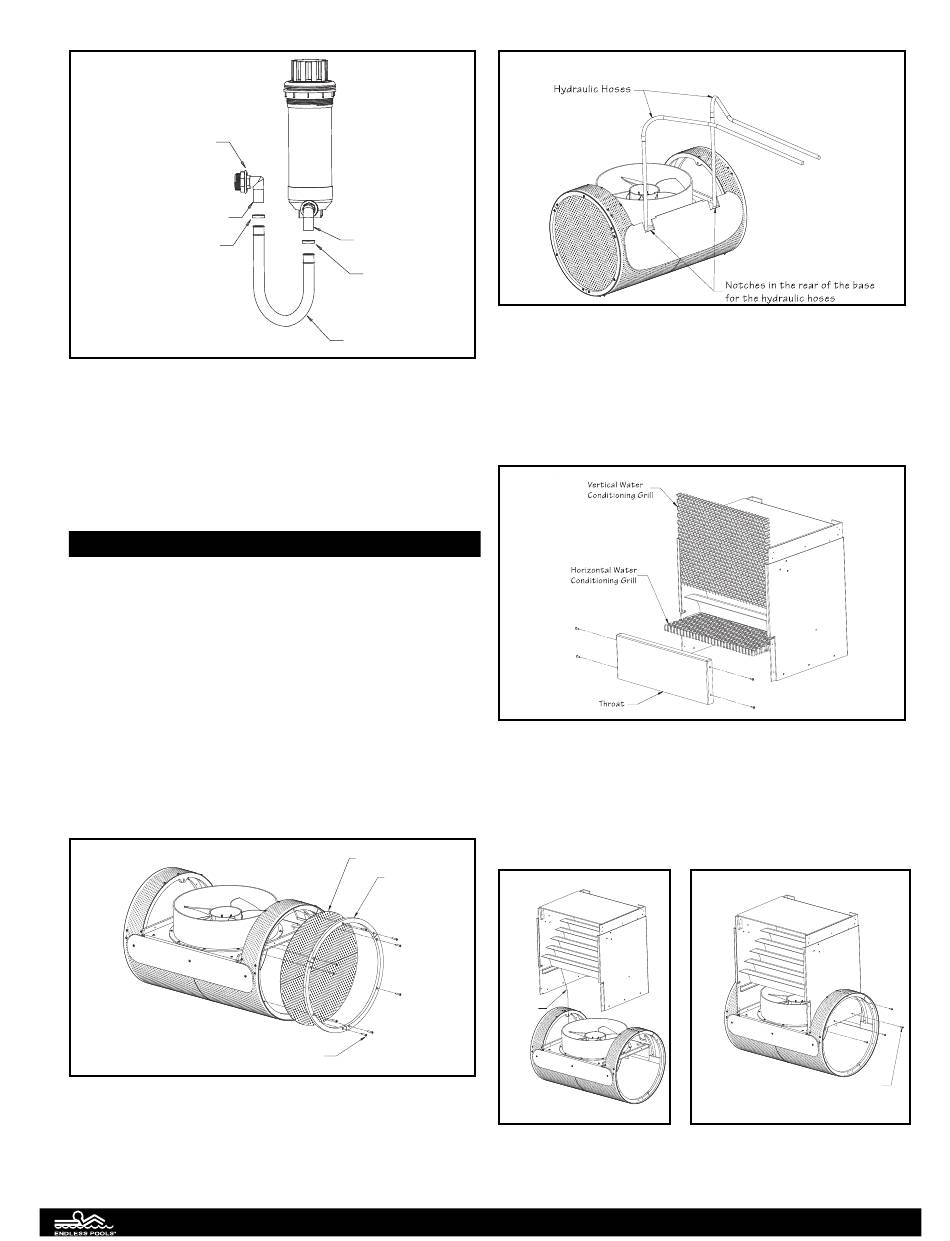

FASTLANE SWIM UNIT ASSEMBLY

1. Carefully unpack the swim unit from its boxes. Make sure to
remove any hardware packs from the boxes as well. The
packaging can be collapsed and used as a protective surface
upon which to assemble the Fastlane. The foam packing
material can be used to wedge under the base to prevent it
from tipping over.
2. Take care when handling or working with any of the stainless
steel components of the swim unit. The ends can be sharp.
The first step is to remove the two circular end caps from
each side of the cylindrical base. There are 3 arced cover
strips around the perimeter of the end cap. Unthread the nine
screws that secure the cover strips (3 screws per cover strip).
Repeat this step for the other side of the stainless steel base.
Carefully set each end cap aside (Fig 19).
Repeat this process for the
other side of the stainless steel base
Remove these 9 screws
Fig. 19
3. Uncoil the two lengths of hydraulic hose that are attached to
the cylindrical base. Make sure that the hoses are seated into
their respective notches in the backside of the base (Fig 20).
Insert Elbow
Hose Clamp
Fig. 20
4. Remove the throat from the upper housing. There are two
Suction Hose
screws on each side of the throat. Pull the throat off of the
housing and set it aside. Pull the vertical water-conditioning
grill up and out of the housing. Pull the horizontal grill out of
its track and remove from the housing. Make sure to remove
and discard the wood 2x4 spacer from the bottom of the
housing before proceeding (Fig 21).
Fig. 21
5. Carefully remove the protective film encasing the upper
housing. Place the upper housing into the opening of the
cylindrical base (Fig 22). The hydraulic hoses connected to
the base should be aligned with the back of the upper hous-
ing. Make sure that the stainless steel bonding wire attached
to the motor mount is positioned inside of the upper housing.
Circular End Cap
Arced Cover Strip
Bond Wire
Fig. 22
Repeat this process for the
1" Machine Screw
other side of the Fastlane
(4 per side)
