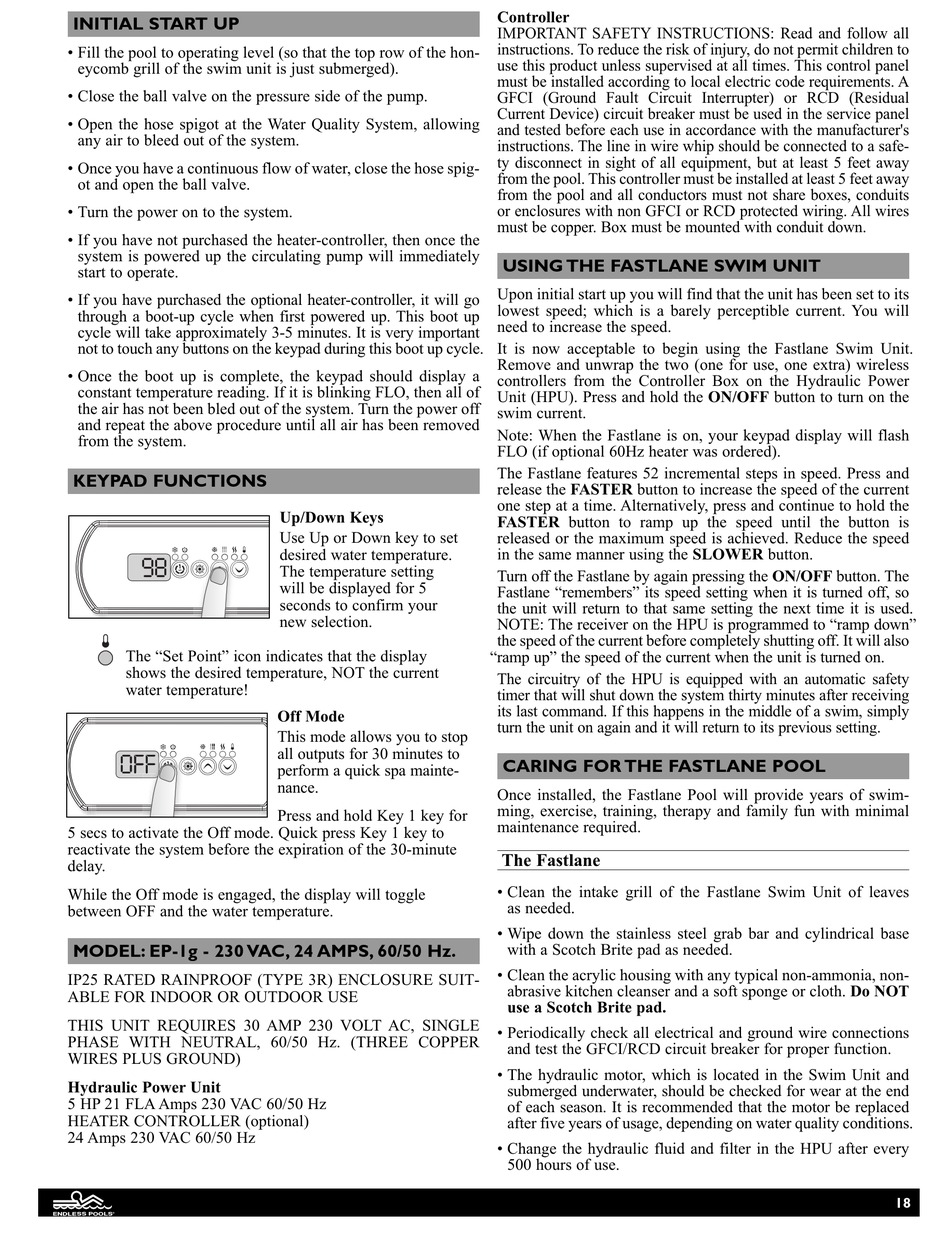

INITIAL START UP

• Fill the pool to operating level (so that the top row of the hon-
eycomb grill of the swim unit is just submerged).
• Close the ball valve on the pressure side of the pump.
• Open the hose spigot at the Water Quality System, allowing
any air to bleed out of the system.
• Once you have a continuous flow of water, close the hose spig-
ot and open the ball valve.
• Turn the power on to the system.
• If you have not purchased the heater-controller, then once the
system is powered up the circulating pump will immediately
start to operate.
• If you have purchased the optional heater-controller, it will go
through a boot-up cycle when first powered up. This boot up
cycle will take approximately 3-5 minutes. It is very important
not to touch any buttons on the keypad during this boot up cycle.
• Once the boot up is complete, the keypad should display a
constant temperature reading. If it is blinking FLO, then all of
the air has not been bled out of the system. Turn the power off
and repeat the above procedure until all air has been removed
from the system.

KEYPAD FUNCTIONS

98
The "Set Point" icon indicates that the display
shows the desired temperature, NOT the current
water temperature!
OFF
5 secs to activate the Off mode. Quick press Key 1 key to
reactivate the system before the expiration of the 30-minute
delay.
While the Off mode is engaged, the display will toggle
between OFF and the water temperature.
MODEL: EP-1g - 230 VAC, 24 AMPS, 60/50 Hz.
IP25 RATED RAINPROOF (TYPE 3R) ENCLOSURE SUIT-
ABLE FOR INDOOR OR OUTDOOR USE
THIS UNIT REQUIRES 30 AMP 230 VOLT AC, SINGLE
PHASE WITH NEUTRAL, 60/50 Hz. (THREE COPPER
WIRES PLUS GROUND)
Hydraulic Power Unit
5 HP 21 FLA Amps 230 VAC 60/50 Hz
HEATER CONTROLLER (optional)
24 Amps 230 VAC 60/50 Hz
Up/Down Keys
Use Up or Down key to set
desired water temperature.
The temperature setting
will be displayed for 5
seconds to confirm your
new selection.
Off Mode
This mode allows you to stop
all outputs for 30 minutes to
perform a quick spa mainte-
nance.
Press and hold Key 1 key for
Controller
IMPORTANT SAFETY INSTRUCTIONS: Read and follow all
instructions. To reduce the risk of injury, do not permit children to
use this product unless supervised at all times. This control panel
must be installed according to local electric code requirements. A
GFCI (Ground Fault Circuit Interrupter) or RCD (Residual
Current Device) circuit breaker must be used in the service panel
and tested before each use in accordance with the manufacturer's
instructions. The line in wire whip should be connected to a safe-
ty disconnect in sight of all equipment, but at least 5 feet away
from the pool. This controller must be installed at least 5 feet away
from the pool and all conductors must not share boxes, conduits
or enclosures with non GFCI or RCD protected wiring. All wires
must be copper. Box must be mounted with conduit down.

USING THE FASTLANE SWIM UNIT

Upon initial start up you will find that the unit has been set to its
lowest speed; which is a barely perceptible current. You will
need to increase the speed.
It is now acceptable to begin using the Fastlane Swim Unit.
Remove and unwrap the two (one for use, one extra) wireless
controllers from the Controller Box on the Hydraulic Power
Unit (HPU). Press and hold the ON/OFF button to turn on the
swim current.
Note: When the Fastlane is on, your keypad display will flash
FLO (if optional 60Hz heater was ordered).
The Fastlane features 52 incremental steps in speed. Press and
release the FASTER button to increase the speed of the current
one step at a time. Alternatively, press and continue to hold the
FASTER button to ramp up the speed until the button is
released or the maximum speed is achieved. Reduce the speed
in the same manner using the SLOWER button.
Turn off the Fastlane by again pressing the ON/OFF button. The
Fastlane "remembers" its speed setting when it is turned off, so
the unit will return to that same setting the next time it is used.
NOTE: The receiver on the HPU is programmed to "ramp down"
the speed of the current before completely shutting off. It will also
"ramp up" the speed of the current when the unit is turned on.
The circuitry of the HPU is equipped with an automatic safety
timer that will shut down the system thirty minutes after receiving
its last command. If this happens in the middle of a swim, simply
turn the unit on again and it will return to its previous setting.

CARING FOR THE FASTLANE POOL

Once installed, the Fastlane Pool will provide years of swim-
ming, exercise, training, therapy and family fun with minimal
maintenance required.
The Fastlane
• Clean the intake grill of the Fastlane Swim Unit of leaves
as needed.
• Wipe down the stainless steel grab bar and cylindrical base
with a Scotch Brite pad as needed.
• Clean the acrylic housing with any typical non-ammonia, non-
abrasive kitchen cleanser and a soft sponge or cloth. Do NOT
use a Scotch Brite pad.
• Periodically check all electrical and ground wire connections
and test the GFCI/RCD circuit breaker for proper function.
• The hydraulic motor, which is located in the Swim Unit and
submerged underwater, should be checked for wear at the end
of each season. It is recommended that the motor be replaced
after five years of usage, depending on water quality conditions.
• Change the hydraulic fluid and filter in the HPU after every
500 hours of use.
18
