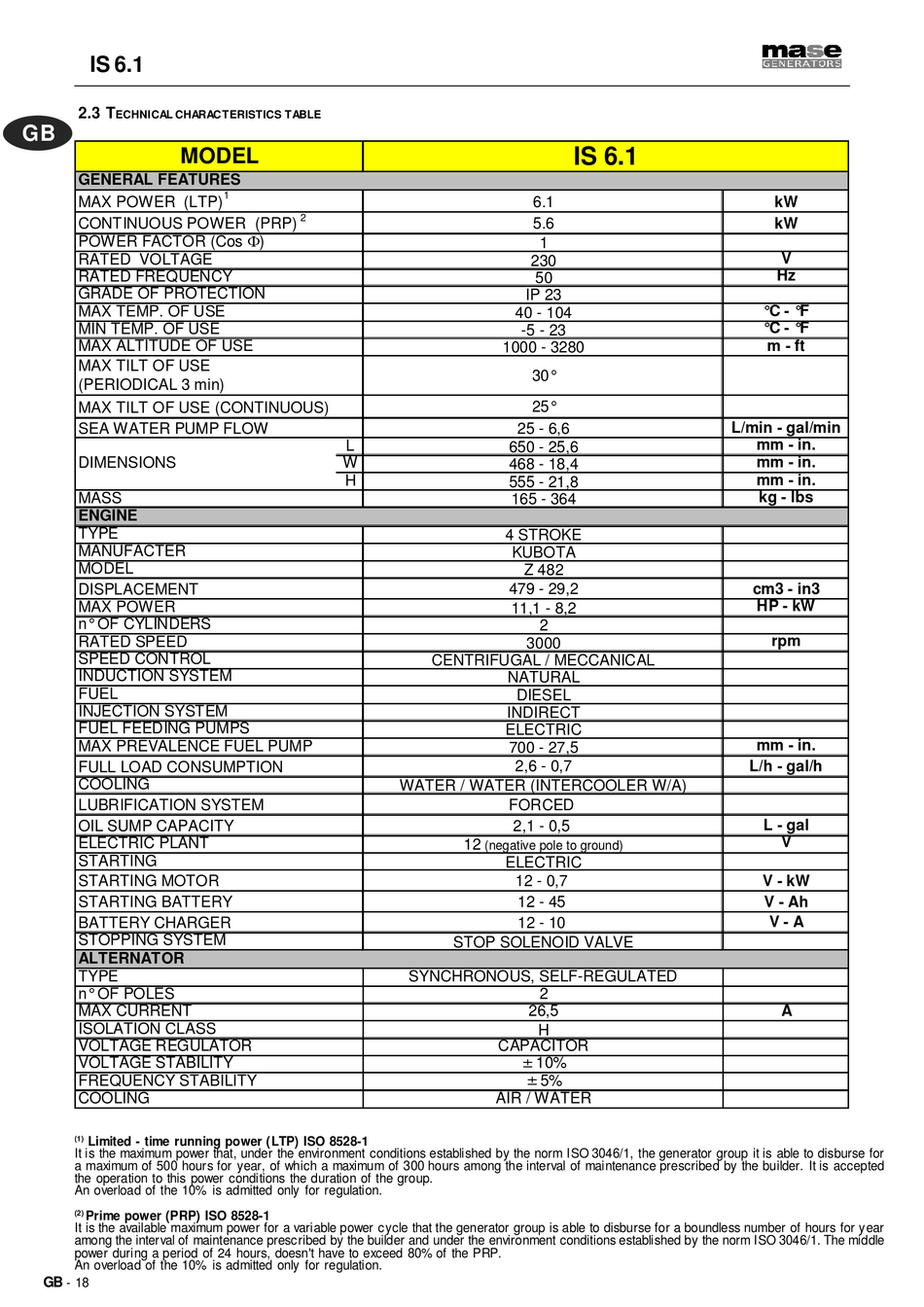

Table Of Technical Characteristics - Mase Generators IS 6.1 Use, Maintenance And Installation Manual

IS 6.1
2.3 T
ECHNICAL CHARACTERISTICS TABLE
GB
MODEL
GENERAL FEATURES
MAX POWER (LTP)
CONTINUOUS POWER (PRP)
POWER FACTOR (Cos F)
RATED VOLTAGE
RATED FREQUENCY
GRADE OF PROTECTION
MAX TEMP. OF USE
MIN TEMP. OF USE
MAX ALTITUDE OF USE
MAX TILT OF USE
(PERIODICAL 3 min)
MAX TILT OF USE (CONTINUOUS)
SEA WATER PUMP FLOW
DIMENSIONS
MASS
ENGINE
TYPE
MANUFACTER
MODEL
DISPLACEMENT
MAX POWER
n° OF CYLINDERS
RATED SPEED
SPEED CONTROL
INDUCTION SYSTEM
FUEL
INJECTION SYSTEM
FUEL FEEDING PUMPS
MAX PREVALENCE FUEL PUMP
FULL LOAD CONSUMPTION
COOLING
LUBRIFICATION SYSTEM
OIL SUMP CAPACITY
ELECTRIC PLANT
STARTING
STARTING MOTOR
STARTING BATTERY
BATTERY CHARGER
STOPPING SYSTEM
ALTERNATOR
TYPE
n° OF POLES
MAX CURRENT
ISOLATION CLASS
VOLTAGE REGULATOR
VOLTAGE STABILITY
FREQUENCY STABILITY
COOLING
(1)
Limited - time running power (LTP) ISO 8528-1
It is the maximum power that, under the environment conditions established by the norm ISO 3046/1, the generator group it is able to disburse for
a maximum of 500 hours for year, of which a maximum of 300 hours among the interval of maintenance prescribed by the builder. It is accepted
the operation to this power conditions the duration of the group.
An overload of the 10% is admitted only for regulation.
(2)
Prime power (PRP) ISO 8528-1
It is the available maximum power for a variable power cycle that the generator group is able to disburse for a boundless number of hours for year
among the interval of maintenance prescribed by the builder and under the environment conditions established by the norm ISO 3046/1. The middle
power during a period of 24 hours, doesn't have to exceed 80% of the PRP.
An overload of the 10% is admitted only for regulation.
GB
- 18
1
2
L
W
H
6.1
5.6
1
230
50
IP 23
40 - 104
-5 - 23
1000 - 3280
30°
25°
25 - 6,6
650 - 25,6
468 - 18,4
555 - 21,8
165 - 364
4 STROKE
KUBOTA
Z 482
479 - 29,2
11,1 - 8,2
2
3000
CENTRIFUGAL / MECCANICAL
NATURAL
DIESEL
INDIRECT
ELECTRIC
700 - 27,5
2,6 - 0,7
WATER / WATER (INTERCOOLER W/A)
FORCED
2,1 - 0,5
12
(negative pole to ground)
ELECTRIC
12 - 0,7
12 - 45
12 - 10
STOP SOLENOID VALVE
SYNCHRONOUS, SELF-REGULATED
2
26,5
H
CAPACITOR
A10%
A 5%
AIR / WATER
IS 6.1
L/min - gal/min
kW
kW
V
Hz
°C - °F
°C - °F
m - ft
mm - in.
mm - in.
mm - in.
kg - lbs
cm3 - in3
HP - kW
rpm
mm - in.
L/h - gal/h
L - gal
V
V - kW
V - Ah
V - A
A
