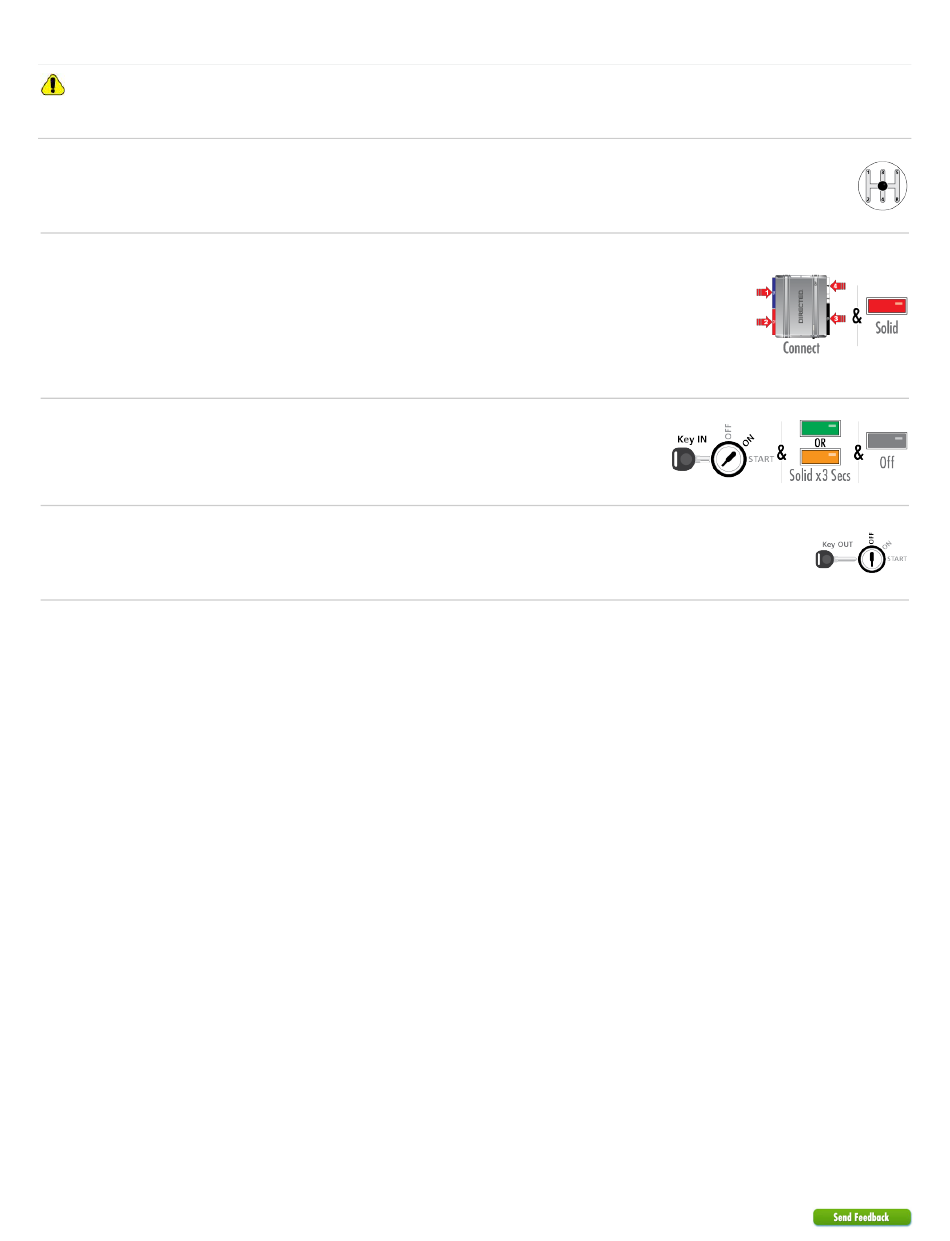

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

Note: The master key is REQUIRED to complete the module programming successfully.

Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2. Connect the 12-pin.
2
3. Connect the 10-pin.
4. Connect the 4-pin D2D cable (if being used).
When the LED turns ON solid red, proceed with the next step.
Insert and turn the key to the ignition position. Wait for the LED to turn on solid green for 3
seconds, and turn OFF.
3
Note: If transponder programming was skipped, the LED turns ON solid orange for 3
seconds then shuts OFF when programming is done.
4
Turn the key to the OFF position, and remove it from the ignition barrel.
You have successfully completed the module programming sequence.
10
403.TL10 2.32 2015 Toyota RAV4 (H Key)
