Module programming for convenience features only (skip transponder)
Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.
Ensure vehicle is in a safe location and cannot move forward during programming. For vehicles
1
equipped with a manual transmission, make sure the gearshift is in the neutral position.

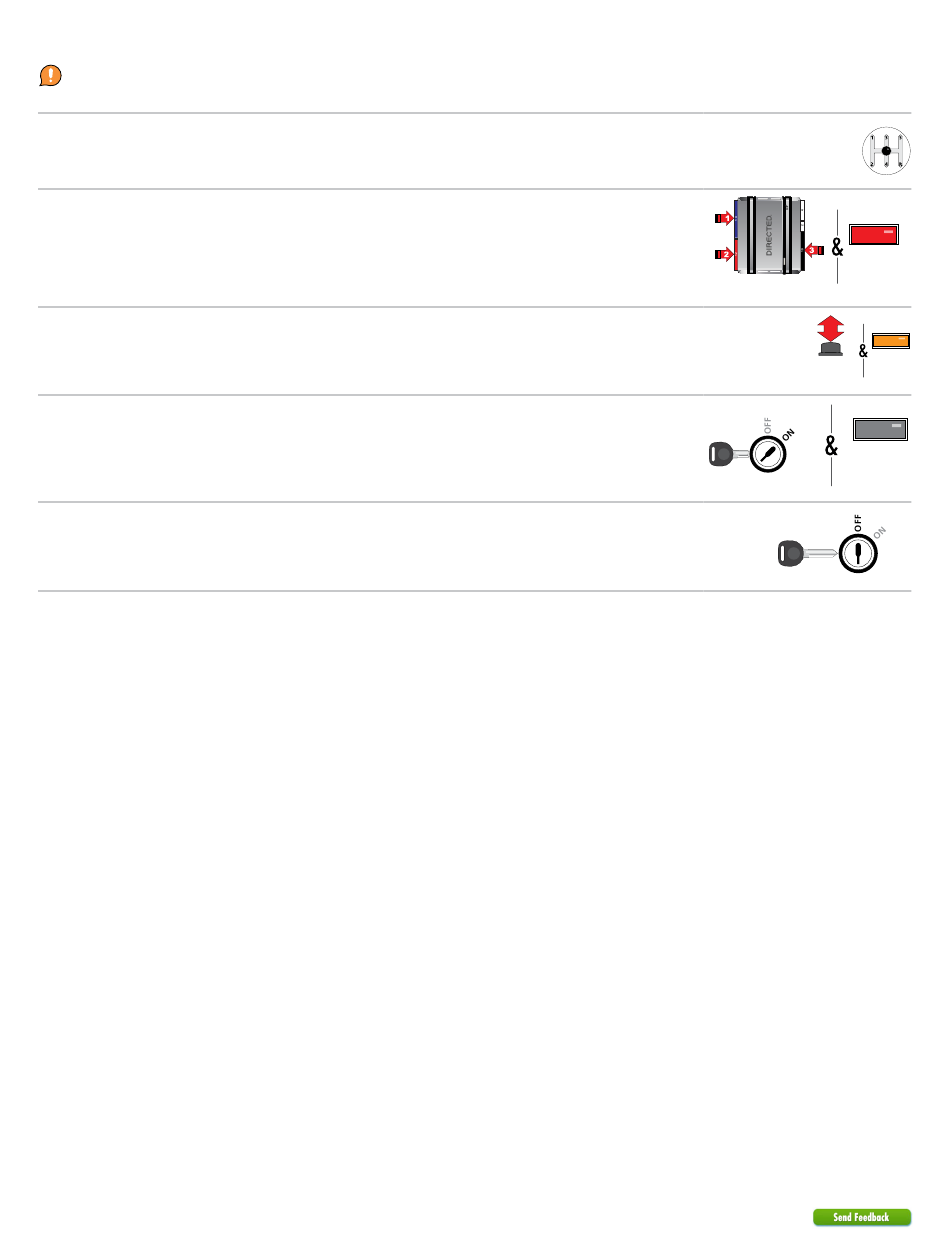

The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2
2. Connect the 12-pin.
3. Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Press the programming button five (5) times.
3
The LED turns ON solid orange.
4
Turn the ignition ON and wait until the LED turns OFF.
5
Turn ignition OFF and remove the key from the ignition barrel.
You have successfully completed the module programming sequence.
11
403.TL10 2.32 2015 Toyota RAV4 (H Key)
