2. Robots

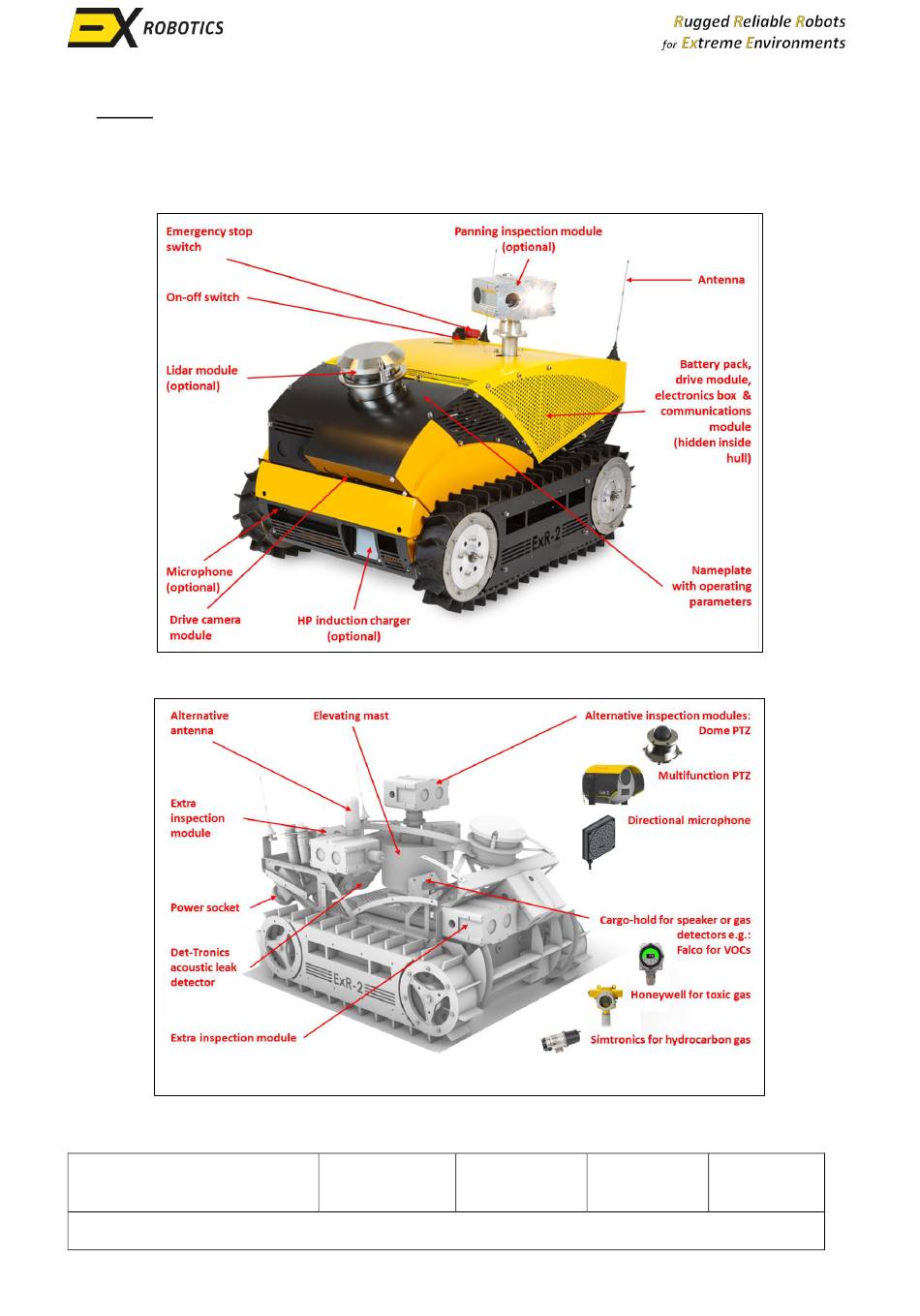

ExR-2 robots are assembled from a number of modules mounted on a skeleton that's clad in sheet
steel. Many of these modules are optional. The main features of our basic robot are identified on
this picture of a clad robot.
Additional options are identified on this image of the robot's skeleton.
More detailed robot specifications are included in Section 11.
