2.

Robots

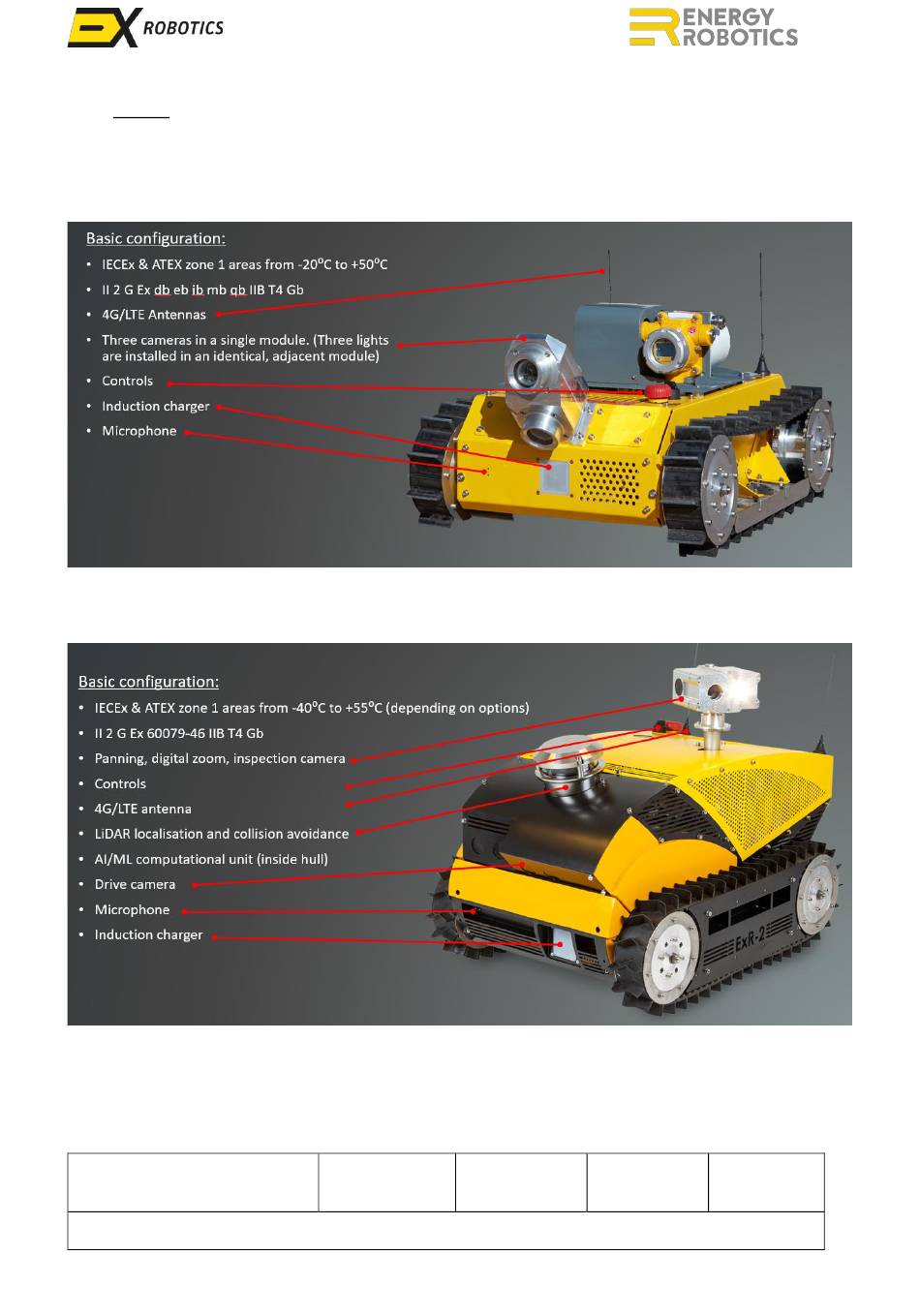

Once deployed, users will have little reason to interact with robots. However, the major
components are shown on the drawings below. Robot specifications are included in Section 9.
The only controls mounted on each robot are the red emergency stop switch and the black on/off
switch. When the red emergency stop switch is pressed downwards it immobilises the drive
motors. The robot can't be driven until the switch is released by rotating it and letting it spring
