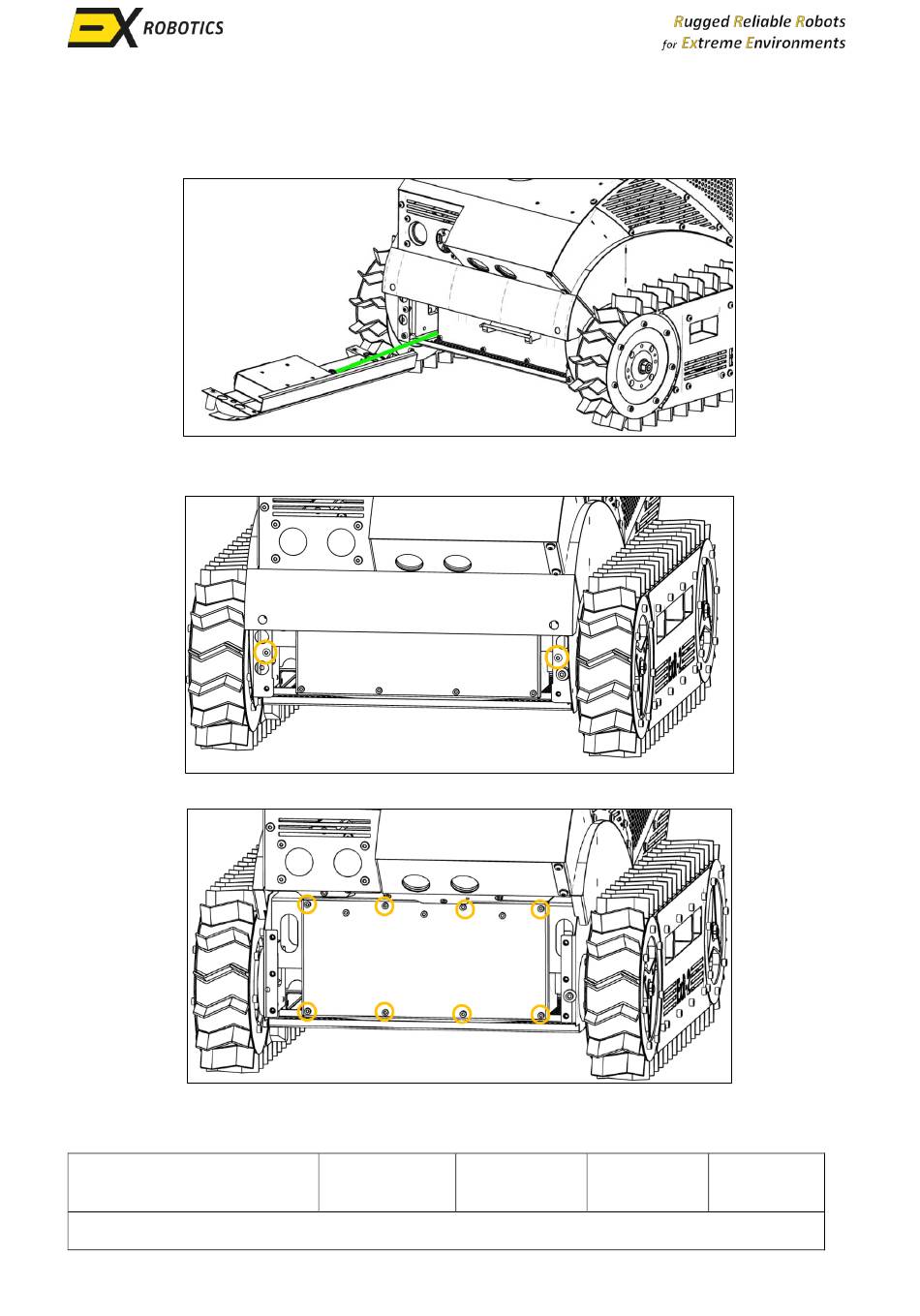

▪ Carefully pull out the spare cable for the microphone and charger from the hull, then set the
panel aside as depicted in the image below.
▪ Remove the two socket button head screws that secure the robot's upper front panel and set
the panel aside.
▪ Remove the eight screws that secure the battery pack's lid and set it aside.
ExRobotics B.V.
ExR-2 Robot
Operating Guide
This document is considered an uncontrolled copy when printed. Always ensure that you print and use a current version.
Copyright 2023 ExRobotics B.V.
Document No.:
Owner:
20220412IP1
Version No.: 3
Ian Peerless
Date:
Page 49 of 69
2023-07-25
