Control section A

Item Symbol
1
2
3
4
099-00T500-EW501
30.1.2023
Machine control – Operating elements
Description 0
System push-button
• ----------- Quick access to various device configuration parameters. For the complete
parameter list, see the machine configuration menu > see 5.10 chapter
• ----------- Lock function - protection against accidental adjustment > see 4.3.6 chapter
push-button - JOB Favourites > see 5.3.1 chapter
•-----------Pressing the push-button briefly: Loading Favourites
•-----------Press and hold the push-button (>2 s): Saving as a Favourite
•-----------Press and hold the push-button (>12 s): Deleting a Favourite
Push-button for welding procedure
-------- TIG-welding
------- MMA welding
-------- MMA Cel welding (characteristics for cellulose electrode)
Click wheel
• ----------- Setting the welding power
• ----------- Navigate through menu and parameters
• ----------- Setting the parameter values depending on the preselection.

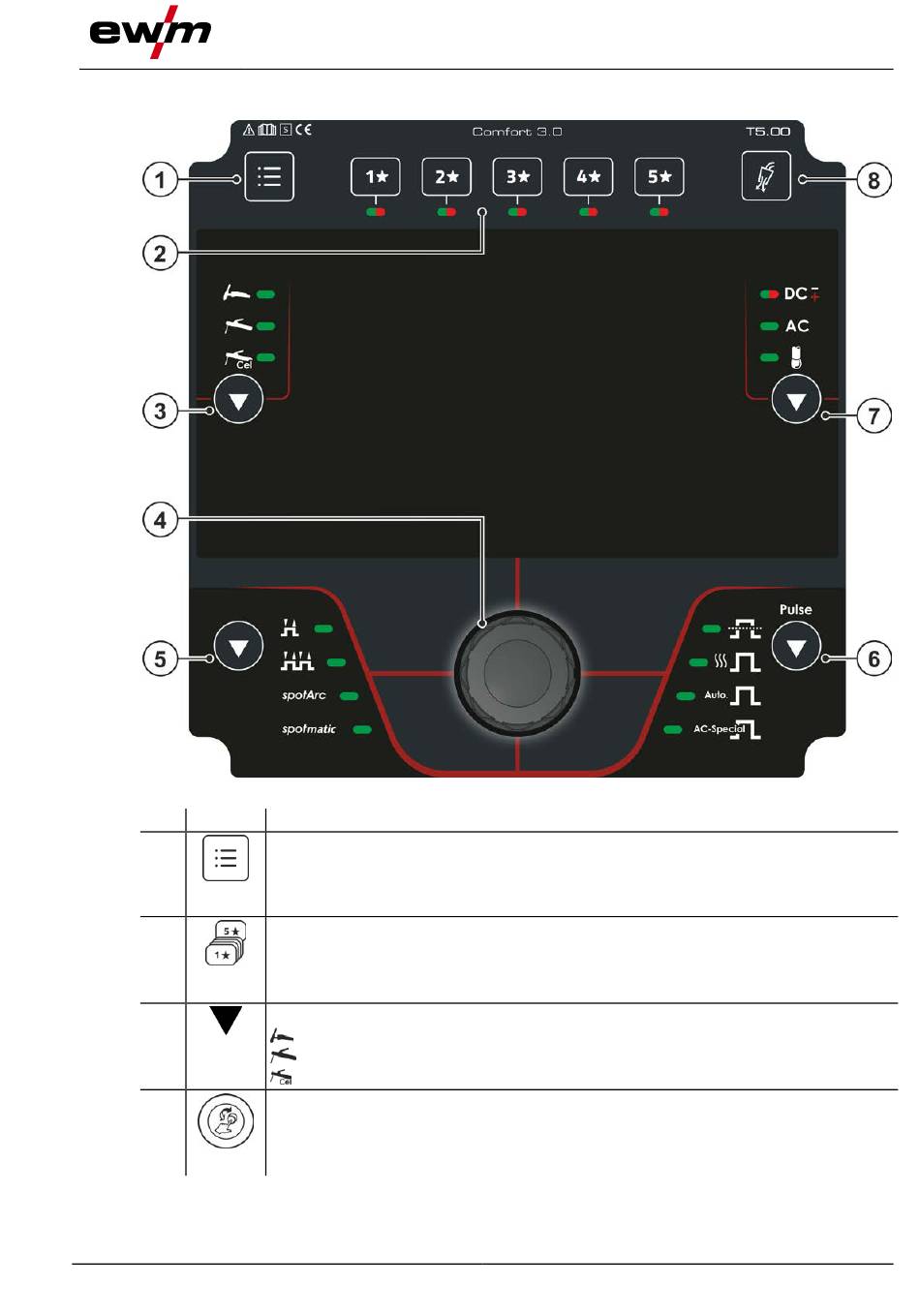

Figure 4-2
Overview of control sections
