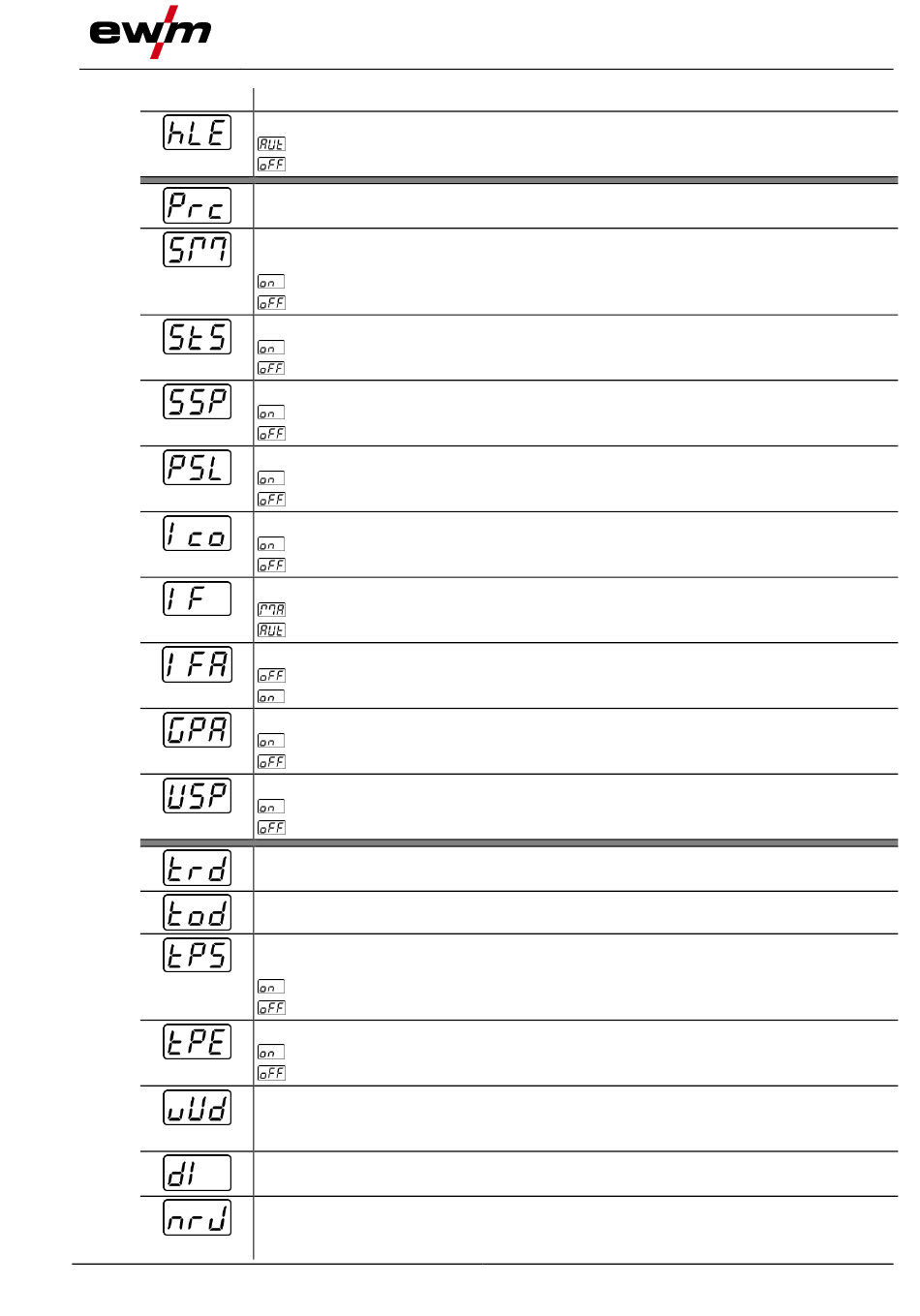

Display
099-00T500-EW501
30.1.2023
Setting/selection
Hold value (MMA)
------ Hold value is only displayed for a defined time (factory setting)
------ Function disabled
Process menu
spotmatic operating mode > see 5.1.8.5 chapter
Ignition by contact with the workpiece
------ Function enabled (ex works)
------ Function disabled
Spot time setting > see 5.1.8.5 chapter
------ Short spot time, setting range 5 ms to 999 ms, increments of 1 ms (ex works)
------ Long spot time, setting range 0.01 s to 20.0 s, increments of 10 ms (ex works)
Process activation setting > see 5.1.8.5 chapter
------ Separate process activation (ex works)
------ Permanent process activation
Pulsing in an upslope/downslope > see 5.1.12.4 chapter
------ Function enabled (factory setting)
------ Function disabled
Commutation optimisation (AC) > see 5.1.6.6 chapter
------ Function enabled
------ Function disabled (factory setting)
Waveform automatic (AC)
------ Manual setting of the waveform (factory setting)
------ Synergetic to current (requirement: Xconnect)
Waveform (AC) - advanced
------ Function disabled (factory setting)
------ Function enabled
Automatic gas post-flow function > see 5.1.1.1 chapter
------ Function on
------ Function off (factory setting)
Arc length restriction > see 5.3 chapter
------ Function switched on
------ Function switched off
Torch configuration menu
Set welding torch functions
Torch mode (ex works 1) > see 5.1.13.1 chapter
Alternative welding start – tapping start
Available from torch mode 11 (welding stop by tapping remains active).
------ Function enabled (ex works)
------ Function disabled
Tap end > see 5.1.13.2 chapter
------ Function enabled
------ Function disabled (factory setting)
Up/down speed > see 5.1.13.3 chapter
Increase value > rapid current change
Decrease value > slow current change
Current jump > see 5.1.13.4 chapter
Current jump setting in ampere
Get JOB number
Set maximum selectable JOBs for function torch Retox XQ (setting: 1 to 100, factory set-
ting 10).
Functional characteristics
1
1
Machine configuration menu
1
