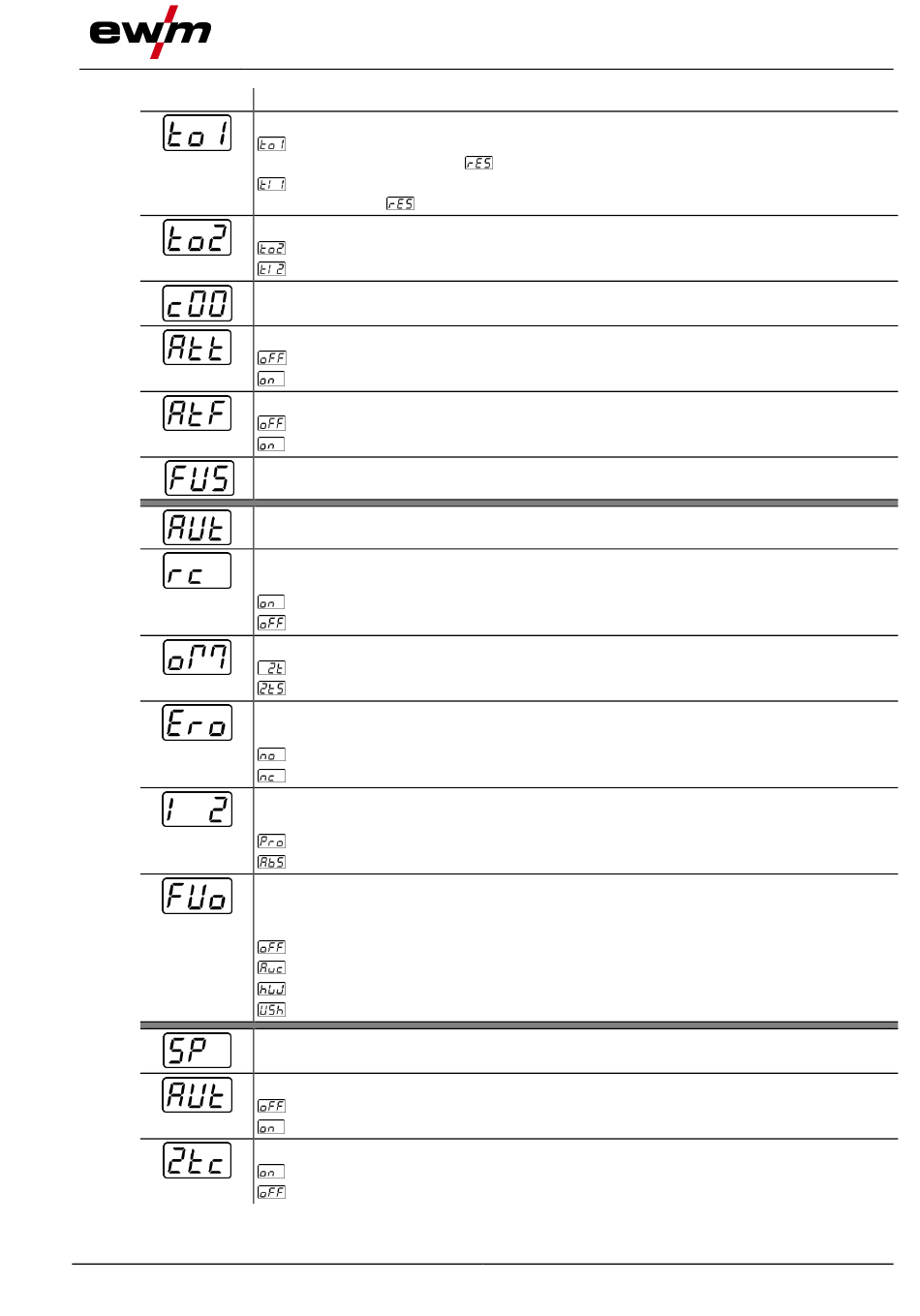

Display
099-00T500-EW501
30.1.2023
Setting/selection
Operating time/arc time (resettable)
------ Display of the resettable operating time in hours and minutes (can be reset u-
sing the parameter
------ Display of resettable arc time in hours and minutes (can be reset using the pa-
rameter )
Operating time/arc time (total)
------ Display of the operating time in hours and minutes (total)
------ Display of the arc time in hours and minutes (total)
List of sensors
Abfrage diverser Gerätesensoren (c00-c31)
Show warnings > see 7.1 chapter
------ Function disabled (ex works)
------ Function enabled
Fuse protection warning
------ Function disabled (factory setting)
------ Function enabled
Dynamic power adjustment > see 5.8 chapter
Automation menu
3
Automated/Manual (rC on/off) operating mode
Select machine/function control
------with external control voltages/signals
------with machine control
Operating mode switching via interface for automated welding
----- Non-latched
------ Special non-latched
Error output (relay)
3
Potential-free relay contact
------Relay contact for error message is open (factory setting)
------Relay contact for error message is closed
Setting for pulse pause current I2
The pulse pause current (I2) is set either relative or absolute to the main current (I1).
------Percentage setting (factory setting)
------Absolute setting
Function output
3
Potential-afflicted open-drain output that can emit various, adjustable signals through ac-
tive-low levels.
------ Switched off (factory setting)
------ Connection to AVC (Arc voltage control)
------ AC synchronisation or hot wire
------ Notification of a short circuit in the sensor voltage
Special parameters menu
Displaying and releasing the automation parameters
------ Function disabled (factory setting)
------ Function enabled
Non-latched operation (version C) > see 5.1.8.6 chapter
------ Function enabled
------ Function disabled (ex works)
Functional characteristics
).
3
3
Machine configuration menu
