AC welding

The welding of aluminium and aluminium alloys is made possible by the periodic change of polarity on the

tungsten electrode.

The negative pole (negative half-wave) of the tungsten electrode determines the penetration characteris-

tics and has a lower electrode load compared to the positive half-wave. The negative half-wave is also

called "cold half-wave".

Whereas the positive polarity, i.e. the positive half-wave, breaks up the oxide layer on the material

surface (the so-called cleaning effect). At the same time, the tungsten electrode tip melts into a ball (the

so-called balled end) due to the high thermal effect of the positive half-wave. The size of the balled end

depends on the length (balance setting > see 5.1.6.3 chapter) and the current amplitude (amplitude ba-

lance > see 5.1.6.4 chapter) of the positive phase. It should be noted that a balled end that is too large

may lead to an unstable and diffuse arc resulting in a low penetration profile. Therefore, the relationship

between the current amplitude and the balance of the task must be adjusted accordingly.

5.1.6.1

Selection

Display

for AC welding machines only.

099-00T500-EW501

30.1.2023

Setting/selection

Alternating current waveforms

------ Rectangular - Highest energy input (ex works)

------ Trapezoidal - An all-rounder, suitable for most applications

------ Sine - Low noise level

Functional characteristics

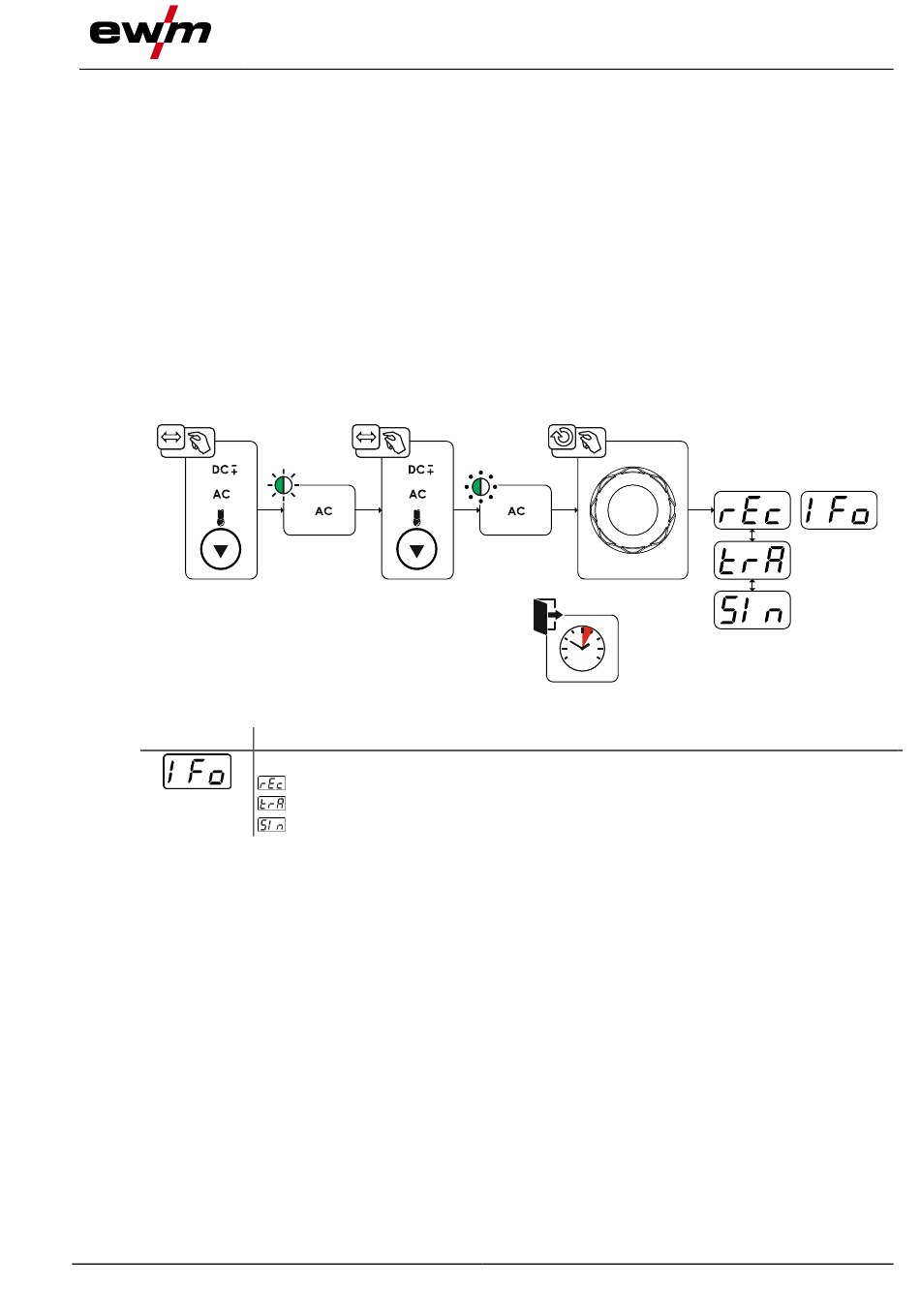

Figure 5-6

TIG welding
