Evaluating the
FEATURES
Simple power-up with on-board LDO regulators
Gain tuning and device bias adjustment with potentiometers
Option to bypass LDO regulators with connector jumpers
EVALUATION KIT CONTENTS
ADMV7320-EVALZ
Connector jumpers
EQUIPMENT NEEDED
+5 V dc and −5 V dc power supplies
Baseband signal generator
RF signal generator
E-band spectrum analyzer
WR-12 waveguide
GENERAL DESCRIPTION
The ADMV7320-EVALZ evaluation board incorporates the
ADMV7320
with low dropout (LDO) regulators, potentiometers,
and a waveguide back plate to allow quick and easy evaluation
of the ADMV7320. The LDO regulators allow the
to be powered on by ±5 V dc supplies. Potentiometers allow gates
tuning for various gain range.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADMV7320
81 GHz to 86 GHz, E-Band Upconverter SiP
ADMV7320
Rev. A | Page 1 of 8
ADMV7320-EVALZ

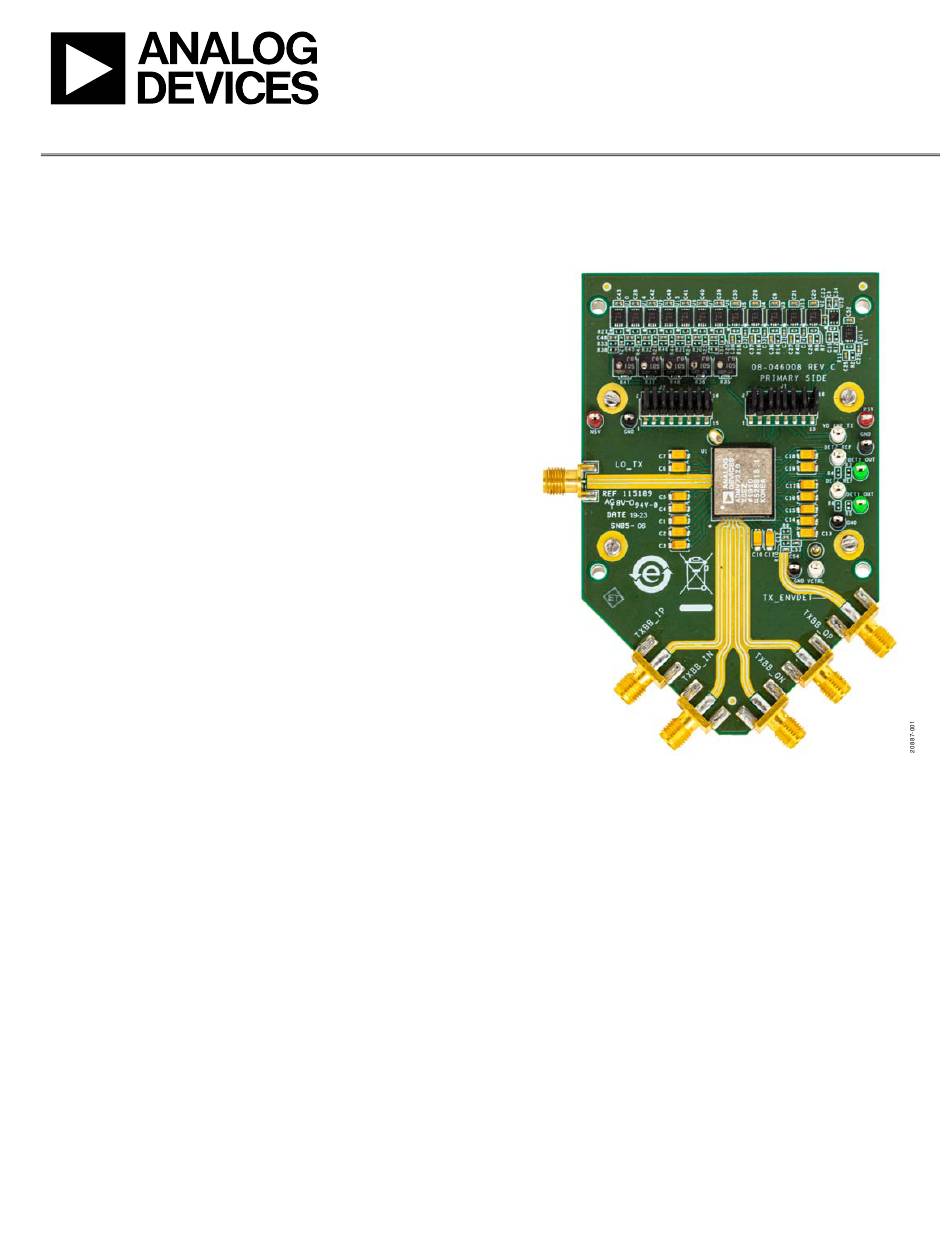

ADMV7320-EVALZ PHOTOGRAPH
The
ADMV7320
is a fully integrated system in package (SiP)
inphase/quadrature (I/Q) upconverter that operates from
81 GHz to 86 GHz.
For full details, see the
ADMV7320
consulted and used in conjunction with this user guide when
using the ADMV7320-EVALZ.
User Guide
UG-1597
Figure 1.
data sheet, which must be
