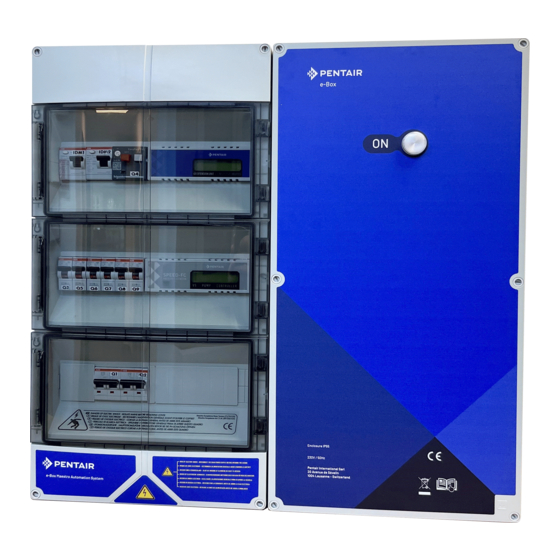

Summary of Contents for Pentair E-Box SOLEO Connect
- Page 1 INSTALLATION AND OPERATION GUIDE Version E-Box SOLEO Connect IMPORTANT SAFETY INSTRUCTIONS Read and follow all the instructions Keep these instructions WWW.PENTAIRPOOLEUROPE.COM...
-
Page 2: Table Of Contents
Installation and Operation Guide Version E-Box SOLEO Connect - Table of Contents Table of Contents General.................... Scope of this document................Version Management .................. Manufacturer identification (ID), product ........... Technical assistance procedure..............Copyright and Trademarks ................. Limitation of Liability .................. Declaration of conformity ................ - Page 3 Installation and Operation Guide Version E-Box SOLEO Connect - Table of Contents 4.5.3 Connection of the " PENTAIR VSF " filter pump..........4.5.4 Connection of the heat pump power supply (if installed)........4.5.5 Connection of the pool automatic shutter power supply (if equipped) ....
-
Page 4: General
Installation and Operation Guide Version E-Box SOLEO Connect - General General Scope of this document This document contains the information necessary for proper use of the product. It informs the user in order to guarantee the proper execution of the installation, use and maintenance procedures. -
Page 5: Copyright And Trademarks
Installation and Operation Guide Version E-Box SOLEO Connect - General Copyright and Trademarks All trademarks and logos Pentair are the property of Pentair. The brands, trademarks and logos of third parties are the property of their respective owners. © 2023 Pentair. All rights reserved. -
Page 6: Declaration Of Conformity
Installation and Operation Guide Version E-Box SOLEO Connect - General Declaration of conformity Guidelines – Harmonised standards Pentair International LLC - Avenue de Sevelin 20 - 1004 Lausanne - Suisse We declare that the product meets the guidelines and take responsibility for it: • 2014/53/EU. -
Page 7: Pentair Scan Application
Installation and Operation Guide Version E-Box SOLEO Connect - General Pentair Scan Application The mobile application Pentair Scan is an ideal tool for the daily work of the maintenance technician. The simple reading of the identification label present on the product, with a smart phone, gives instant access to all its information. -
Page 8: Security
Installation and Operation Guide Version E-Box SOLEO Connect - Security Security Definition of safety pictograms DANGER This combination of symbol and keyword indicates an imminently hazardous situation that will result in serious or fatal injury if not avoided. WARNING This combination of symbol and keyword indicates a potentially hazardous situation that can result in serious or fatal injury if not avoided. -
Page 9: Risks
Installation and Operation Guide Version E-Box SOLEO Connect - Security Risks All safety and protection instructions contained in this document must be followed in order to avoid injury, property damage or environmental, irremediable or temporary pollution. Likewise, all other regulations and measures for accident prevention and environmental... - Page 10 Installation and Operation Guide Version E-Box SOLEO Connect - Security WARNING Water temperatures above 37.7°C are a health hazard! Prolonged immersion in hot water can cause hyperthermia. Taking alcohol, drugs or medication is a factor aggravating the risk of hyperthermia in hot water baths and spas.
-
Page 11: Hardware
Installation and Operation Guide Version E-Box SOLEO Connect - Security Mandatory This installation and operation guide contains important information about the installation, operation and safety of this product! This guide should be provided to the owner and / or operator of this product. - Page 12 Installation and Operation Guide Version E-Box SOLEO Connect - Security Prohibition Do not mix sodium hypochlorite and muriatic acid (hydrocloric acid)! Do not mix out of water, chlorinated product and pH fix! Info Devices intended for any other use than use by a one person family, may require...
-
Page 13: Description
Installation and Operation Guide Version E-Box SOLEO Connect - Description Description Technical specifications E-Box Protection rating IP44 System pre-wiring SB-PF-ENS-005E Operating voltage 230V Input power supply frequency 50 Hz Power 14 kW max Number of inputs Number of outputs 8x (230V/16A max) -
Page 14: Congestion Diagram
Installation and Operation Guide Version E-Box SOLEO Connect - Description Congestion diagram E-Box Position of cable passages 14 / 64 Ref. SB-CU-IMP-069EB / A - 12.05.2023... - Page 15 Installation and Operation Guide Version E-Box SOLEO Connect - Description Speedeo Connect and Soleo (both boxes have the same measurements) Speedeo Connect Soleo Ref. SB-CU-IMP-069EB / A - 12.05.2023 15 / 64...
-
Page 16: Product Description
Installation and Operation Guide Version E-Box SOLEO Connect - Description Product Description 3.3.1 General operation The diagram below describes an example of a typical installation of a fully automated and remotely controlled swimming pool. Refer to the relevant item for more information about it. -
Page 17: The E-Box
WiFi network of the user's internet box, or if necessary with the addition of the Gateway box). Your E-Box SOLEO Connect does not require any additional electrical components. No intervention is necessary inside your E-Box except the connection to the terminal blocks, in order to carry out the connections of the various devices that constitute the installation. -
Page 18: The Speedeo Connect Box
Installation and Operation Guide Version E-Box SOLEO Connect - Description 3.3.3 The Speedeo Connect box The SPEEDEO controls and automatically calculates the operating time of the equipment connected to the system, it is the controller of the installation. It receives the orders transmitted by the remote control device or by the internet and communicates with the device concerned. -
Page 19: Internet Gateway Relay (Option)
You must be connected to the internet through your box in order to be able to control and ask your installation questions. To be functional, the Gateway must be connected to your internet "box". It is necessary to download the Pentair Home or Pentair Pro to connect to the installation. Radio antenna μUSB/USB cable... -
Page 20: Installation
In the event of a failure or malfunction, before performing any repair work on the device, ensure that the E-Box SOLEO Connect is disconnected from the power supply: 1. Be careful when unpacking and during subsequent handling, as the weight is likely to cause property and personal injury in the event of an accidental impact. -
Page 21: Package Contents
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Package contents • 1 E-Box • 4 cables for box connections to the E-Box • 1 Intelliflo VSF pump control cable • Cable glands set for installation of cables in the E-Box •... -
Page 22: Accessories Provided Depending On The Options Chosen
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Accessories provided depending on the options chosen 4.3.1 Analysis chamber Supplied with the installation kit, it must be installed as close as possible to the Probe Unit box, and receives the measurement probes provided: RedOx, pH and conductivity. -
Page 23: Pool Water Treatment Liquid Solution Injection Metering Pump
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.3.2 Pool water treatment liquid solution injection metering pump The solution injection metering pump is supplied with the installation kit, it must be installed separately from the electrical box, integral with the wall of the technical room, in accordance with its instructions. -
Page 24: Salt Electrolysis Cell For Chlorine Production 13 Or 27 G/H (Optional)
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.3.3 Salt electrolysis cell for chlorine production 13 or 27 g/h (optional) Connection cable This equipment is intended for the production of chlorine from swimming pool water. The salt electrolysis cell is provided as an option with the installation kit, it must be installed bypass or online (max accepted flow rate of 18 m... -
Page 25: Principle Of Control Through Wifi Or Lora Radio
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Principle of control through WiFi or LoRa radio Info Once electrically powered, go to the menu of the Speedeo Connect to establish the connection with the WiFi network of the house or the Gateway (see the manual of the Gateway in case of use of it). - Page 26 Installation and Operation Guide Version E-Box SOLEO Connect - Installation Info In the event of a connection problem with the technical room, the installation of a WiFi network extension module may also be used. If WiFi is not present in the technical room, the addition of the Gateway box (optional) is then necessary in order to be able to connect the SOLEO and the SPEEDEO Connect to the internet.
- Page 27 1. Make the electrical connections according to your configuration and then start your Speedeo Connect. 2. Open the Pentair Home under your account. In the set-up menu of a new device, choose Speedeo Connect, on the next screen which asks you if you are using a Gateway to connect your SPEEDEO Connect to the WiFi, select “No, I am going to connect SPEEDEO directly to...
-
Page 28: E-Box
Installation and Operation Guide Version E-Box SOLEO Connect - Installation E-Box 4.5.1 Wall mounting Tools Required for Installation You will need the following tools in order to perform the installation in the best possible conditions: • Flat Screwdriver Set • Drill Bit Set •... - Page 29 Installation and Operation Guide Version E-Box SOLEO Connect - Installation 6. Insert one dowel into each hole. 7. Secure theE-Box (6) with four screws (5). Info The quick-connect cables are connected to the bottom of theE-Box (7). Install the cable ducts provided according to the diameter and number of cables used.
-
Page 30: Connections
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.5.2 Connections INTELLICHLOR Quick Connection SOLEO Power supply connector SOLEO Control connector SPEEDEO CONNECT Power supply connector SPEEDEO CONNECT Control connector 230V socket INTELLICHLOR Cell connection SOLEO Power supply connector... - Page 31 Installation and Operation Guide Version E-Box SOLEO Connect - Installation Main protection with 30 mA differentials Pool Light Transformer 12V/300VA Transformer used for the Intellichlor electrolyser 8A/230V free socket 5A/230V robot socket Equipment and socket protection circuit breakers Circuit breaker for protecting the electrical supply of the swimming pool flap Heat pump power supply protection circuit breaker Ref.
- Page 32 Installation and Operation Guide Version E-Box SOLEO Connect - Installation 1. High voltage connection (230V) 2. Low voltage connection (12/24V) Terminal block 1: High voltage Terminal block 2: Low voltage connection (230V) [ → Page 33] connection (12-24 V) [ → Page 34] 230V minimum power compatible cables = R02V (3x1.5mm²...
- Page 33 Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.5.2.1 Terminal block 1: High voltage connection (230V) Positions and markings of the connection terminals: N-L1 E-Box Main Power Supply (230 V) Connection of the heat pump power supply (230 V 20A) Variable Speed Pump Supply Connection (230 V 15A)
- Page 34 Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.5.2.2 Terminal block 2: Low voltage connection (12-24 V) Positions and markings of the connection terminals: 19-20 Dry contact connection (max 8A) for the control of a light network (through Output 3 of the SPEEDEO Connect to be configured in the attributable menu).
-
Page 35: Connection Of The " Pentair Vsf " Filter Pump
The control of the operation of the heat pump must be connected to terminals 21-22 (refer to the instructions for the heat pump used). The connection of the BUS control cable for a Pentair heat pump (Invertemp) must be carried out on the RS-485 terminal blocks present in the SPEEDEO Connect, and do not use terminal blocks 21-22. -
Page 36: Connection Of The Pool Automatic Shutter Power Supply (If Equipped)
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.5.5 Connection of the pool automatic shutter power supply (if equipped) The connection of the supply phase, the neutral and the earth must be made through the connection terminal block according to terminals 5 and 6 (for the earth connection: proceed to the connection on the dedicated terminal block). -
Page 37: Soleo And Speedeo Connect
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Soleo and Speedeo Connect 4.6.1 Wall mounting Caution - material The device must not be installed outdoors, preferring instead a technical room inaccessible to children. • Ensure that the bracket on which the appliance is installed can support a load of 5 kg. -
Page 38: Hydraulic And Electrical Installation
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.6.2 Hydraulic and electrical installation The diagram below illustrates the electrical and hydraulic connections of the Probe Unit with the analysis chamber. Mandatory It is imperative to isolate the bypass by closing both valves before changing a probe. -
Page 39: Installation Of Probes
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Install the probes of the analysis The SOLEO is delivered with a probe to chamber having previously removed the measure the water temperature. A lower part (the transparent bowl). second probe (optional) can be installed to measure the air temperature. - Page 40 Built-in flow sensor to be connected to input IN (1 to 4) if desired or necessary. Ø10 Direction of water flow Info Only the Pentair probes are compatible and guarantee the correct operation of the device. 40 / 64 Ref. SB-CU-IMP-069EB / A - 12.05.2023...
- Page 41 Installation and Operation Guide Version E-Box SOLEO Connect - Installation Installing the water temperature sensor Install the water temperature probe preferably before the pump filtration system. 1. Drill the PVC pipe (Ø50-70 mm) to make a hole with a diameter of 10 mm.
-
Page 42: Connections
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.6.4 Connections 4.6.4.1 Soleo Connections Quick connection to the E-Box Connection of measurement probes: • pH • RedOx Chlorine • Water temperature • Analytical chamber flow switch 4.6.4.2 Probe connections (pH + RedOx + temperature) 1. - Page 43 Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.6.4.3 Speedeo Connect Connections Input IN1 or IN2 shutter contact closed Quick connection to the E-Box Refer to the Speedeo Connect manual for multiple assignments: • Automatic wash valve • Extra pump •...
- Page 44 Connect to the power cable to the lighting transformer so as to create a switch Info Control will be carried out through the Pentair Home or Pro through Output 3 of the SPEEDEO Connect (see the SPEEDEO Connect manual) assigned to the pool lighting function.
- Page 45 Installation and Operation Guide Version E-Box SOLEO Connect - Installation Output 2: Connection example Connecting a Pneumatic Push/Pull Valve for Filter Washing 1. Connect the valve according to the diagram below. 2. In the menu "Outputs > Output 2", through the Installation menu (see the SPEEDEO Connect manual), select the output Output 2 "Filter wash".
-
Page 46: Control Of Variable Speed Pumps
Installation and Operation Guide Version E-Box SOLEO Connect - Installation Control of variable speed pumps 4.7.1 PENTAIR IntelliFlo VSF and IntelliFlo 3 Info Set the appropriate Speed 1 (Frost Free), Speed 2 (Eco), Speed 3 (Normal) and Speed 4 (Max) speeds on the Drive (black control box on the Intelliflo pump). -
Page 47: Pentair Vs2 And Vs2M
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.7.2 PENTAIR VS2 and VS2m Info Set the appropriate Speed 1 (Frost Free), Speed 2 (Eco), Speed 3 (Normal) and Speed 4 (Max) speeds on the Drive (black control box on the Intelliflo pump). -
Page 48: Single Speed Pump
Installation and Operation Guide Version E-Box SOLEO Connect - Installation 4.7.4 Single speed pump Info Connects directly into the E-Box and is protected by the thermal circuit breaker 4/6.3A. Connection • On terminal block 7 and 8 of theE-Box. Depending on the power of the pump, adjust the thermal circuit breaker installed in theE-Box to the calibre necessary for the consumption of your filtration pump. -
Page 49: Programming
Installation and Operation Guide Version E-Box SOLEO Connect - Programming Programming Presentation of menus on Soleo • Refer to the full SOLEO manual Filtration Filtration: AUTO, SHOCK, TIMER, OFF, ON Start: 07:00 Fine: Auto Mode: Eco, Normal, Turbo ORP priority: ON, off Frost free: +3°C... - Page 50 Installation and Operation Guide Version E-Box SOLEO Connect - Programming Mode: AUTO, OFF Instruction: 7.2 Type: pH-, pH+ Stop threshold: 3°C Injection: 15 s (every 15 min) Max volume: 0.5 l/d Alert range: 0.2 (if setpoint is 7.2, min. alert = 7.2 - 0.2 = 7.0, max.
-
Page 51: Presentation Of Menus On Speedeo Connect
Installation and Operation Guide Version E-Box SOLEO Connect - Programming Presentation of menus on Speedeo Connect • Refer to the full SPEEDEO manual Connect Duration Filtration (even if connected to the SOLEO, SPEEDEO Connect is the main one). Filtration: AUTO, SHOCK, TIMER, OFF, ON... - Page 52 Installation and Operation Guide Version E-Box SOLEO Connect - Programming Washing Filter Manual wash: "Valid" to start washing Filtration: 100 h Washing: 70 s Rinsing: 20 s Car wash: YES, NO Temperatures Heating Heating: AUTO, OFF Instruction: 25°C Mode: Smart/Eco/Boost (only with RS-485 connection)
- Page 53 Installation and Operation Guide Version E-Box SOLEO Connect - Programming Outputs S1: LIGHTING, NC, CHOCK SEM., OTHER, FILTER WASH, REGUL., HEATING, SOLAR S2: LIGHTING, NC, CHOCK SEM., OTHER, FILTER WASH, REGUL., HEATING, SOLAR S3: LIGHTING, NC, CHOCK SEM., OTHER, FILTER WASH, REGUL.,...
- Page 54 Installation and Operation Guide Version E-Box SOLEO Connect - Programming Cloud Connection Connection: WiFi, Gateway WiFi information PNRS1SPD100000xxxx Server connected RSSI: -40dBm WiFi v°: 01:03 WiFi provisioning Provisioning Lauch App & select PNRS1SPD100000xxxx Provisioning mode Gateway Gateway pairing Pairing with Gateway PNRS1SPD100000xxxx, Pairing done History (ESC key from main menu) CURRENT DAY: Filtration: Output 1, Output 2, Output 3...
-
Page 55: Maintenance
Installation and Operation Guide Version E-Box SOLEO Connect - Maintenance Maintenance Maintenance Clean the outside of the various items with a dry microfiber cloth. Do not use solvents, abrasives or acids. Overwintering of Soleo Connect (Water temperature < +3.0°C) • Over-wintering: the forced operation of the pump prevents the formation of ice on the surface. -
Page 56: Cleaning The Ph Or Redox Probe
Installation and Operation Guide Version E-Box SOLEO Connect - Maintenance Cleaning the pH or RedOx probe Mandatory Wearing glasses is mandatory! Info Deposition of scale or suspended elements in the basin may occur. The probes are fragile measuring elements, they should be cleaned carefully. - Page 57 Installation and Operation Guide Version E-Box SOLEO Connect - Maintenance Chemical cleaning of the probe (no element must be present in the protective cage) 1. Soak the tip of the probe for at least 10 minutes in white vinegar. 10 min 2.
-
Page 58: Spare Part
Installation and Operation Guide Version E-Box SOLEO Connect - Spare part Spare part Genuine parts, necessary for the maintenance of your device Pentair, are available at your dealers. SB Item Code Description Diagram INTP-5210 PH probe 500 mm and standard solutions pH4 &... -
Page 59: Disposal
This will help reduce the impact on the environment, health and safety, and also promote recycling. Pentair does not collect used products for recycling. Contact your local recycling centre. for more information. -
Page 60: Annexes
Installation and Operation Guide Version E-Box SOLEO Connect - Annexes Annexes Electric diagrams of the E-Box SOLEO Connect 60 / 64 Ref. SB-CU-IMP-069EB / A - 12.05.2023... - Page 61 Installation and Operation Guide Version E-Box SOLEO Connect - Annexes Ref. SB-CU-IMP-069EB / A - 12.05.2023 61 / 64...
- Page 62 Installation and Operation Guide Version E-Box SOLEO Connect - Annexes 62 / 64 Ref. SB-CU-IMP-069EB / A - 12.05.2023...
- Page 63 Installation and Operation Guide Version E-Box SOLEO Connect - Annexes Ref. SB-CU-IMP-069EB / A - 12.05.2023 63 / 64...
- Page 64 WWW.PENTAIRPOOLEUROPE.COM All Pentair trademarks and logos are the property of Pentair. The brands, trademarks and logos of third parties are the property of their respective owners. © 2023 Pentair. All rights reserved.
