DD_MRS350_2010_Flyer:Layout 1
MRS-350BL
MRS-350BL
Reverse
Osmosis
System from
Everpure
• Is there power to
the outlet?
• Is the RO plugged in?
• Are the valves on the RO and the tank open?
• Is there pressure on the right pressure gauge? Is it below
30 psi? If it is above 30, the pump will not run.
• Is there pressure on the left side gauge when the unit
is running?
• Is the motor running?
• Is there water flowing down the drain?
• Is there water flowing from the rinse valve?
Foodservice
12/10/09
11:02 AM
Page 1

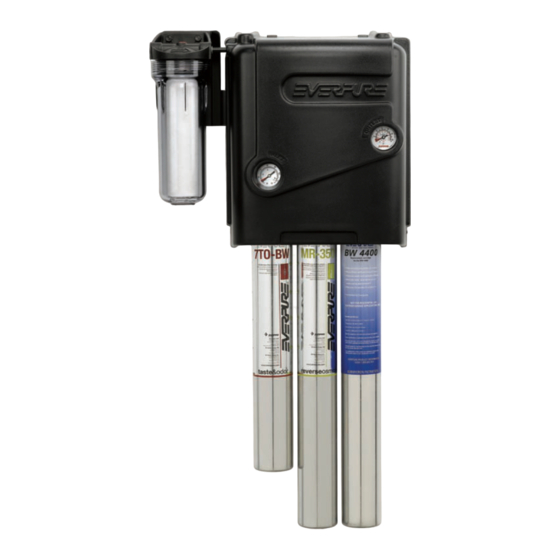

MRS-350BL
with Optional Prefilter (shown)
Part Number: EV9970-20
" 8
®
" 8
2
. 0
" 5
1
" 5
O
U
T
L
E
T
N I
L
E
T
3
" 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair EVERPURE MRS-350BL
Summary of Contents for Pentair EVERPURE MRS-350BL
- Page 1 DD_MRS350_2010_Flyer:Layout 1 12/10/09 11:02 AM Page 1 MRS-350BL MRS-350BL Reverse MRS-350BL with Optional Prefilter (shown) Part Number: EV9970-20 Osmosis System from " 8 " 8 ® Everpure " 5 " 5 " 8 • Is there power to the outlet? •...
-
Page 2: Operating Specifications
Installation and Operation Guide MRS-100, MRS-225, MRS-350, MRS-100CC, MRS-225CC, MRS-350CC, MRS-350BL Reverse Osmosis Mineral Reduction System For Foodservice Applications IntroductIon The Everpure MRS (Mineral Reduction System) is a pre-engineered, pre-assembled Reverse Osmosis (RO) system designed to provide high purity water for many applications, such as premium espresso, coffee and blended beverages, to name a few. -
Page 3: Unpacking And Inspection
noteS: • Please read this manual prior to installing and operating the figure 1. Back view of Prefilter bracket. system. • Incoming water supplies that do not meet these requirements Prefilter bolts may need additional pre-treatment prior to the system. System performance may be affected if requirements are not met, including system output production and cartridge change-out frequency. - Page 4 6. Attach processor to the vertical surface with screws and figure 3. No Prefilter anchors designed for the mounting surface material. WARNING Do not use screws smaller than #12 for mounting the processor. WARNING Mounting surface may require reinforcement to support processor safely.
-
Page 5: Electrical Connections
Locate the 3/8" OD tubing that connects to the storage tank. WARNING Refer to Reject to Drain, Maximum under RO Disconnect the end which connects to the fitting at the Production in the Performance Table (page 5) to determine the processor. - Page 6 PerforMance* SectIon ro Production MrS-100 MrS-225 MrS-100cc MrS-225cc MrS-350 MrS-350cc MrS-350bl † Gallons per Day 100 gpd 225 gpd 100 gpd 225 gpd 350 gpd 350 gpd 350 gpd Gallons per Hour 4.2 gph 9.4 gph 4.2 gph 9.4 gph 15.6 gph 15.6 gph 15.6 gph...
-
Page 7: Maintenance Section
MaIntenance SectIon Performance Log Inlet outlet flow drain flow Pressure/temp Intlet tdS outlet tdS test date (ml/min) (ml/min) (psi/°f) (ppm) (ppm) % reduction noteS: 3123-42b IO Guide MRS - 112108.indd 6 9/11/09 11:15:30 AM... -
Page 8: Troubleshooting Guide
troubleShootIng guIde Problem Possible cause remedy Insufficient product water a. Pre-filter cartridge plugged. Replace pre-filter cartridge. during normal operating TO cartridge plugged. Replace TO cartridge. periods. RO cartridge plugged. Replace RO cartridge. Insufficient system inlet pressure. Check/repair booster pump and inlet line. e. - Page 9 figure 6. Parts Diagram NOTE: See Page 7 for Replacement Cartridges – KEY numbers: 26, 27 and 28 rePlaceMent PartS key Part no. deScrIPtIon key Part no. deScrIPtIon EV312236 Plate, Mounting, MRS EV307587 Rigid Tube EV309646 Head, BW, 3/8" JG EV311574 BW RO Head Sub Assy W/ Tabs EV312299...
