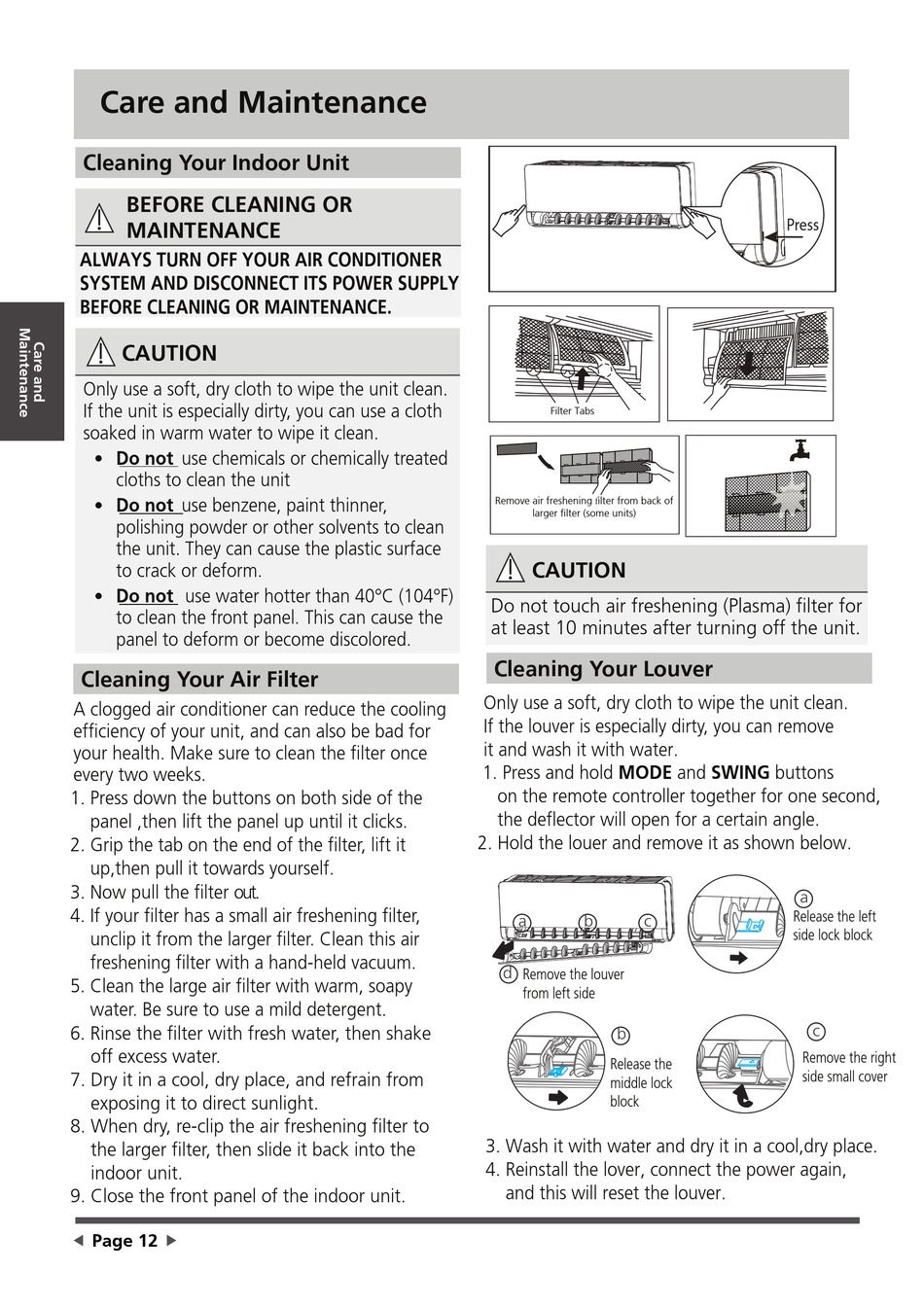

Care And Maintenance - Comfee Libeccio CF-XT09A IU Owner's Manual & Installation Manual

Care and Maintenance

Cleaning Your Indoor Unit
BEFORE CLEANING OR
MAINTENANCE
ALWAYS TURN OFF YOUR AIR CONDITIONER
SYSTEM AND DISCONNECT ITS POWER SUPPLY
BEFORE CLEANING OR MAINTENANCE.
CAUTION
Only use a soft, dry cloth to wipe the unit clean.
If the unit is especially dirty, you can use a cloth
soaked in warm water to wipe it clean.
Do not use chemicals or chemically treated
•
cloths to clean the unit
Do not use benzene, paint thinner,
•
polishing powder or other solvents to clean
the unit. They can cause the plastic surface
to crack or deform.
Do not use water hotter than 40°C (104°F)
•
to clean the front panel. This can cause the
panel to deform or become discolored.
Cleaning Your Air Filter
A clogged air conditioner can reduce the cooling
efficiency of your unit, and can also be bad for
your health. Make sure to clean the filter once
every two weeks.
1. Press down the buttons on both side of the
panel ,then lift the panel up until it clicks.
2. Grip the tab on the end of the filter, lift it
up,then pull it towards yourself.
3. Now pull the filter out.
4. If your filter has a small air freshening filter,
unclip it from the larger filter. Clean this air
freshening filter with a hand-held vacuum.
5. Clean the large air filter with warm, soapy
water. Be sure to use a mild detergent.
6. Rinse the filter with fresh water, then shake
off excess water.
7. Dry it in a cool, dry place, and refrain from
exposing it to direct sunlight.
8. When dry, re-clip the air freshening filter to
the larger filter, then slide it back into the
indoor unit.
9. Close the front panel of the indoor unit.
Page 12
 
Filter Tabs
Remove air freshening filter from back of
larger filter (some units)
CAUTION
Do not touch air freshening (Plasma) filter for
at least 10 minutes after turning off the unit.
Cleaning Your Louver
Only use a soft, dry cloth to wipe the unit clean.
If the louver is especially dirty, you can remove
it and wash it with water.
1. Press and hold MODE and SWING buttons
on the remote controller together for one second,
the deflector will open for a certain angle.
2. Hold the louer and remove it as shown below.
a b c
d
Remove the louver
from left side
b
Release the
middle lock
block
3. Wash it with water and dry it in a cool,dry place.
4. Reinstall the lover, connect the power again,
and this will reset the louver.
Press
a
Release the left
side lock block
c
Remove the right
side small cover
