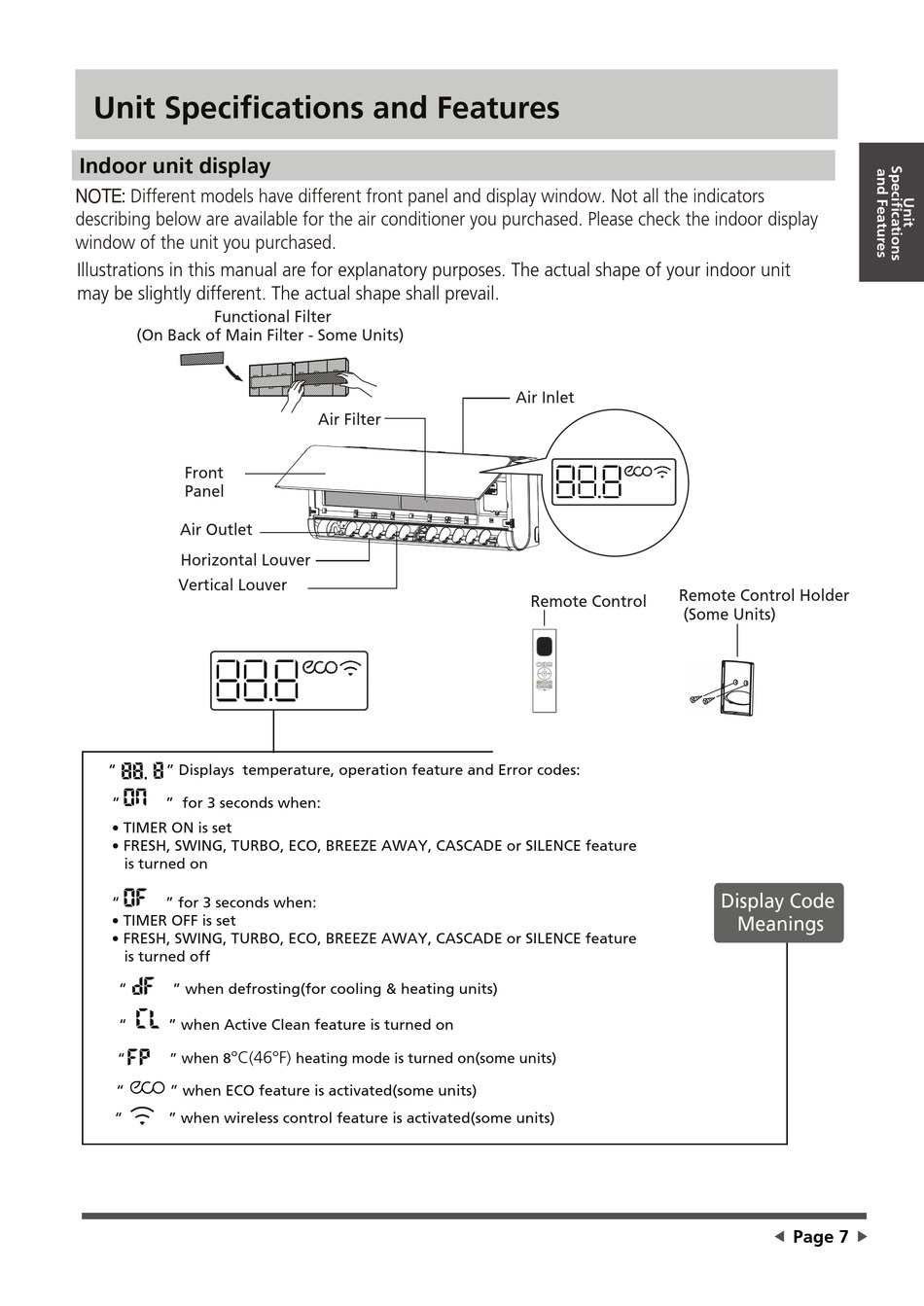

Unit Specifications and Features

Indoor unit display

NOTE: Different models have different front panel and display window. Not all the indicators
describing below are available for the air conditioner you purchased. Please check the indoor display
window of the unit you purchased.
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit
may be slightly different. The actual shape shall prevail.
Functional Filter
(On Back of Main Filter - Some Units)
Front
Panel
Air Outlet
Horizontal Louver
Vertical Louver
" " Displays temperature, operation feature and Error codes:
" " for 3 seconds when:
• TIMER ON is set
• FRESH, SWING, TURBO, ECO, BREEZE AWAY, CASCADE or SILENCE feature
is turned on
" " for 3 seconds when:
• TIMER OFF is set
• FRESH, SWING, TURBO, ECO, BREEZE AWAY, CASCADE or SILENCE feature
is turned off
" " when defrosting(for cooling & heating units)
" " when Active Clean feature is turned on
°C(46°F)
" " when 8
" " when ECO feature is activated(some units)
" " when wireless control feature is activated(some units)
Air Filter
heating mode is turned on(some units)
Air Inlet
Remote Control Holder
Remote Control
(Some Units)
Display Code
Meanings
Page 7
 
