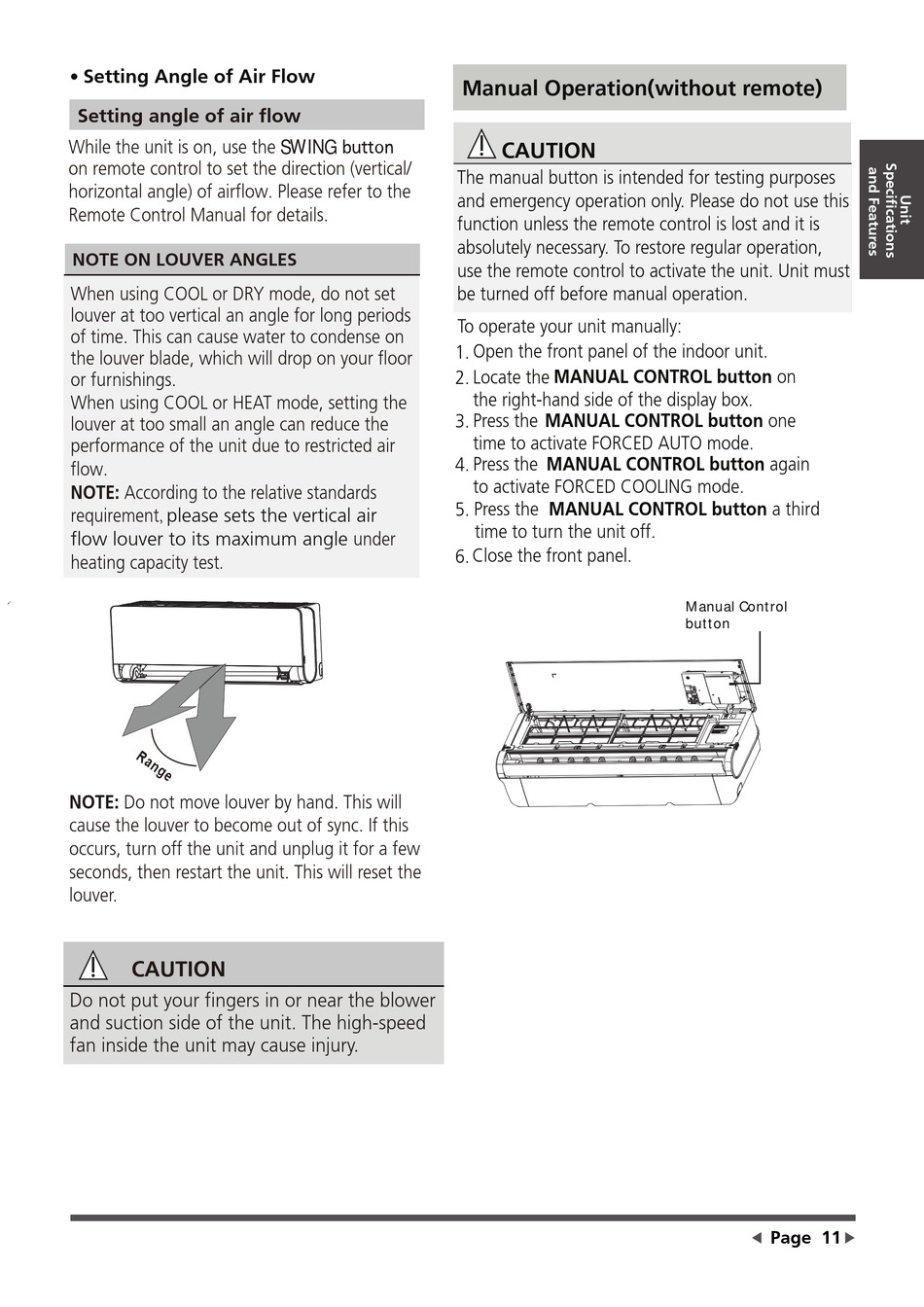

Setting Angle of Air Flow
•
Setting angle of air flow
While the unit is on, use the SWING button
on remote control to set the direction (vertical/
horizontal angle) of airflow. Please refer to the
Remote Control Manual for details.
NOTE ON LOUVER ANGLES
When using COOL or DRY mode, do not set
louver at too vertical an angle for long periods
of time. This can cause water to condense on
the louver blade, which will drop on your floor
or furnishings.
When using COOL or HEAT mode, setting the
louver at too small an angle can reduce the
performance of the unit due to restricted air
flow.
NOTE: According to the relative standards
requirement, please sets the vertical air
flow louver to its maximum angle
heating capacity test.
NOTE: Do not move louver by hand. This will
cause the louver to become out of sync. If this
occurs, turn off the unit and unplug it for a few
seconds, then restart the unit. This will reset the
louver.
CAUTION
Do not put your fingers in or near the blower
and suction side of the unit. The high-speed
fan inside the unit may cause injury.

Manual Operation(without remote)

CAUTION
The manual button is intended for testing purposes
and emergency operation only. Please do not use this
function unless the remote control is lost and it is
absolutely necessary. To restore regular operation,
use the remote control to activate the unit. Unit must
be turned off before manual operation.
To operate your unit manually:
1. Open the front panel of the indoor unit.
2. Locate the MANUAL CONTROL button on
the right-hand side of the display box.
3. Press the MANUAL CONTROL button one
time to activate FORCED AUTO mode.
4. Press the MANUAL CONTROL button again
to activate FORCED COOLING mode.
5. Press the MANUAL CONTROL button a third
time to turn the unit off.
under
6. Close the front panel.
Manual Control
button
Page 11
 
