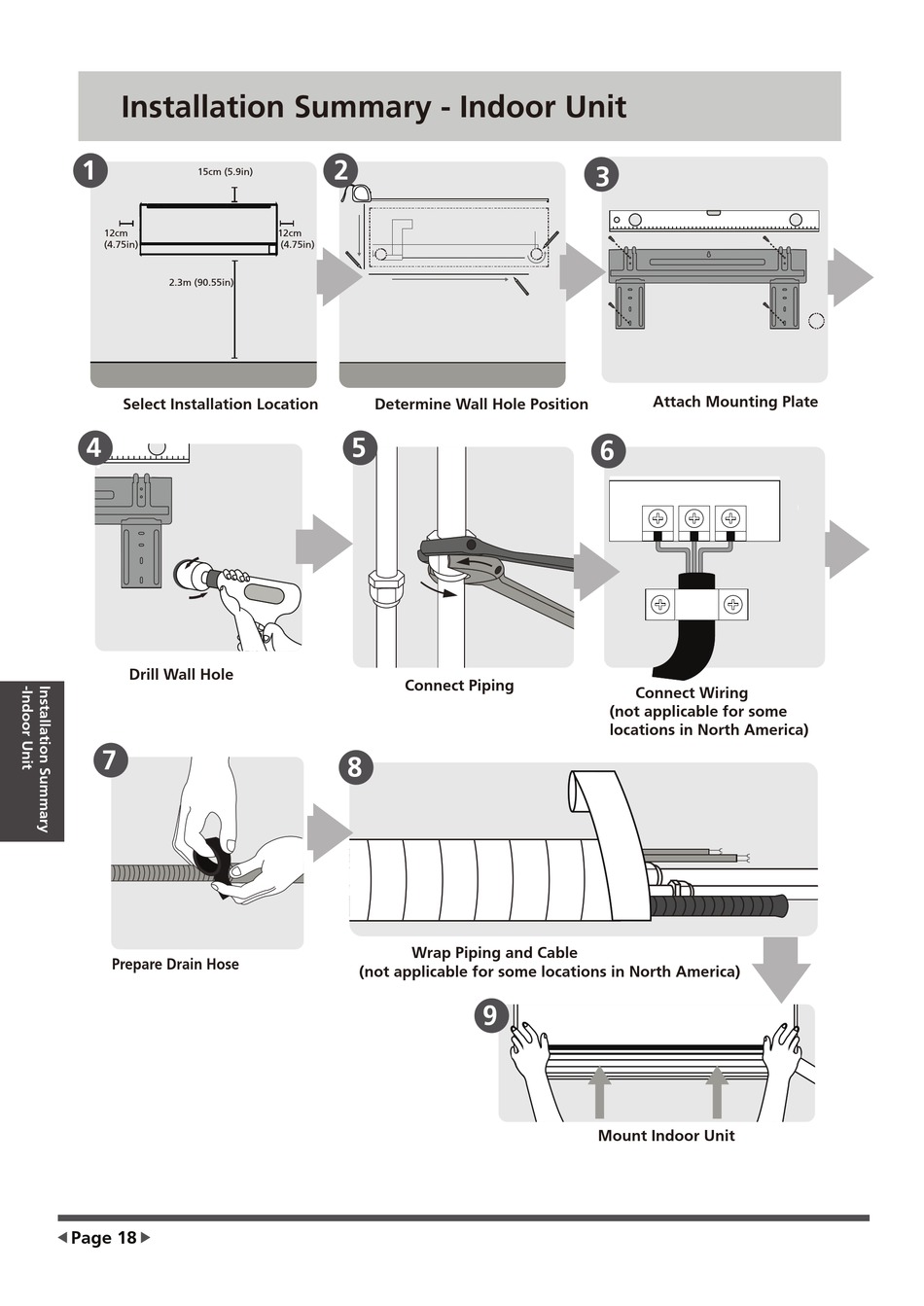

Installation Summary - Indoor Unit
1
15cm (5.9in)
12cm
(4.75in)
2.3m (90.55in)
Select Installation Location
4
4
Drill Wall Hole
7
Prepare Drain Hose
Page 18
2
12cm
(4.75in)
Determine Wall Hole Position
5
Connect Piping
8
Wrap Piping and Cable
(not applicable for some locations in North America)
3
Attach Mounting Plate
6
Connect Wiring
(not applicable for some
locations in North America)
9
8
STEP
Mount Indoor Unit
