112 Spectra 12000 User Guide
You can also configure the drives using the Drive Configuration screen.
To do this:
1. Tap the Drives button on the Configuration Toolbar. This opens the
Drive Configuration screen (Figure 8-6).
2. Tap the drive you want to configure and tap Configure. The Drive
Configuration window appears, displaying the following:
Š
Drives detected by the library.
Š
SCSI bus on which the drive resides, and the drive's SCSI ID.
Š
QIP associated with the drive.
Š
Drive emulation assigned to each pair of drives.
Š
Drive firmware.
Š
Buttons allowing you to scroll through more drives.
Š
Buttons you can use to remove, replace, add and configure the
drives. To configure a drive, select the drive and tap Configure.
Š
Button you can use to unlock the door.

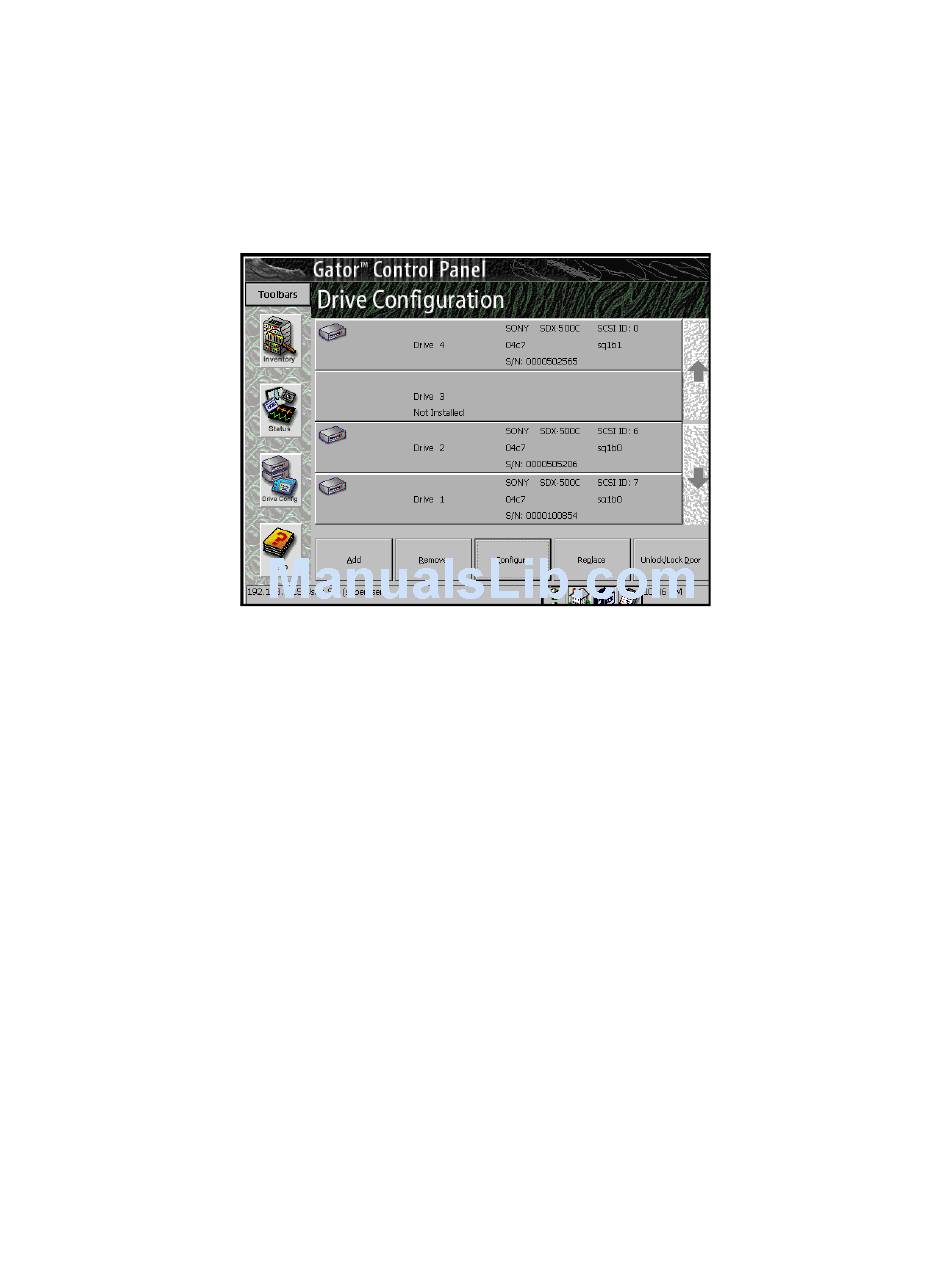

Figure 8-6 Drive Configuration screen.
