Design and function

TIG welding

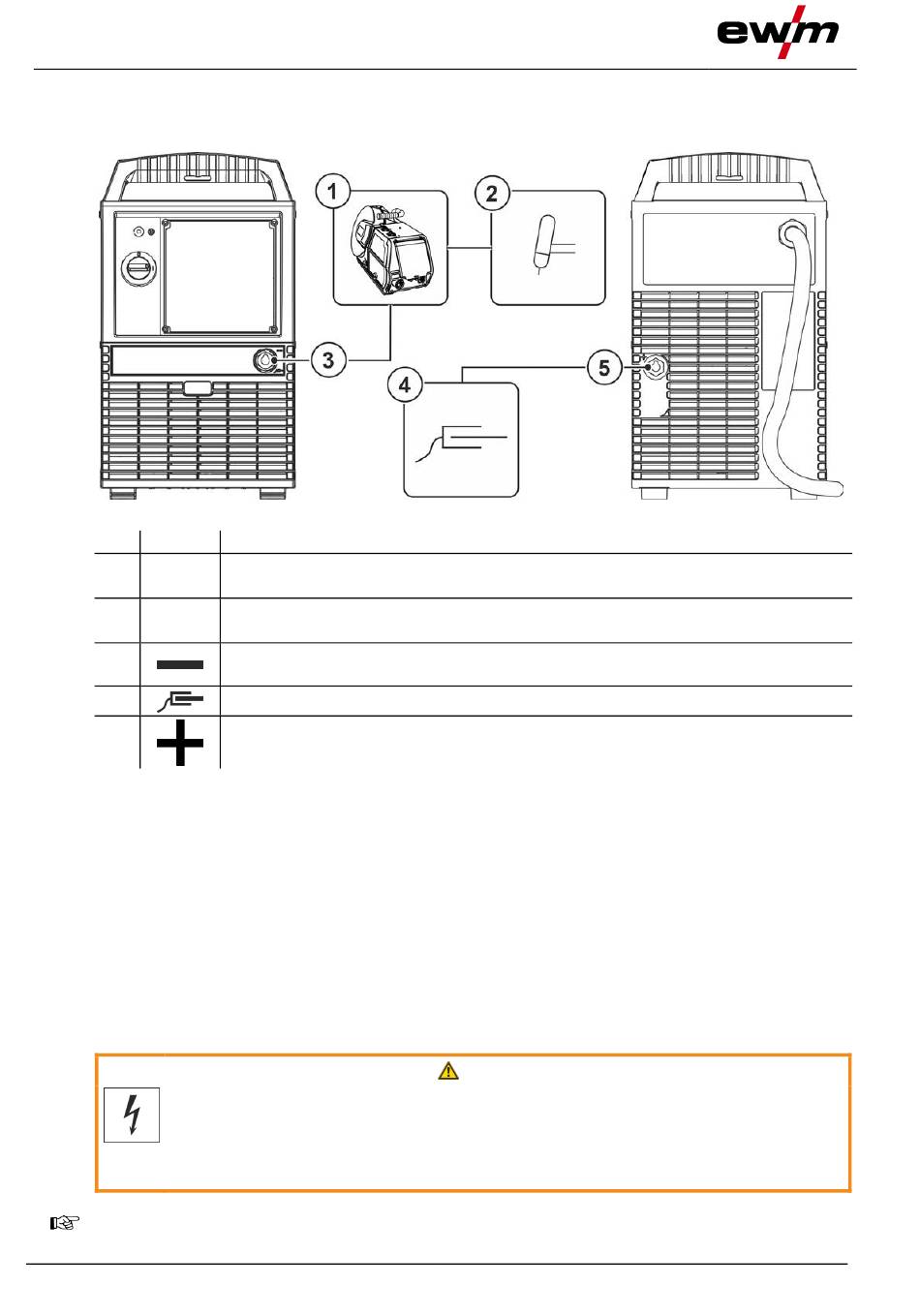

5.4 TIG welding
5.4.1

Connection

Item Symbol
1
2
3
4
5
• Insert the cable plug of the welding current lead (intermediate hose package) into the connection so-
cket, welding current "-" and lock by turning to the right.
• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
5.4.2

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
5.5

Remote control

The remote controls are operated via the 19-pole remote control connection socket (analogue) or
the 7-pole remote control connection socket (digital), depending on the model.
Read and observe the documentation to all system and accessory components!
5.6

Interfaces for automation

Do not carry out any unauthorised repairs or modifications!
To avoid injury and equipment damage, the unit must only be repaired or modified by
specialist, skilled persons!
The warranty becomes null and void in the event of unauthorised interference.
• Appoint only skilled persons for repair work (trained service personnel)!
Unsuitable control cables or incorrect input/output signal assignment can cause damage to the
machine. Use shielded control cables only.
30
Description 0
Wire feeder
Note the additional system documents!
Welding torch
Observe additional system documents!
Connection socket, welding current "–"
Workpiece
Connection socket, "+" welding current
Figure 5-13
WARNING
099-005667-EW501
22.09.2021
