MMA welding or gouging
5.3.3

Connection of electrode holder or gouging torch

Risk of crushing and burns!
When changing stick electrodes there is a risk of crushing and burns!
• Wear appropriate and dry protective gloves.
• Use an insulated pair of tongs to remove the used stick electrode or to move welded work-
pieces.
Item Symbol
1
2
3
4
5
• Insert the cable plug of the electrode holder or gouging torch into the connection socket, welding cur-
rent and lock by turning to the right.
• Insert the electrode holder plug and workpiece lead into the welding current socket depending on ap-
plication and lock in place by turning to the right. The corresponding polarity will be based on the infor-
mation of the electrode manufacturer on the electrode packaging.
28
Description 0
Electrode holder
Gouging torch
Note the additional system documents!
Connection socket, "+" welding current
Connection socket, welding current "–"
Workpiece
CAUTION

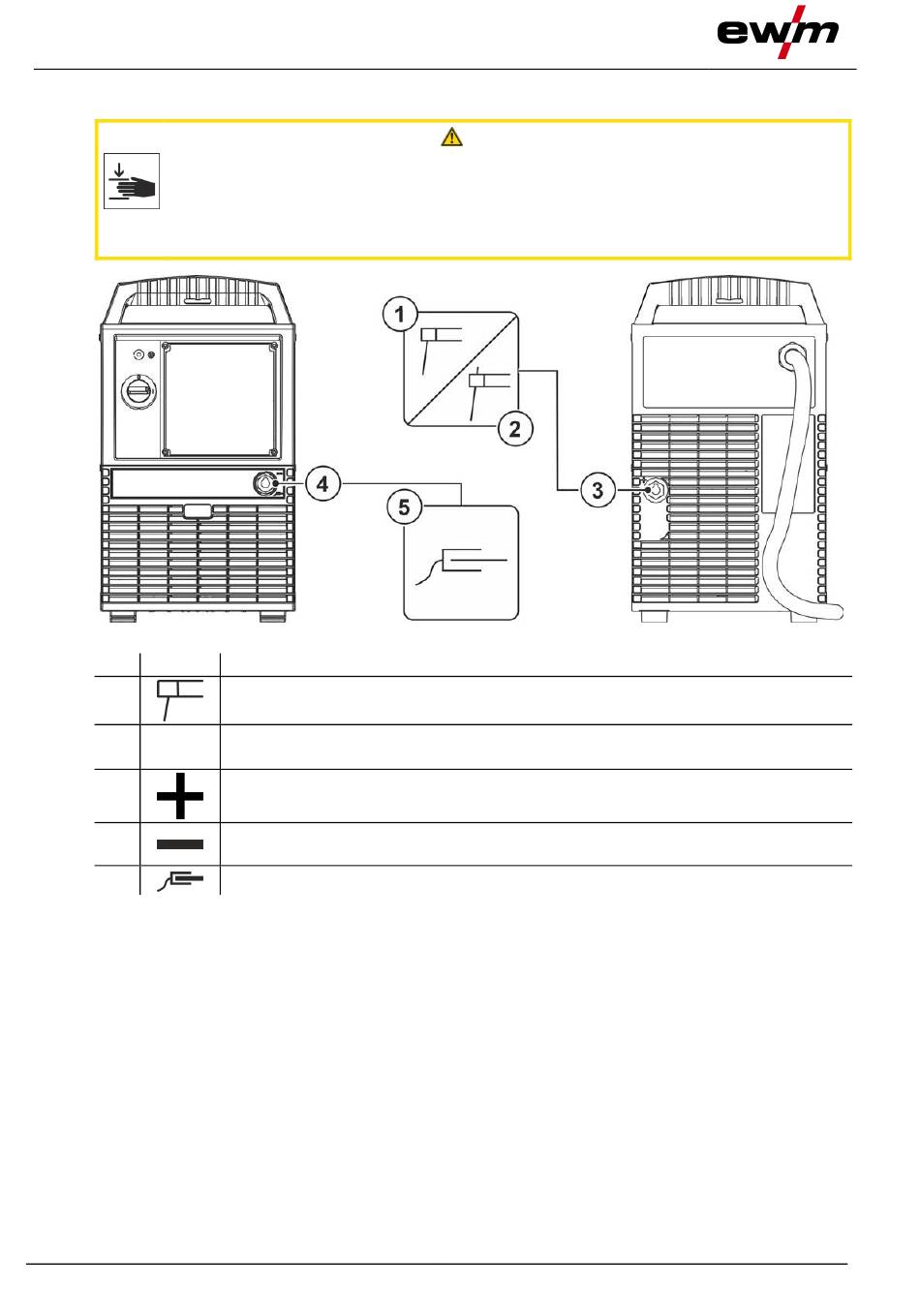

Figure 5-11
