5.3.4

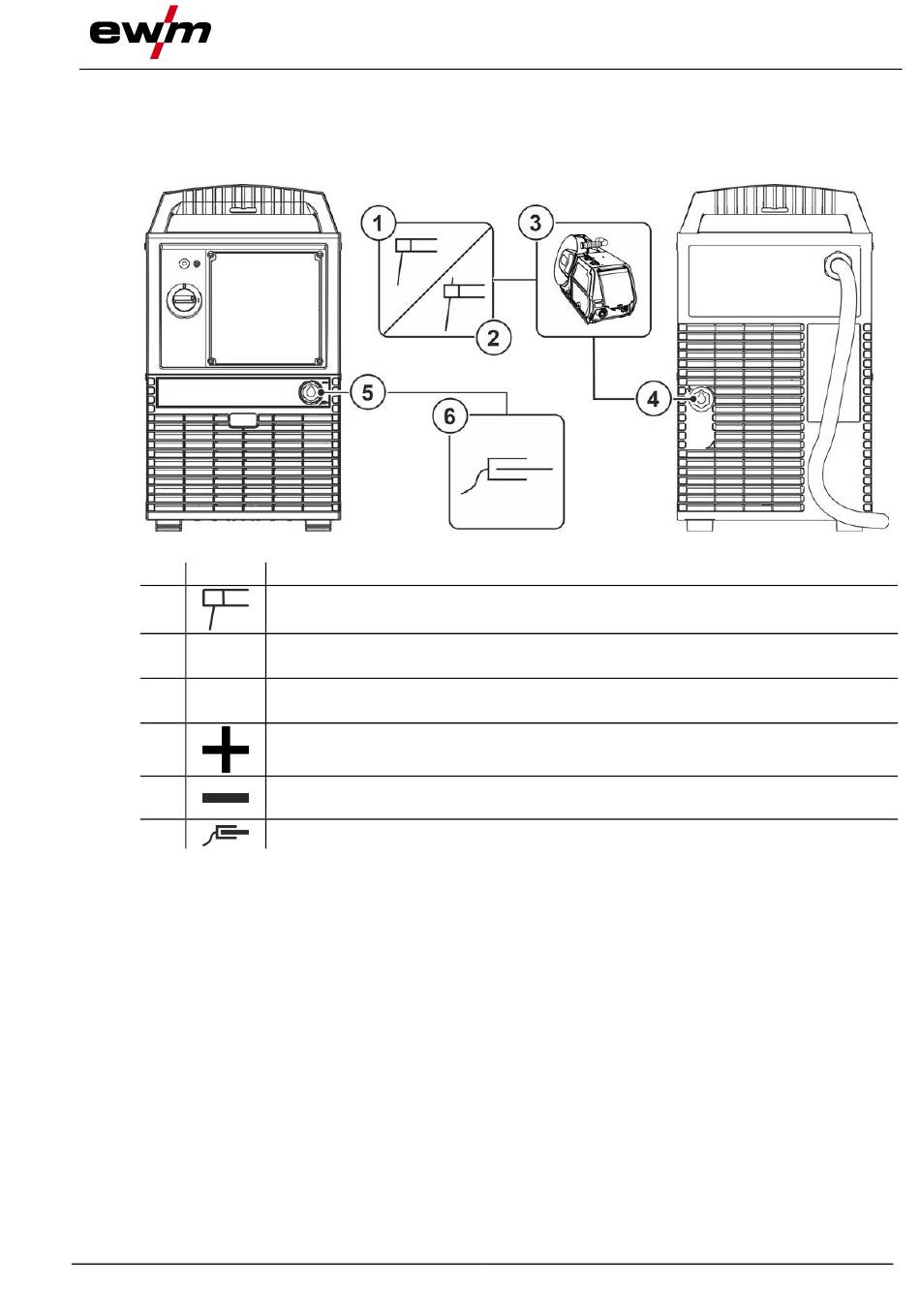

Connection of the electrode holder / gouging torch over the wire feeder

Only together with wire feeders and the built-in option of electrode holder connection socket
OW MMA.
For connection description, see the relevant "Wire feeder" operating instructions.
Item Symbol
1
2
3
4
5
6
• Insert the electrode holder or gouge plug into the welding current connection socket (wire feeder) and
lock in place by turning to the right. The welding current polarity is changed by reconnecting the
welding power plug (intermediate hose package) at the power source.
• Insert the cable plug on the work piece lead into the "+" welding current connection socket and lock by
turning to the right.
5.3.5

Welding task selection

For selection of the welding task and for general operation see the relevant Control operating instructions.
099-005667-EW501
22.09.2021
Description 0
Electrode holder
Gouging torch
Note the additional system documents!
Wire feeder
Note the additional system documents!
Connection socket, "+" welding current
Connection socket, welding current "–"
Workpiece
Figure 5-12
Design and function
MMA welding or gouging
