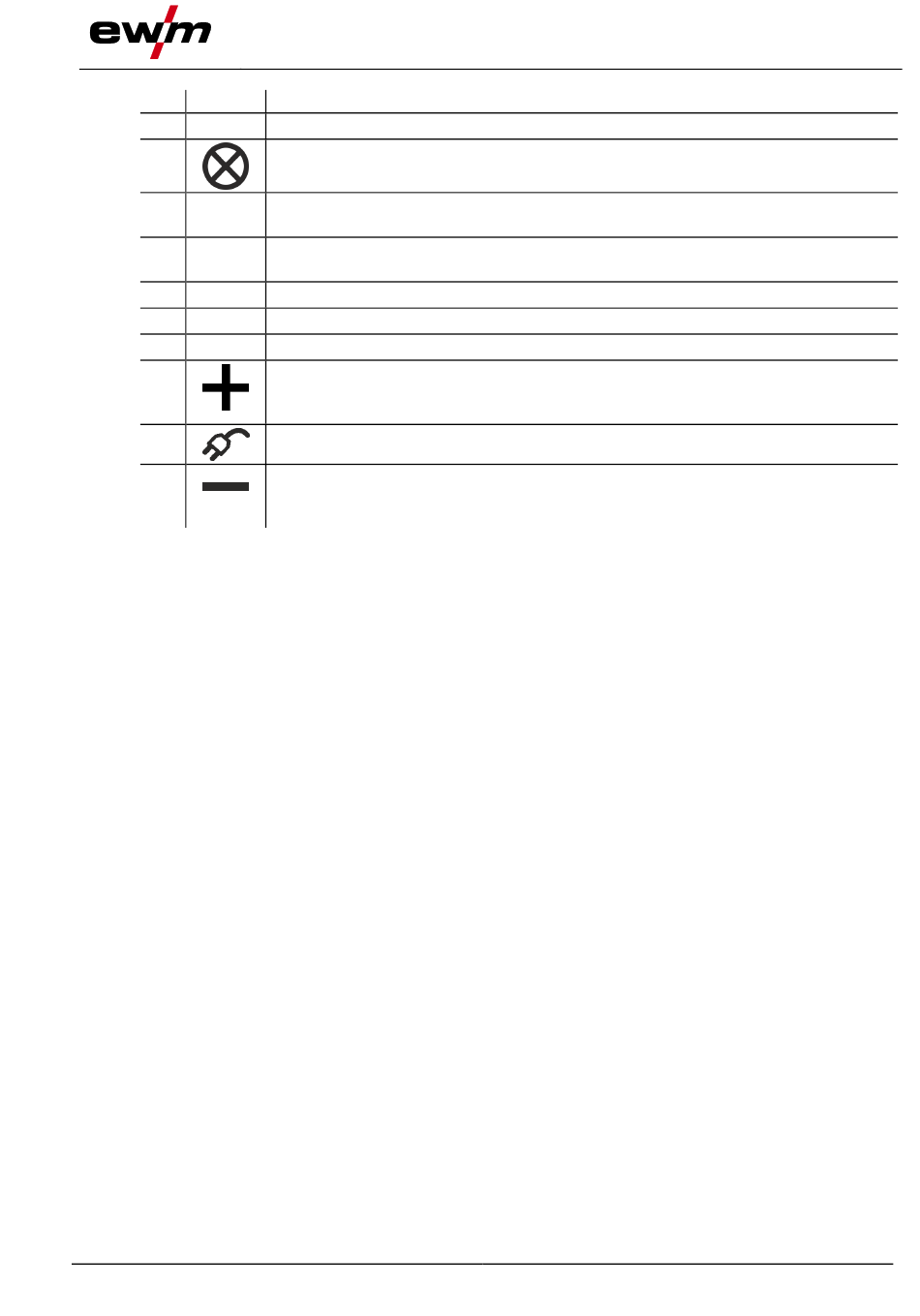

Item Symbol
1
2
3
4
5
6
7
8
9
10
099-005667-EW501
22.09.2021
Machine description – quick overview
Description 0
Carrying handle
Ready for operation signal light
Signal light on when the machine is switched on and ready for operation
Main Switch
Switching the machine on or off.
Cooling air inlet
Dirt filter optional > see 6.1.2 chapter
Machine feet
Connection panel > see 4.1.1 chapter
Cooling air outlet
Connection socket, "+" welding current
How to connect the accessories depends on the welding procedure. Please observe
the connection description for the corresponding welding procedure > see 5 chapter.
Mains connection cable > see 5.1.6 chapter
Connection socket, "-" welding current
How to connect the accessories depends on the welding procedure. Please observe
the connection description for the corresponding welding procedure > see 5 chapter.
Front view / rear view
