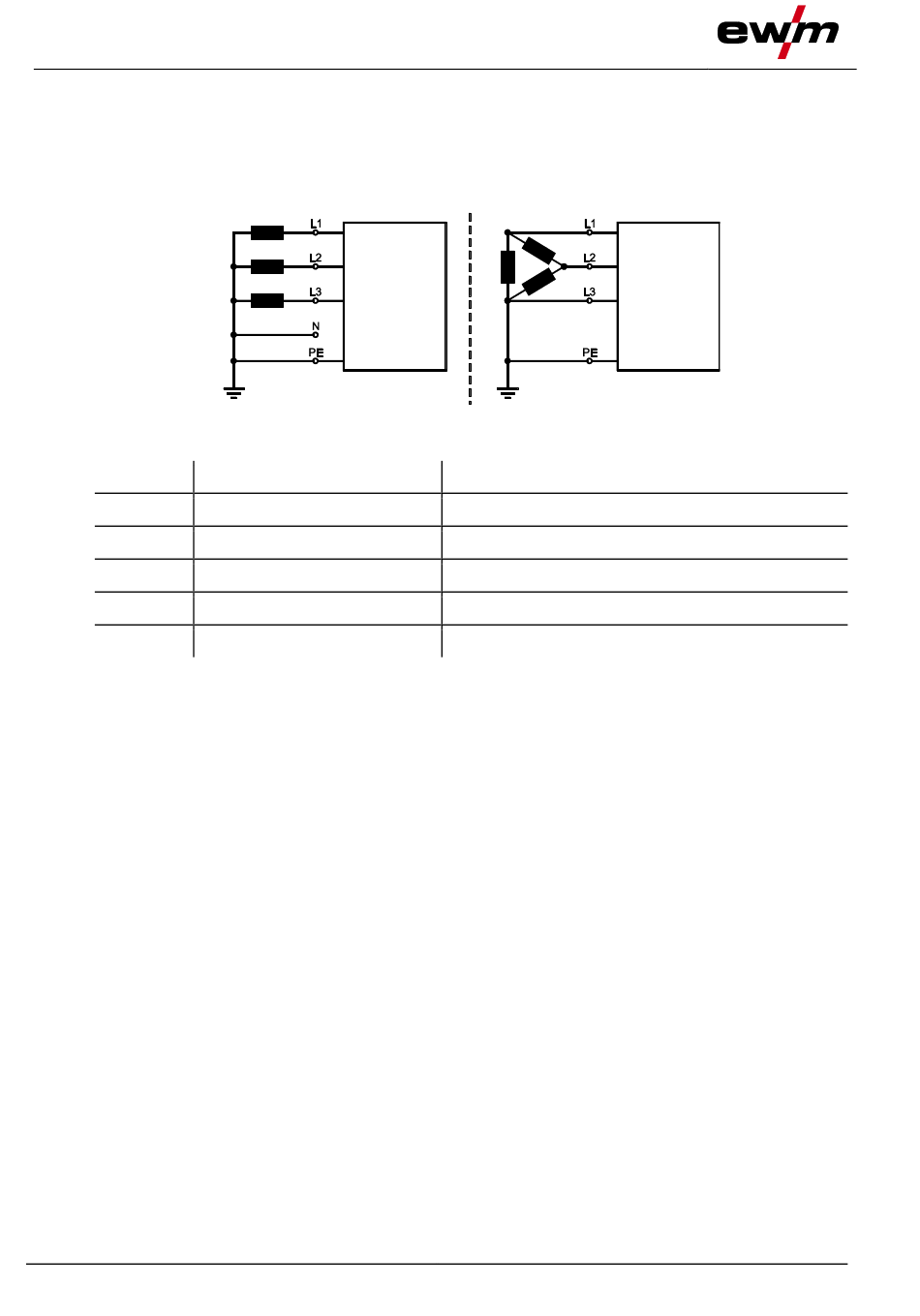

Mains configuration

The machine may be connected to:
• a three-phase system with four conductors and an earthed neutral conductor
• a three-phase system with three conductors of which any one can be earthed,
e.g. the outer conductor
Legend
Item Designation
L1 Outer conductor 1
L2 Outer conductor 2
L3 Outer conductor 3
N Neutral conductor
PE Protective conductor
• Insert mains plug of the switched-off machine into the appropriate socket.
5.1.7

Switching on and system diagnosis

Each time the system is switched on, the entire welding system runs data synchronization and the system
diagnostics of the individual components. The duration of the start time (switching on up to welding readi-
ness) depends on the number of connected system components and the information to be exchanged
under these devices. This time can take from several seconds to several minutes (e.g. for the system
components interconnected for the first time). During this start phase, the system components will display
the controller type and, if applicable, software information in the welding data display (if available). This
start phase is terminated by display of the nominal valuesfor current, voltage or wire feed speed.
Operation of machine fan and coolant pump
The machine fan and coolant pump in this machine series are temperature- and state-controlled. This
ensures that subsystems of the welding machine run only when they are needed. After each switching on,
the machine fans run at full power for approx. 2 s, e.g. to blow out dust deposits.
24
Figure 5-5
Colour code
brown
black
grey
blue
green-yellow
