Machine description – quick overview
Front view / rear view
4.1.1

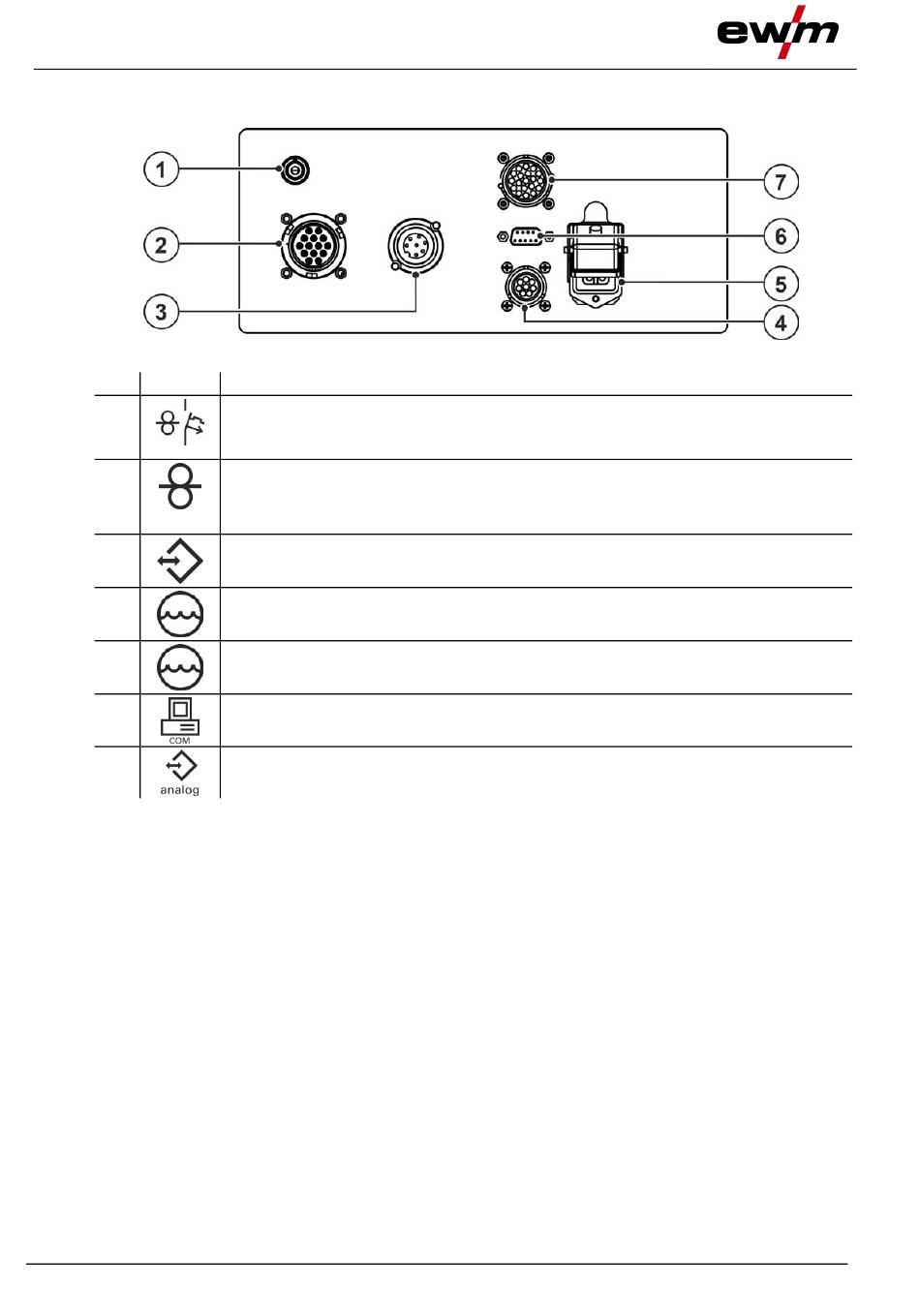

Connection panel

Item Symbol
1
2
DV1
3
4
5
6
7
18
Description 0
Key button, Automatic cutout
Wire feed motor supply voltage fuse
(press to reset a triggered fuse)
14-pole connection socket
Wire feeder control cable connection
7-pole connection socket (digital)
For connecting digital accessory components
8-pole connection socket
Cooling unit control lead
4-pole connection socket
Cooling unit voltage supply
Connection socket (9-pole) - D-Sub
PC interface > see 5.7 chapter
Connection socket- 19-pole, analogue - optional
Interface for automated welding > see 5.6.1 chapter
Figure 4-2
099-005667-EW501
22.09.2021
