Design and function

PC interface

5.7 PC interface
Welding parameter software
Set all welding parameters on the PC and simply transfer to one or more welding machines (accessory,
set consisting of software, interface, connection leads)
• Data exchange between power source and PC
• Welding task administration (JOBs)
• Online-data exchange
• Default settings for welding data monitoring
• Update function for new welding parameters
5.7.1

Connection

Equipment damage or faults may occur if the PC is connected incorrectly!
Not using the SECINT X10USB interface results in equipment damage or faults in signal trans-
mission. The PC may be destroyed due to high frequency ignition pulses.
• Interface SECINT X10USB must be connected between the PC and the welding machine!
• The connection must only be made using the cables supplied (do not use any additional ex-
tension cables)!
Item Symbol
1
2
3
4
5
32
Description 0
Connection socket (9-pole) - D-Sub
PC interface > see 5.7 chapter
Connection cable, 9-pole, serial
SECINT X10 USB
USB connection

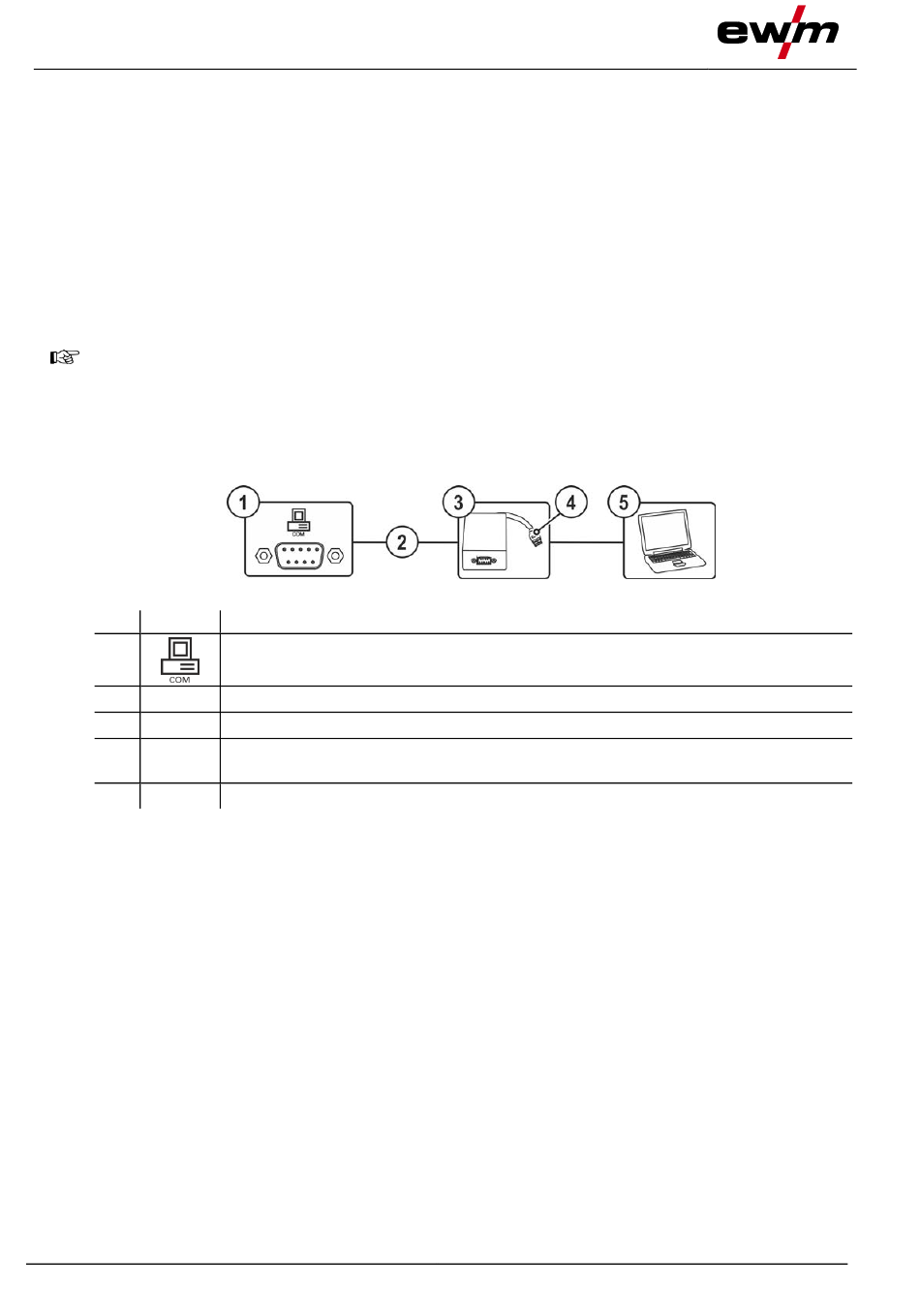

Connecting a Windows PC to SECINT X10 USB
Windows PC
Figure 5-14
