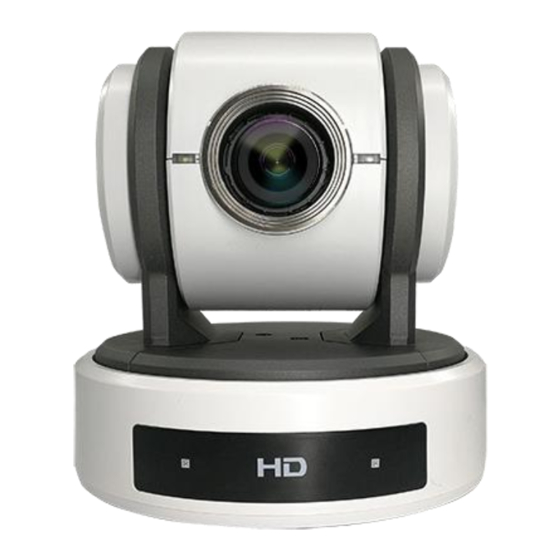

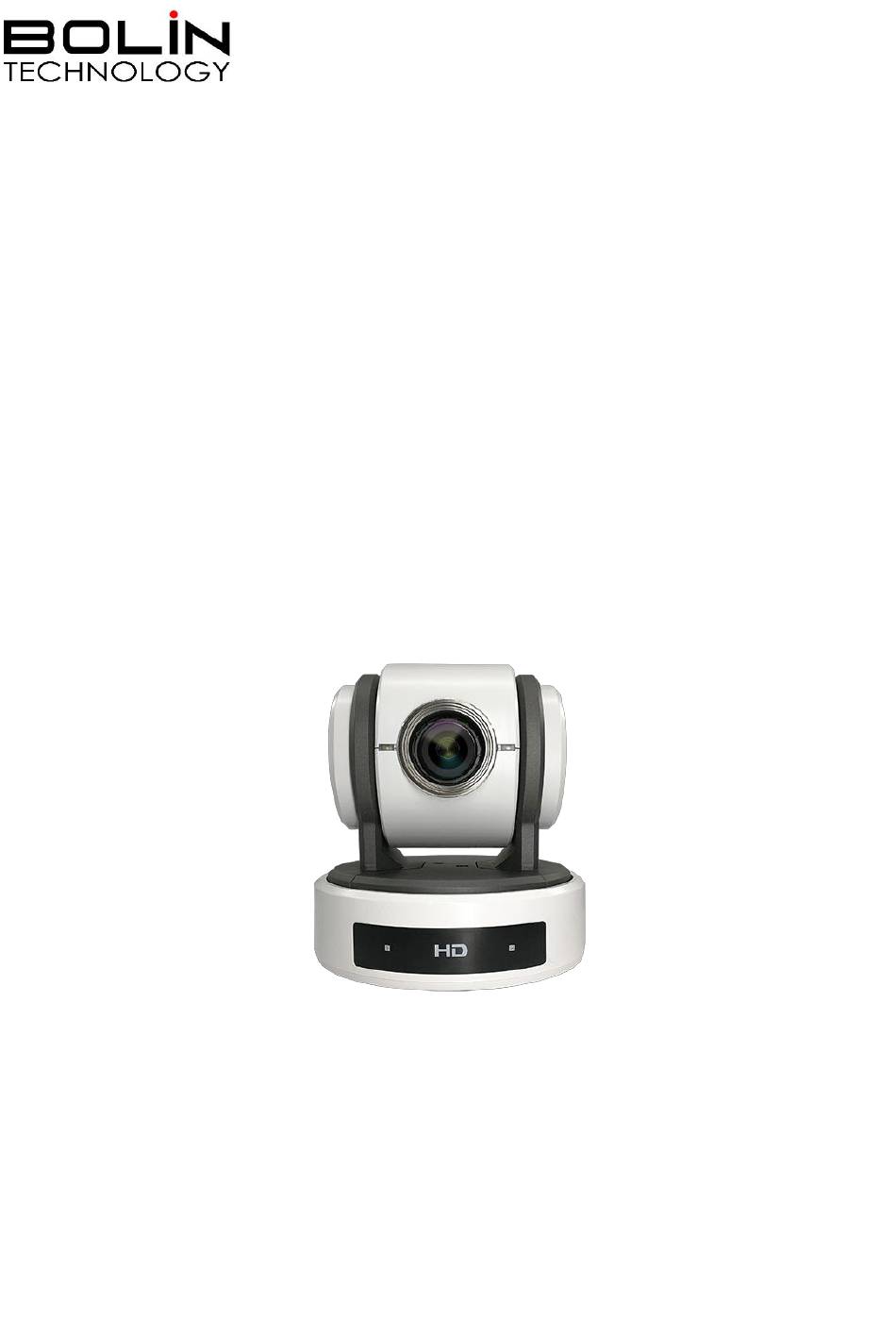

- Page 1 USB3.0/2.0 HD PTZ Camera USER MANUAL VERSION: UCC-2HDU-M-01072019 UCC-2HD10BT-U32 © 2018 Bolin Technology...
-
Page 2: Table Of Contents
Contents IMPORTANT INFORMATION ..............................3 WHAT’S IN THE BOX ................................. 5 OVERVIEW ....................................6 ..................................... 6 ODEL UMBERS FEATURES ....................................6 CAMERA DIAGRAMS ................................. 7 ......................................7 AMERA ..................................8 EMOTE ONTROLLER ..................................9 XTENSION ODULE SYSTEM CONFIGURATION ............................... 10 .................................... -
Page 3: Important Information
Before operating the unit, please read this manual thoroughly and retain it for future reference. Copyright Copyright 2015-2018 Bolin Technology all rights reserved. No part of this manual may be copied, reproduced, translated, or distributed in any form or by any means without prior consent in writing from our company. - Page 4 provided in this manual. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Safety Information WARNING! Installation and removal of the unit and its accessories must be carried out by qualified personnel. You must read all of the Safety Instructions supplied with your equipment before installation and operation.
-
Page 5: What's In The Box
WHAT’S IN THE BOX Note: The camera color can be in white or black per the item that is purchased. Accessories (Optional) -
Page 6: Overview
Overview Model Numbers This user guide is suitable for the following models: UCC-2HD10BT-U32 Features HD resolution allows for high- definition resolution with superior picture quality. 10X optical zoom with wide-range. 63 degrees horizontal angle zoom lens. -
Page 7: Camera Diagrams
Camera Diagrams Camera 1. 12V DC Power Port Connect the supplied AC power adaptor and cord. 2. Extension Module Port Composite port for extra features to provide RS-232, RS-422/RS-485, CVBS, HDMI, Audio Line functionalities (Requires optional Extension Module) 3. USB 3.0 Port, This unit supports USB2.0 and USB3.0. Outputs the images from this unit as a USB3.0 video signal. -
Page 8: Remote Controller
Remote Controller 1. Power Power ON the camera to turn the camera in operation status. Power OFF the camera to turn the camera in standby status. When the camera is powered OFF, the camera turns to the back and would be on standby mode. ... -
Page 9: Extension Module
Extension Module Extension Module gives you capabilities of having HDMI video signal output, CVBS analog video output, RS232 control, RS422/485 control, External audio input. Extension Module is sold separately. 1. Extension Port (Connect to the camera body) 2. Audio line in (3.5mm jack) 3. -
Page 10: System Configuration
System Configuration Connection When the camera is connected to a computer and joystick keyboard via Extension Module with a VISCA cable (cross type, RS-232), you can operate the camera with the computer and the joystick keyboard. When the camera is connected to a joystick keyboard via Extension Module with a control cable (cross type, RS- 422/485), you can operate the camera’s pan, tilt, zoom with the joystick keyboard. - Page 11 System Requirements for your PC 1. Operating System: Microsoft Windows 10/Windows 8/Windows 7, Linux Ubuntu 16.04LTS, macOS Sierra, Microsoft Windows 7 (32-bit) or above is recommended. 2. CPU: 2.0 GHz or higher, dual-core. Intel i3 CPU or higher are recommended. 3.
-
Page 12: Obtain Audio Signal
When the camera setting HDMI video format at 1080P50/1080P25/750P50, USB2.0 and USB3.0 resolution with frame rate are available as following list. HDMI FORMAT USB2.0 Frame Rate USB3.0 Frame Rate Resolution Resolution 1080P50/1080P25/720P50 1920x1080 1920x1080 50P/25P/10P 1280x720 25P/10P 1280x720 1024x768 1024x768 960x540 960x540... -
Page 13: Camera Control Methods And System Configurations
Camera Control Methods and System Configurations This unit has multiple ways of controlling the USB3.0 camera and various system configuration capabilities using optional products. This section describes ways of controlling and typical system examples with the required components and usage of each system. 1. - Page 14 Use RS-232 (VISCA), RS-422(VISCA)/RS-485 (PELCO P/D) Control via Extension Module. The Extension Module is required when using RS-232 / RS-422/485 signals with external control devices. You can use RS-232 port or RS-422/485 port on Extension Module to connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera.
- Page 15 Use RS-422(VISCA) / RS485 (PELCO P/D) You can use RS-422/485 port connect to optional controllers, such as joystick control keyboard, control PC station, to operate the camera. To perform pan/tilt and zoom operations using the joystick of the control keyboard, and to perform the Preset operation using the control buttons.
- Page 16 PELCO P/D Keyboard RS485 Connection 1. Use PELCO P/D compatible keyboard. Use preset 95# on the keyboard to bring up/exit camera OSD menu. Use joystick and Button “OPEN” or “CLOSE” to navigate OSD menu. To operate keyboard, please refer to the user manual of the keyboard you are using. Note For RS-232 VISCA control, this unit does not support daisy chain connection for using multiple cameras.
- Page 17 Precautions for Preventing Access to the Camera by an Unintended Third Party The camera can be fraudulently accessed in a network environment where a device is connected or connectable to the network without the administrator’s permission, or a PC or other network device connected to the network can be used without any permission.
-
Page 18: Bottom Dip Switch Settings
BOTTOM DIP SWITCH SETTINGS The bottom dip switch is for setting the camera configuration for following items: 1. Camera ID Address for VISCA protocol 2. Video output / Video color space 3. RS-232 / RS-422/485 selection 4. Video resolutions selection 5. - Page 19 4. RS-232 / RS-422 Baud Rate Setting The baud rate of the camera has been set up as 9600bps, it is not changeable. RS-232 / RS-422 Baud Rate Setting 9600 bps 9600 bps 9600 bps 9600 bps SW 2 : Factory Default Setting, OFF,OFF,OFF,ON,OFF,OFF,OFF,OFF Bit 1~4: Video resolution setting...
-
Page 20: Adjusting And Setting With Menus
Adjusting and Setting with Menus About On-Screen Menus You can change various settings, such as shooting conditions and system setup of the camera, while observing menus displayed on a connected computer screen. This section explains how to read the on-screen menus before starting menu operations. The menu parameters may vary according to the different product model numbers. -
Page 21: Exposure Menu
EXPOSURE Menu The EXPOSURE menu is used to set the items related to exposure. MODE (Exposure Mode) FULL AUTO: The exposure is adjusted automatically using the sensitivity, electronic shutter speed, and iris. BRIGHT: Adjust the brightness level (LEVEL) manually. SHUTTER PRI: Shutter Priority mode. The exposure is adjusted automatically using the sensitivity and iris. -
Page 22: Picture Menu
PICTURE Menu The PICTURE menu is used to set the items related to the picture. SHARPNESS: Picture sharpness value ranges from 0 to 20. You can enjoy emphasized edge and high-resolution images. EFFECT: (Picture Effect) It consists of the following functions: Image effect from Off, B&W, NEG.ART NOISE REDUCTION: Noise reduction - you can enjoy clearer images by removing unnecessary noise. -
Page 23: System Menu
SYSTEM Menu PELCO ID When using RS485 (PELCO P/D) control, Set Camera ID to the address that you want to control to. This value is from 001-255. IR-RECEIVE (Infrared Signal Reception) When this is set to OFF, the camera does not receive the signal from the infrared remote controller. -
Page 24: Operation Using The Infrared Remote Controller
Operation Using the Infrared Remote Controller Pan/Tilt and Zoom Operation Panning and Tilting 1. Press the POWER switch. The camera will turn on and perform the pan/tilt reset operation automatically. 2. Press the arrow button to pan or tilt the camera. While checking the picture on the screen, press the desired arrow button. -
Page 25: Operating Multiple Cameras With The Infrared Remote Controller
Zooming Button [T] - Zoom-IN and [W] - Zoom-OUT. Button [F] – FAST mode. Press once and the LED turns red to activate the Fast Zoom Speed Mode, press again to go back to normal Zoom Speed mode. Note When you perform pan/tilt operation while the camera is in the telephoto mode, the moving speed of the image on the screen may be a little jerky. -
Page 26: Storing The Camera Settings In Memory - The Presetting Feature
Storing the Camera Settings in Memory — the Presetting Feature Memory (Preset) Using the preset function, 6 sets of camera shooting conditions can be stored and recalled. 6 sets of camera shooting conditions can be stored and recalled by using remote controller. Up to 128 presets via protocol programming. This function allows you to achieve the desired status instantly, even without adjusting the following items each time. -
Page 27: Menu Configuration
Menu Configuration The menus of the camera are configured as described below. For more details, refer to the pages in parentheses. The initial settings of each item are in bold. DATA SCREEN EXPOSURE MODE CLOSE, F14, F11, F9.6, F8.0, F6.8, F5.6, F4.8, F4.0, F3.4, F2.8, F2.4, IRIS PRI F2.0, F1.6 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250,... -
Page 28: Dimensions
Dimensions Unit: mm... - Page 29 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
