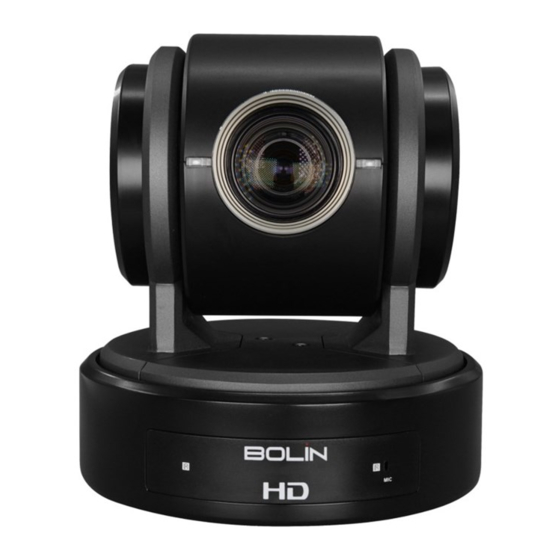

- Page 1 Dual Output SDI+IP PTZ Camera USER MANUAL Part Two: Network Camera User Manual Version: SN-IP-09042020 © 2020 Bolin Technology...
-
Page 2: Table Of Contents
Contents PART TWO: NETWORK CAMERA USER MANUAL........................3 NETWORK CONNECTION ................................3 ................................... 3 REPARATION ................................. 3 HECK BEFORE LOGIN LOGGING IN TO THE WEB INTERFACE ............................4 INTRODUCTION TO THE WEB INTERFACE ..........................5 ....................................6 REVIEW ................................... 6 AN AND .................................... -
Page 3: Part Two: Network Camera User Manual
Part Two: Network Camera User Manual Network Connection Before accessing a network camera (also known as IP Camera or IPC) from a PC, you need to connect the network camera to the PC directly with a network cable or via a switch or router. Use a Shielded Twisted Pair (STP) cable to connect the network interfaces of the network camera and the PC. -
Page 4: Logging In To The Web Interface
Logging in to the Web Interface The default static IP address of the camera is 192.168.0.13, and the default subnet mask is 255.255.255.0 The following uses Internet Explorer 11 as an example to describe the login procedure. 1. Browse to the login page by entering the correct IP (default IP is 192.168.0.13) address of your camera in the address bar. -
Page 5: Introduction To The Web Interface
Introduction to the Web Interface 1. Preview • Used to monitor the camera video image • Used to do camera PTZ control and preset setting 2. Video Encode • Used to configure the camera video Main and Sub streams video parameter, such as encode mode, resolution, bit rate, frame rate, I Frame Interval and so on 3. -
Page 6: Preview
Preview The preview page is used to watch the live preview of the camera. Play/stop Live Preview: User can click the button which on the bottom toolbar, to watch live video or stop the live video. Mute: User can enable or disable the audio of live preview by click the button on bottom toolbar, while enabled audio, user can drag the volume bar to... -
Page 7: Video Encode
Video Encode The video encode page is used to configure settings for the compression, format, and data rates for all video streams produced by the camera Definitions: • Encode Mode: The encoding standards that are available for use (H.264 / H.265) •... -
Page 8: Video Transmission
▪ Automatically generated based on the current IP address of the camera ▪ You can copy this address and using VLC or other network video compatible player to receive the RTSP sub stream and watch the video Resolution: ▪ 1280x720 ▪... -
Page 9: Image Adjust
Image Adjust Image parameters can be adjusted to control the way the image is captured and displayed Focus The Focus menu is used to set the items related to focus Focus Mode: You can set to Manual or Auto mode Digital Zoom: Turn Digital Zoom ON, 2x digital zoom is activated. - Page 10 Exposure The Exposure menu is used to set the items related to exposure. Exposure Mode Auto: The exposure is adjusted automatically using the values set for EX-COMP (Exposure Compensation). Manual: Adjust the GAIN, electronic shutter speed (SPEED), iris (IRIS) manually. Iris Priority: Iris Priority mode.
- Page 11 One Push: The One Push White Balance mode is a fixed white balance mode that may be automatically readjusted only at the request of the user (One Push Trigger), assuming that a white subject, in correct lighting conditions, and occupying more than 1/2 of the image, is submitted to the camera.
-
Page 12: Audio Setting
contrast becomes, and the larger the value is, the higher the contrast becomes. Saturation: You can configure the color gain from 0-15. Use this setting when bright color is particularly important. Noise-reduction The Noise-reduction is used to set the items related to noise, it supports 2D and 3D mode noise reduction. You can enjoy clearer images by removing unnecessary noise. -
Page 13: Firmware Upgrade
You can upgrade the camera version when there has new firmware available. New firmware file can be obtained from BOLIN Technology Click “Click to upload files” button, navigate to the file (.bin), select and then can start upgrade It takes a few minutes for the camera to come back online... -
Page 14: Account
Account This page allows user to modify admin account password, the default password is admin; User can login to the web interface, access to Account page, to modify the password; Input the new password in Password option bar, then input the password once again in Confirm Password option bar;... -
Page 15: System Time
System Time The interface allows user to configure the time zone and synchronize camera system time with the NTP server. Time Zone: Support 24 time zones, users can choose the corresponding time zone according to their country. NTP Enable: To enable and disable NTP server NTP Update Interval: Update interval of time synchronization between camera and the NTP server, selectable from 30 minutes, and 1 hour to 24... - Page 16 2082 TECHNOLOGY LLC BOLIN TECHNOLOGY...
