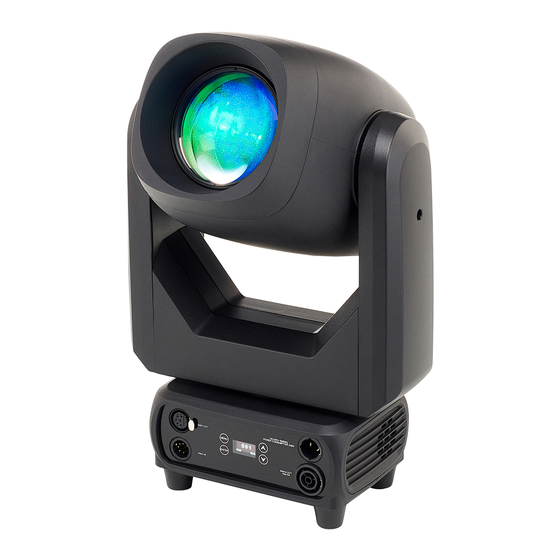

Ignition Tristan 200 User Manual

Moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Tristan 200
Moving Head

Advertisement

Table of Contents
loading

Related Manuals for Ignition Tristan 200

Summary of Contents for Ignition Tristan 200

  • Page 1 Tristan 200 Moving Head...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.07.2023, ID: 554504 (V2)

  • Page 3: Table Of Contents

    7.4 Settings menu........................ 22 7.5 Colour wheel and gobos.................... 26 7.6 Replacing gobos......................27 7.7 Functions in 18-channel DMX mode..............29 Technical specifications....................33 Plug and connection assignment................. 35 Fehlerbehebung........................36 Cleaning............................ 37 Protecting the environment................... 38 Tristan 200 Moving Head...
  • Page 4 Tristan 200 Moving Head...

  • Page 5: General Information

    Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Tristan 200 Moving Head...

  • Page 6: Safety Instructions

    When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure devices with a secondary safety attachment, such as a safety cable or a safety chain. Tristan 200 Moving Head...
  • Page 7 If the distance between the light source and the illuminated surface is too short or the device is badly ventilated, the device can overheat and cause fires. Make sure that illuminated surfaces are more than 2 m away. Do not operate the device in ambient temperatures above 40 °C. Always ensure sufficient ventilation at the operating location. Tristan 200 Moving Head...

  • Page 8: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Tristan 200 Moving Head...

  • Page 9: Installation

    Switch off the device before any work is performed in the movement range or immediate vicinity of the device, or if unauthorised persons are in that area. Tristan 200 Moving Head...
  • Page 10 In doing so, the area underneath the device must be cordoned off. Additionally secure the device with a safety cable that can bear at least 12 times the weight of the device to be attached. Tristan 200 Moving Head...

  • Page 11: Starting Up

    DMX device. Connect the output of the first DMX device to the input of the second one and so on, to form a series connection. Make sure that the output of the last DMX device in the chain is terminated by a resistor (110 Ω, ¼ W). 2 3 4 Tristan 200 Moving Head...

  • Page 12: Connections And Operating Elements

    | Decreases the displayed value by one. 4 Display 5 [Mains IN] | Lockable Power Twist TR1 input socket for the power supply 6 [Mains OUT] | Lockable Power Twist TR1 output socket for the power supply for further devices Tristan 200 Moving Head...

  • Page 13: Operation

    Specifying the DMX mode The device can only be controlled in 18-channel mode. To specify the mode, proceed as follows: Open the main menu. Navigate to ‘DMX Settings è Channel Mode’. Use [UP] and [DOWN] to select ‘Mode1(18)’ . Tristan 200 Moving Head...
  • Page 14 Use [UP] and [DOWN] to select ‘No’ (Tilt Invert deactivated) or ‘Yes’ (Tilt Invert activated). Confirm your selection with [ENTER]. ð Tilt inversion is activated or deactivated. To exit the menu, press [MENU], or wait 30 seconds. Tristan 200 Moving Head...
  • Page 15 Use [UP] and [DOWN] to select ‘No’ (Display normal) or ‘Yes’ (Display inverted). ð Selecting ‘Yes’ rotates the display by 180°. Confirm your selection with [ENTER]. ð The desired setting is saved. To exit the menu, press [MENU], or wait 30 seconds. Tristan 200 Moving Head...
  • Page 16 To end the automatic self test and exit the menu, press [MENU], or wait 30 sec‐ onds. Performing a manual self test Open the main menu. Navigate to ‘Manual Test’. ð The current channel is displayed. Tristan 200 Moving Head...
  • Page 17 Use [UP] and [DOWN] to select the ‘Total LED Hour’ (total time) or ‘LED On Hour’ (current switch-on time) submenu. Confirm your selection with [ENTER]. ð The desired selection is saved. Use [UP] and [DOWN] to select the ‘LED Hours Reset’ submenu. Tristan 200 Moving Head...
  • Page 18 To exit the menu, press [MENU], or wait 30 seconds. Reset to factory defaults The menu item ‘Factory Restore’ gives you the option of resetting the device to its factory settings. Open the main menu. Navigate to ‘Factory Restore’. Tristan 200 Moving Head...
  • Page 19 The parameter IDs are implemented as follows for different commands: Parameter ID Command Command Command ‘Discovery’ ‘Set’ ‘Get’ DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SUPPORTED_PARAMETERS SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE DEVICE_MODEL_DESCRIPTION COMMS_STATUS QUEUED_MESSAGE STATUS_MESSAGES STATUS_ID_DESCRIPTION CLEAR_STATUS_ID PRODUCT_DETAIL_ID_LIST MANUFACTURER_LABEL DEVICE_LABEL BOOT_SOFTWARE_VERSION_ID DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION SENSOR_DEFINITION SENSOR_VALUE DEVICE_HOURS Tristan 200 Moving Head...
  • Page 20 Operation Parameter ID Command Command Command ‘Discovery’ ‘Set’ ‘Get’ PAN_INVERT TILT_INVERT RESET _DEVICE CURVE DMX_STATE DIMMER_SPEED X - Command implemented for the respective parameter ID Tristan 200 Moving Head...

  • Page 21: Menu Overview

    Password= 050 Temperature LED’s Current Information Max. temp Fan State Head 1-2 Base Firmware Version RDM UID Fixture Errors Error Logs Reset Error Log Password= 050 Pan/Tilt Reset Reset Functions Effect Reset All Reset Factory Restore Tristan 200 Moving Head...

  • Page 22: Settings Menu

    Use [UP] and [DOWN] to select a value between –128 and 127. Confirm your selection with [ENTER]. ð The settings are saved and immediately effective. To exit the settings menu, press [MENU], or wait 30 seconds. Tristan 200 Moving Head...
  • Page 23 Use [UP] and [DOWN] to select a value between –128 and 127. Confirm your selection with [ENTER]. ð The settings are saved and immediately effective. To exit the settings menu, press [MENU], or wait 30 seconds. Tristan 200 Moving Head...
  • Page 24 Use [UP] and [DOWN] to select a value between –128 and 127. Confirm your selection with [ENTER]. ð The settings are saved and immediately effective. To exit the settings menu, press [MENU], or wait 30 seconds. Tristan 200 Moving Head...
  • Page 25 Operation Overview (settings menu) Dimming Start 0 - 999 Frequency (Hz) 1072 - 1327 Tilt Color Gobo 1 OFFSET MENU R-Gobo 1 -128 -127 Fix Gobo 2 Prism R-Prism Frost Angle Focus Tristan 200 Moving Head...

  • Page 26: Colour Wheel And Gobos

    Operation 7.5 Colour wheel and gobos ö & 1 Colour wheel* 2 Static gobo wheel 3 Rotating gobo wheel 4 3-facet prism 5 Frost filter * - Colour representation only in the online PDF Tristan 200 Moving Head...

  • Page 27: Replacing Gobos

    5 and pull it out slowly. Check that the gobo is covered with glass adhesive. If this is the case, use a glass cleaner to remove the glass adhesive. This is to prevent the gobo being damaged. Tristan 200 Moving Head...
  • Page 28 Reinsert the gobo bracket in the gobo wheel in such a way that it is exactly centred in the gobo wheel. Reattach the gobo wheels to the gobo wheel mount and secure it with screws Reinsert the positioning plate and secure it with screws 3. Tighten the eight screws 2 again. Tristan 200 Moving Head...

  • Page 29: Functions In 18-Channel Dmx Mode

    Bright pink Open Open and red Red and orange Orange Orange and yellow Yellow Yellow and green Green Green and cyan Cyan Cyan and magenta Magenta Magenta and blue Blue Blue and bright pink Bright pink Tristan 200 Moving Head...
  • Page 30 128…189 Clockwise rotation (descending) 190…193 Stop 194…255 Anti-clockwise rotation (increasing) Fixed gobo 2 0…07 Open 08…15 Gobo 2-1 16…23 Gobo 2-2 24…31 Gobo 2-3 32…39 Gobo 2-4 40…47 Gobo 2-5 48…55 Gobo 2-6 56…63 Gobo 2-7 Tristan 200 Moving Head...
  • Page 31 Shutter 0…15 Open 16…131 Strobe effect (slow to fast) 132…139 Open 140…181 Pulse open effect (slow to fast) 182…189 Open 190…231 Pulse close effect (slow to fast) 232…239 Open 240…247 Random strobe effect 248…255 Open Dimmer Tristan 200 Moving Head...
  • Page 32 Operation Channel Value Function 0…255 0%…100% 0…255 Dimmer, fine adjustment Reset 0…127 No function 128…255 Reset Tristan 200 Moving Head...

  • Page 33: Technical Specifications

    Hanging, standing Dimensions (W × H × D), 274 mm × 439 mm × 175 mm when the light beam points upwards Weight 11.5 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Tristan 200 Moving Head...
  • Page 34 Technical specifications Further information Rotating gobos Static gobos Motorised focus Colour mixture Colour wheel Prism Zoom Number of colour wheels Tristan 200 Moving Head...

  • Page 35: Plug And Connection Assignment

    A five-pin XLR socket serves as DMX output, a five-pin XLR plug serves as DMX input. The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+) Tristan 200 Moving Head...

  • Page 36: Fehlerbehebung

    DMX interface circuits. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Tristan 200 Moving Head...

  • Page 37: Cleaning

    The fan grids of the device must be cleaned of any contamination, such as dust, etc. on a regular basis. Before cleaning, switch off the device and disconnect mains-oper‐ ated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Tristan 200 Moving Head...

  • Page 38: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Tristan 200 Moving Head...
  • Page 40 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
