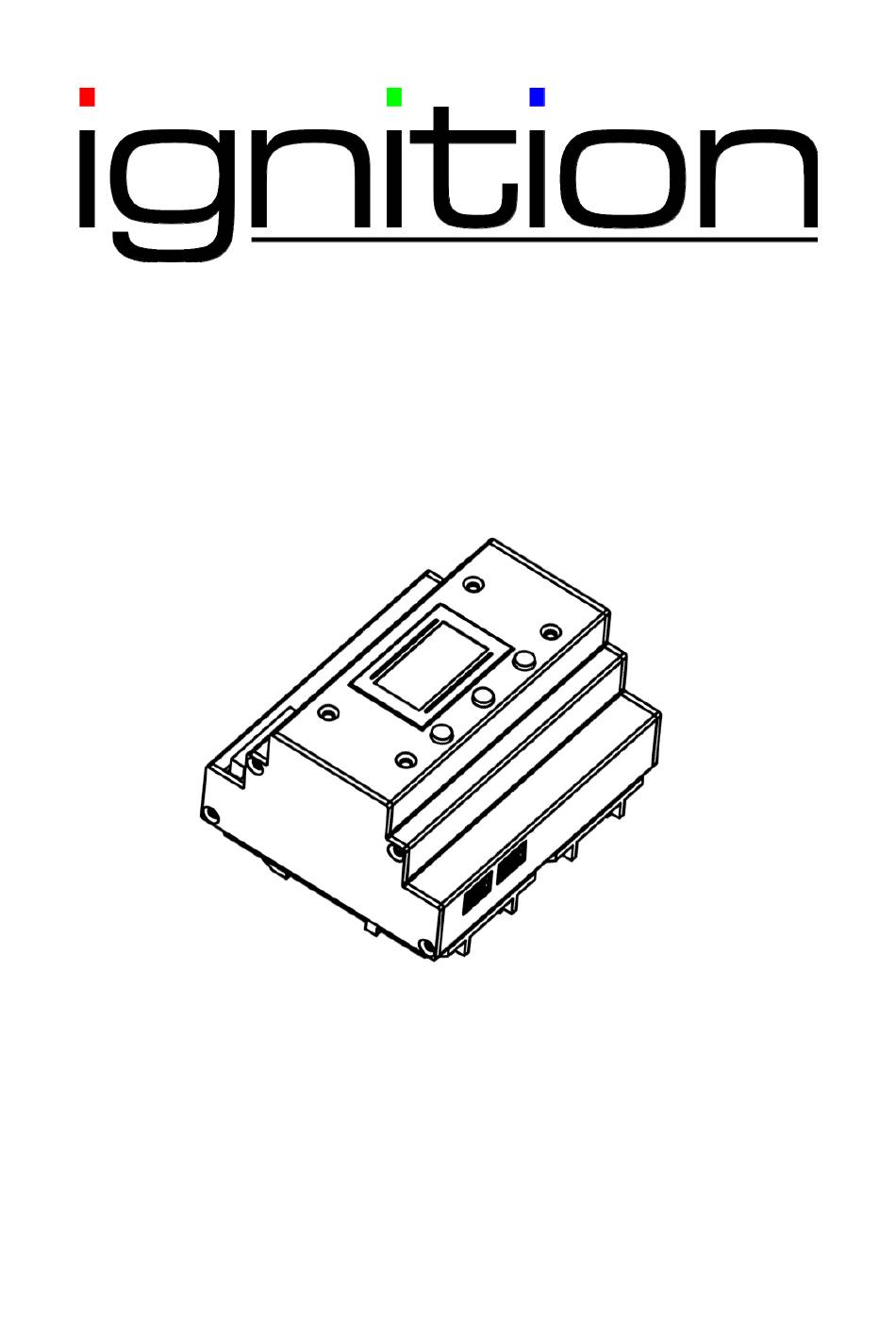

  • Page 1 U S E R ’ S M A N U A L D-10...

  • Page 2: Table Of Contents

    D - 1 0 Table of contents Safety instructions........................... 3 Safety admonition ........................... 4 Operation Instruction ........................4 Technical specifications........................6 Connection diagram........................6 2 / 7...

  • Page 3: Safety Instructions

    D - 1 0 1. Safety instructions FOR SAFE AND EFFICIENT OPERATION Be careful with heat and extreme temperature Avoid exposing it to direct rays of the sun or near a heating appliance. Not put it in a temperature bellow 41°F /5°C, or exceeding 95°F /35°C. Keep away from humidity, water and dust Do not place the set in a location with high humidity or lots of dust.

  • Page 4: Safety Admonition

    D - 1 0 2. Safety admonition Please read the user manual careful before use, comply the operation instruction This Dimmer was designed for indoor use only, please placed at the dry and airiness place to prevent the rainwater infiltration then become short circuit. This Dimmer need to connect the power supply that has all ritht earth line, the power supply voltage must be the same as the rating voltage that marked.
  • Page 5 D - 1 0 Preheat setup Press MENU enter to program to choose menu PREHEAT 000%, then turn into preheat setup. Press UP or DOWN to change the preheat value around the range 0-100. after finish the preheat value, the Dimmer will always keep this value as lowest brightness. Temperature display Under this mode, it shows the temperature of the controlled silicon.

  • Page 6: Technical Specifications

    D - 1 0 4. Technical specifications Power supply : 240V AC, 50HZ Weight : 0.58kg Dimension(LxWxH): 107*88.5*62mm DMX in : 3pin female socket DMX out : 3pin female socket Data pin configuration: Pin-1:shield, Pin-2: -, Pin-3:+ Max load: 10 A 5.
  • Page 7 D - 1 0 Importeur: B&K Braun GmbH Industriestraße 1 D-76307 Karlsbad-Ittersbach www.bkbraun.com info@bkbraun.com B10-200521-01 7 / 7...
