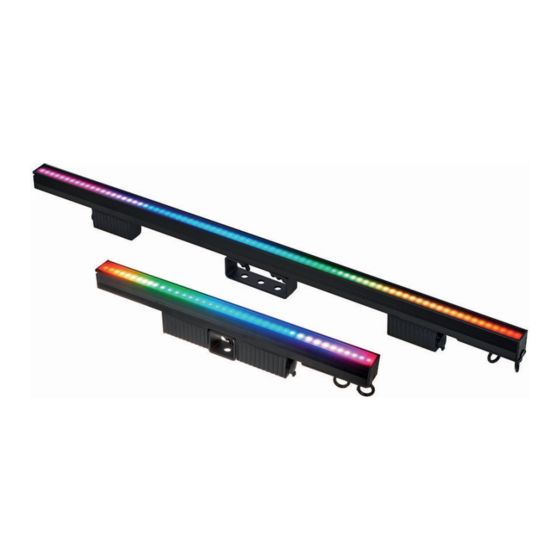

Stagepix Line 100 IP, Stagepix Line 50 IP
LED Strip

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stagepix Line 100 IP and is the answer not in the manual?

Questions and answers

Related Manuals for Ignition Stagepix Line 100 IP

Summary of Contents for Ignition Stagepix Line 100 IP

  • Page 1 Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 01.08.2023, ID: 486339, 486342 (V2)

  • Page 3: Table Of Contents

    General information..........................5 1.1 Symbols and signal words....................... 5 Safety instructions............................. 7 Features................................9 Installation and starting up........................ 11 Connections and controls........................14 Technical specifications........................17 Cleaning............................... 19 Protecting the environment......................20 Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 4 Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 5: General Information

    1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 6 Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 7: Safety Instructions

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 8 Never operate the device in the immediate vicinity of naked flames. NOTICE! Property damage due to incompatible accessories. Using incompatible accessories may damage the device. Only use the device together with the Ignition Stagepix Brain IP (item no. 486345). Stagepix Line 100 IP, Stagepix Line 50 IP...

  • Page 9: Features

    Features Features Stagepix Line 100 IP (item no. 486339): LED line light with 80 SMD LEDs (RGB) in 40 segments Stagepix Line 50 IP (item no. 486342): LED line light with 40 SMD LEDs (RGB) in 20 segments Control via Stagepix Brain IP (item no. 486345), not included.
  • Page 10 UV rays). The seals and screw connections of the equipment must be checked regularly to ensure a fault-free operation. In cases of doubt, consult a specialist workshop in due time. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 11: Installation And Starting Up

    When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 12 Cable connections Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 13 Connect the device via a suitable RJ45 data cable (Cat) to the Stagepix Brain IP (item no. 486345). A maximum of four Ignition Stagepix Line 100 IP LED strips (item no. 486339) or a maximum of eight Ignition Stagepix Line 50 IP LED strips (item no. 486342) can be connected in series to each serial interface of the controller.

  • Page 14: Connections And Controls

    Connections and controls Connections and controls Stagepix Line 100 IP (item no. 486339) ö & Stagepix Line 100 IP Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 15 Connections and controls Stagepix Line 50 IP (item no. 486342) & ö Stagepix Line 50 IP Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 16 3 Retaining bracket for attaching the device to a suitable truss bar 4 [OUTPUT] | RJ45 output for power supply and control of the following pixel strip 5 Safety eyelets and connector for seamless connection of multiple bars Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 17: Technical Specifications

    Mounting options Suspended Dimensions (W × H × D) Stagepix Line 100 IP: 101 mm × 85 mm × 36 mm Stagepix Line 50 IP: 51 mm × 85 mm × 36 mm Stagepix Line 100 IP, Stagepix Line 50 IP...
  • Page 18 0 °C…40 °C Relative humidity 20%…80% (non-condensing) Further information Suitable for outdoor use Colour mixture Separately controllable LEDs LED type Xin1 Fanless Remote control Not possible Wireless DMX Housing colour Black Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 19: Cleaning

    Clean with a dry soft cloth. Stubborn dirt can be removed with a slightly dampened cloth. Never use solvents or alcohol for cleaning. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...

  • Page 20: Protecting The Environment

    Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 21 Notes Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 22 Notes Stagepix Line 100 IP, Stagepix Line 50 IP LED Strip...
  • Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
