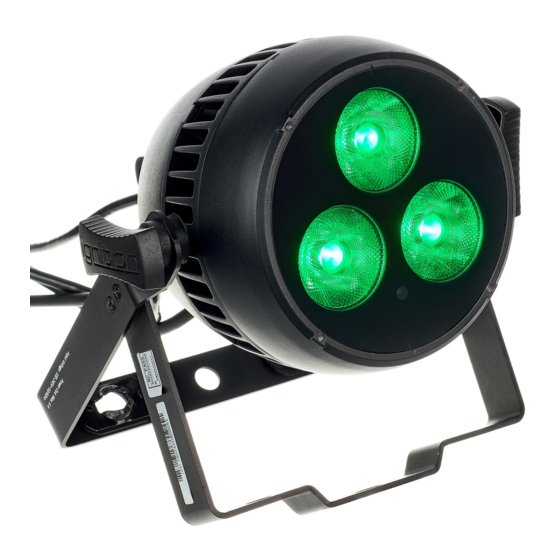

Ignition WAL-L310 Par User Manual

Led par
Hide thumbs Also See for WAL-L310 Par:
Table of Contents

Advertisement

Quick Links

Download this manual
WAL-L310 Par,
WAL-L710 Par,
WAL-L710 Par W-DMX
LED PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAL-L310 Par and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ignition WAL-L310 Par

Summary of Contents for Ignition WAL-L310 Par

  • Page 1 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 27.09.2023, ID: 474388 (SW V2.0), 474390 (SW V2.0), 477173 (SW V2.6) - document V6...

  • Page 3: Table Of Contents

    7.4 Functions in 4-channel DMX mode................... 46 7.5 Functions in 6-channel DMX mode................... 47 7.6 Functions in 9-channel DMX mode................... 48 Technical specifications........................53 Plug and connection assignment....................57 Troubleshooting............................58 Cleaning............................... 60 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 4 Table of contents Protecting the environment......................61 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 5 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 6: General Information

    1.1 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this document. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 7 Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 9: Safety Instructions

    Always dispose of packaging material properly when it is not in use. Never allow children to use the device without supervi‐ sion. Keep small parts away from children and make sure that the device does not shed any small parts (such knobs) that children could play with. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 10 The surface of the device becomes very hot during operation. Skin contact can result in burns. Never touch the device with your bare hands during operation. After switching off the device, wait for at least 15 minutes before touching it. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 11 Also refer to the specifications in the technical specifications for the device. Only use power cords with a cable cross-section designed for the required current intensity when connecting the devices in series. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 12: Features

    Sturdy double bracket for secure attachment to trusses or firm footing on the ground Omega bracket with quick lock fastener Ignition WAL-L710 Par W-DMX (item no. 477173) in addition: Built-in receiver module for wireless control, compatible with Wireless Solution (G5) Barn door, diffusion filter 25°...
  • Page 13 For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 14: Installation

    When installing and operating, make sure to follow the standards and regulations that apply in your country. Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 15 If the device is mounted on an unsuitable stand, there is a risk that the stand will fall over and cause damage. Only use stands whose maximum bearing capacity is at least as high as the weight of the device. Always ensure that the stand is stable. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 16 Use the openings provided on the two- piece bracket for attaching. Always work from a stable platform whenever installing, moving or servicing the unit. While you do this, the area underneath the device must be cordoned off. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 17 Installation Please note that this device must not be connected to a dimmer. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 18: Starting Up

    Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 19 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 20: Connections And Controls

    Connections and controls Connections and controls WAL-L310 Par (item no. 474388) MODE DOWN ö ö ö DMX In DMX Out Power In Power Out & WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 21 10 [POWER OUT] | power cord with Power Twist TR1 cable connector for powering further devices 11 [POWER IN] | power cord with Power Twist TR1 cable connector for the power supply of the device 12 [DMX IN] | DMX cable with 5-pin XLR connector (IP65) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 22 Connections and controls WAL-L710 Par (item no. 474390), WAL-L710 Par W-DMX (item no. 477173) MODE DOWN ö ö ö DMX In DMX Out Power In Power Out & WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 23 13 [POWER OUT] | lockable output socket (Power Twist TR1 IP65) for powering further devices 14 [POWER IN] | lockable input socket (Power Twist TR1 IP65) for the power supply of the device WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 24: Operating

    Press [SET] to apply settings and changed values. Press again [MODE] to call up other menu items. To activate the respectively shown menu item, press [ SET]. To return to the previous menu level without changes, press [MODE]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 25 DMX controller. The following table shows the highest pos‐ sible DMX address for the various DMX modes. Mode Display Highest possible DMX address 4-channel ‘4-CH’ 6-channel ‘6-CH’ 9-channel ‘9-CH’ WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 26 Use [UP] or [DOWN] to select the menu item ‘Signal:’ . Confirm with [SET]. Use [UP] or [DOWN] to select the menu item ‘W-DMX’ . Confirm with [SET]. To deactivate the W-DMX mode, select ‘DMX’ . Confirm with [SET]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 27 ð The existing connection is disconnected. To establish the connection to a transmitter, press [LINK] on your transmitter. Use [UP] or [DOWN] to select the menu item ‘No’ to cancel the procedure. Confirm with [SET]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 28 Use [UP] or [DOWN] to select the menu item ‘Yes’ . Confirm with [SET]. ð The automatic programme run is enabled. The automatic programmes 2 to 17 run at the predefined settings. To disable the automatic programme run, select ‘No’ . Confirm with [SET]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 29 Use [UP] or [DOWN] to select the menu item ‘Color’ . Confirm with [SET]. Use [UP] or [DOWN] to select a value between ‘00’ and ‘39’ to set a static colour. Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 30 Use [UP] or [DOWN] to select the menu item ‘Strobe’ . Confirm with [SET]. Use [UP] or [DOWN] to select a value between ‘00’ (strobe effect off) and ‘99’ (strobe effect fast) to set the strobe effect. Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 31 Use [UP] or [DOWN] to select a programme between 1 and 5 and confirm with [SET]. ð The customized programme run is enabled. The selected programme runs at the predefined settings. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 32 ‘ 0’ … ‘255’ Intensity white Strobe ‘ 0’ … ‘99’ Stroboscope Fade Time ‘ 0’ … ‘20s’ Fade time to next step Wait Time ‘ 0.1’ … ‘40s’ Step duration WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 33 Use [UP] or [DOWN] to select ‘Yes’ to send the selected programme to the connected devices. Confirm with [SET]. Use [UP] or [DOWN] to select ‘No’ to cancel the procedure. Confirm with [SET]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 34 ‘Red’ , ‘Green’ , ‘Blue’ , ‘White’ ). Confirm with [SET]. Use [UP] or [DOWN] to select a value between ‘000’ (LEDs off) and ‘255’ (full brightness) to set the intensity of the LEDs. Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 35 Menu level 2 Menu level 3 Function ‘Curves Select’ ‘ linear’ Linear course ‘Square Law’ Exponential course ‘Inv Square Law’ Logarithmic course ‘S-Type’ S-curve shaped course Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 36 Use[UP] or [DOWN] to select the desired setting for the response characteristic ot the dimmer. The following table shows the available options. Menu level 2 Menu level 3 Function ‘Dimmer Speed’ ‘Fast’ Fast dimming ‘Smooth’ Slow dimming Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 37 Use [UP] or [DOWN] to select the desired display orientation. The following table shows the available options. Menu level 2 Menu level 3 Function ‘Display’ ‘Normal’ The display is not rotated. ‘Inverted’ The display is rotated by 180°. Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 38 Menu level 2 Menu level 3 Function ‘PWM Frequency’ ‘12K’ PWM 12 kHz ‘6K’ PWM 6 kHz ‘3K’ PWM 3 kHz ‘1K’ PWM 1 kHz Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 39 If the DMX control fails, the device switches to dimmer mode. ‘Program’ If the DMX control fails, the last selected programme in the mode ‘Program’ is enabled. Press [SET] to confirm the selection. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 40 Use [UP] or [DOWN] to select the menu item ‘Lock’ . Confirm with [SET]. Use [UP] or [DOWN] to select ‘On’ to enable the key lock. Confirm with [SET]. Use [UP] or [DOWN] to select ‘Off’ to disable the key lock. Confirm with [SET]. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 41 ð The display shows the current software version and the current device temperature. NOTICE! Turn the device off, if the device temperature is beyond the admissible range. Press [MODE] to close the menu. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 42 Press [MODE] and use [UP] or [DOWN] to select the menu item ‘Information’ . Confirm with [SET]. Use [Up] or [Down] to select the menu item ‘LED Time’ . Confirm with [SET]. ð The display shows the LED runtime. Press [MODE] to close the menu. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 43 Use [UP] or [DOWN] to select the menu item ‘UID’ . Confirm with [SET]. ð The display shows the UID code. Press [MODE] to close the menu. Parameter ID Detection com‐ Sent command Received mand command DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE DEVICE_INFO SOFTWARE_VERSION_LABEL DMX_START_ADDRESS IDENTIFY_DEVICE SUPPORTED_PARAMETERS WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 44 Operating Parameter ID Detection com‐ Sent command Received mand command SENSOR_DEFINITION SENSOR_VALUE DMX_PERSONALITY DMX_PERSONALITY_DESCRIPTION RESET_DEVICE FACTORY_DEFAULTS WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 45: Menu Overview

    0...255 Blue W-DMX 0...255 W-DMX Unlock White Dmx Fail 0...255 Strobe 0...99 Hold Fade Time Dimmer 0...20s Program Wait Time Dmx Sync 1...40s On/O Send Program Lock Yes/No On/O Factory Yes/No WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 46: Functions In 4-Channel Dmx Mode

    Intensity red (0 % to 100 %) 000…255 Intensity green (0 % to 100 %) 000…255 Intensity blue (0 % to 100 %) 000…255 Intensity white (0 % to 100 %) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 47: Functions In 6-Channel Dmx Mode

    Intensity green (0 % to 100 %) 000…255 Intensity blue (0 % to 100 %) 000…255 Intensity white (0 % to 100 %) Strobe effect 000…010 open 011…255 Strobe effect, increasing speed WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 48: Functions In 9-Channel Dmx Mode

    Intensity blue (0 % to 100 %) 000…255 Intensity white (0 % to 100 %) Predefined colour 000…015 Without function 016…021 R(255)G(000)B(000)W(000) 022…027 R(255)G(015)B(000)W(000) 028…033 R(255)G(050)B(000)W(000) 034…039 R(255)G(125)B(000)W(000) 040…045 R(255)G(170)B(000)W(000) 046…051 R(255)G(210)B(000)W(000) 052…057 R(255)G(255)B(000)W(000) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 49 R(200)G(255)B(000)W(000) 064…069 R(160)G(255)B(000)W(000) 070…075 R(110)G(255)B(000)W(000) 076…081 R(070)G(255)B(000)W(000) 082…087 R(000)G(255)B(000)W(000) 088…093 R(000)G(255)B(010)W(000) 094…099 R(000)G(255)B(025)W(000) 100…105 R(000)G(255)B(040)W(000) 106…111 R(000)G(255)B(070)W(000) 112…117 R(000)G(255)B(120)W(000) 118…123 R(000)G(255)B(255)W(000) 124…129 R(000)G(100)B(255)W(000) 130…135 R(000)G(000)B(255)W(000) 136…141 R(020)G(000)B(255)W(000) 142…147 R(050)G(000)B(255)W(000) 148…153 R(080)G(000)B(255)W(000) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 50 R(130)G(000)B(255)W(000) 160…165 R(180)G(000)B(255)W(000) 166…171 R(225)G(000)B(255)W(000) 172…177 R(255)G(000)B(255)W(000) 178…183 R(255)G(000)B(220)W(000) 184…189 R(255)G(000)B(070)W(000) 190…195 R(255)G(000)B(020)W(000) 196…201 R(255)G(000)B(007)W(000) 202…207 R(000)G(000)B(000)W(255) 208…213 R(255)G(000)B(000)W(255) 214…219 R(125)G(000)B(000)W(255) 220…225 R(000)G(255)B(000)W(255) 226…231 R(000)G(120)B(000)W(255) 232…237 R(000)G(000)B(255)W(255) 238…243 R(000)G(000)B(100)W(255) 244…255 R(000)G(000)B(050)W(255) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 51 Programme 5 060…070 Programme 6 071…081 Programme 7 082…092 Programme 8 093…103 Programme 9 104…114 Programme 10 115…125 Programme 11 126…136 Programme 12 137…147 Programme 13 148…158 Programme 14 159…169 Programme 15 WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 52 236…255 Customized programme 5 000…255 Speed from slow to fast (programmes 2 to 17) Strobe effect 000…010 open 011…255 Strobe with increasing frequency (not for the customized programmes 1…5, channel 7) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 53: Technical Specifications

    Technical specifications Technical specifications 249 mm 165 mm 206 mm 132 mm WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 54 XLR connector Output connections Power supply Power cord with Power Lockable output socket Power Twist TR1 IP65 Twist TR1 cable con‐ Output current 12 A max. nector Output current 6 A max. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 55 206 mm × 277 mm × 249 mm × 291 mm × 165 mm 132 mm Weight 2.4 kg 4.3 kg Ambient conditions Temperature range –20 °C…+45 °C Relative humidity 20 %…80 % (non-condensing) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 56 Diffusion filter 25° (item no. Diffusion filter 25° (item no. 476828) 476832) 476832) Diffusion filter 40° (item no. Diffusion filter 40° (item no. Diffusion filter 40° (item no. 476830) 476831) 476831) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 57: Plug And Connection Assignment

    Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+) WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 58: Troubleshooting

    Use special DMX cables for the wiring instead of normal microphone cables. In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 59 DMX interface circuit. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...

  • Page 60: Cleaning

    Clean with a soft cloth using our lamp and lens cleaner (item no. 280122). Always dry the parts carefully. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 61 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 62 Notes WAL-L310 Par, WAL-L710 Par, WAL-L710 Par W-DMX LED PAR...
  • Page 64 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
