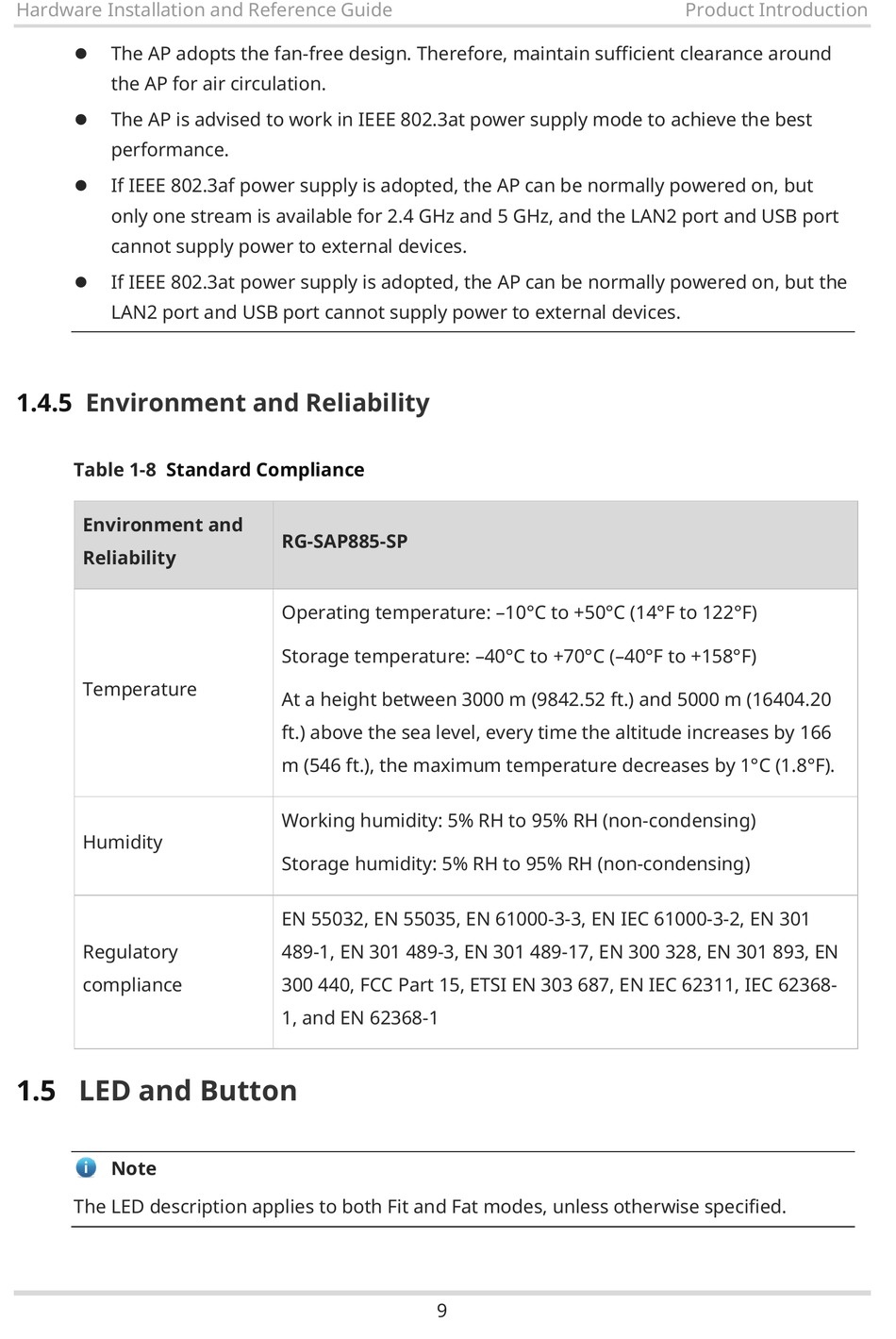

Environment And Reliability; Led And Button - Ruijie RG-SAP885-SP Hardware Installation And Reference Manual

Hardware Installation and Reference Guide
The AP adopts the fan-free design. Therefore, maintain sufficient clearance around

the AP for air circulation.
The AP is advised to work in IEEE 802.3at power supply mode to achieve the best

performance.
If IEEE 802.3af power supply is adopted, the AP can be normally powered on, but

only one stream is available for 2.4 GHz and 5 GHz, and the LAN2 port and USB port
cannot supply power to external devices.
If IEEE 802.3at power supply is adopted, the AP can be normally powered on, but the

LAN2 port and USB port cannot supply power to external devices.
1.4.5

Environment and Reliability

Table 1-8 Standard Compliance
Environment and
Reliability
Temperature
Humidity
Regulatory
compliance
1.5

LED and Button

Note
The LED description applies to both Fit and Fat modes, unless otherwise specified.
RG-SAP885-SP
Operating temperature: –10°C to +50°C (14°F to 122°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
At a height between 3000 m (9842.52 ft.) and 5000 m (16404.20
ft.) above the sea level, every time the altitude increases by
m (546 ft.), the maximum temperature decreases by 1°C (1.8°F).
Working humidity: 5% RH to 95% RH (non-condensing)
Storage humidity: 5% RH to 95% RH (non-condensing)
EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301
489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN
300 440, FCC Part 15, ETSI EN 303 687, EN IEC 62311, IEC 62368-
1, and EN 62368-1
9
Product Introduction
166
