Hardware Installation and Reference Guide

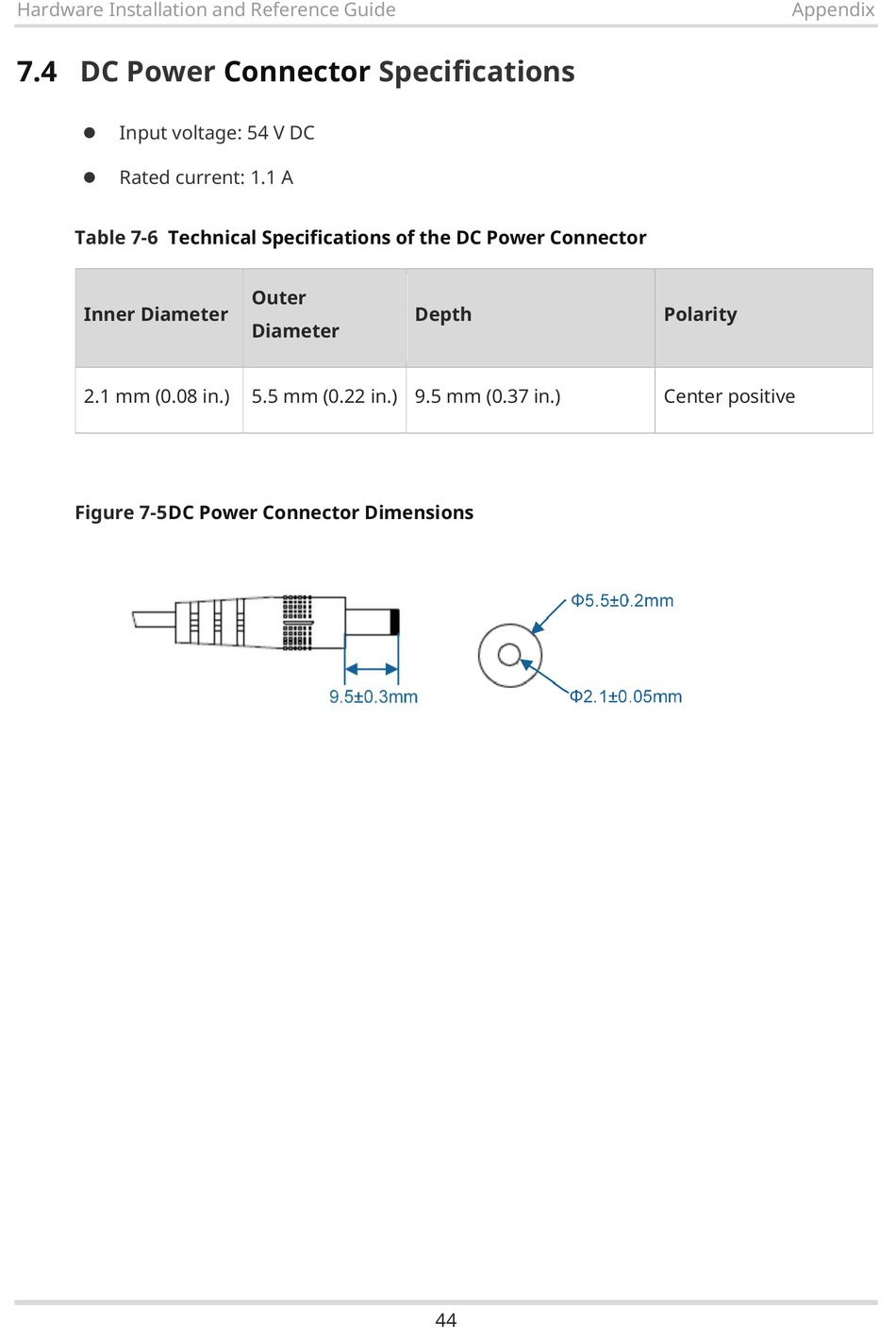

7.4 DC Power
Input voltage: 54 V DC

Rated current: 1.1 A

Table 7-6 Technical Specifications of the DC Power Connector
Inner Diameter
2.1 mm (0.08 in.)
Figure 7-5 DC Power Connector Dimensions
Connector Specifications
Outer
Diameter
5.5 mm (0.22 in.) 9.5 mm (0.37 in.)
Depth
44
Appendix
Polarity
Center positive
