Hardware Installation and Reference Guide

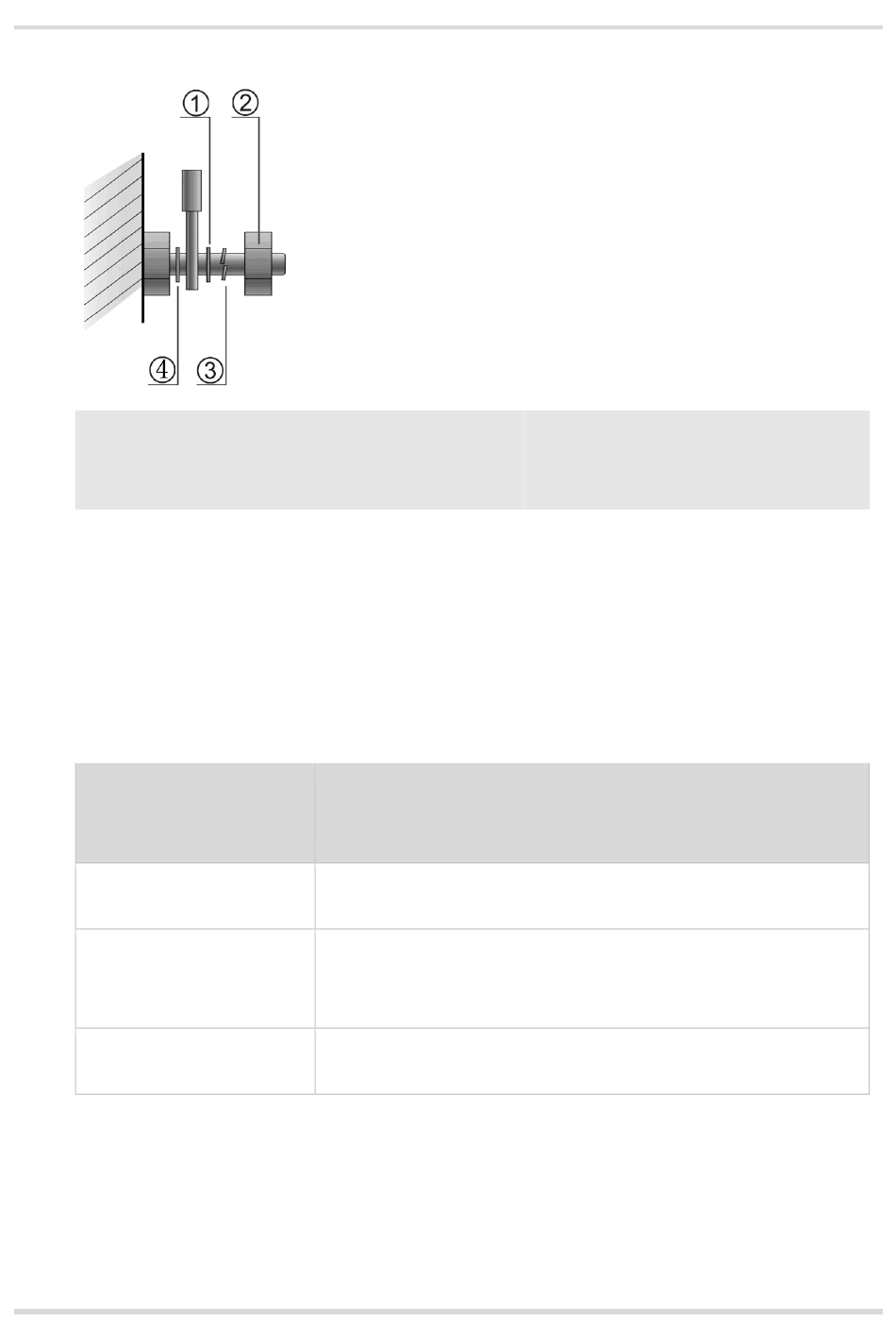

Figure 7-4 Fastening Cable Lugs
Note:
Hard power cords should be fastened in the terminal connection area to prevent
○
stress on terminal connection and cable.
Do not use self-tapping screws to fasten terminals.
○
Power cords of the same type and in the same cabling direction should be bundled
○
up into cable bunches, with cables in cable bunches clean and straight.
Cables need to be tied according to the following table.
○
Cable Bunch Diameter
(mm)
10 mm (0.39 in.)
10 mm to 30 mm (0.39
in. to 1.18 in.)
30 mm (1.18 in.)
No knot is allowed in cabling or bundling.
○
For wiring terminal blocks (such as circuit breakers) with cord end terminals, the
○
metal part of the cord end terminal should not be exposed outside the terminal
block when assembled.
① Flat washer
② Nut
Distance Between Every Binding Point (mm)
80 mm to 150 mm (3.15 in. to 5.91 in.)
150 mm to 200 mm (5.91 in. to 7.87 in.)
200 mm to 300 mm (7.87 in. to 11.81 in.)
③ Spring washer
④ Flat washer
