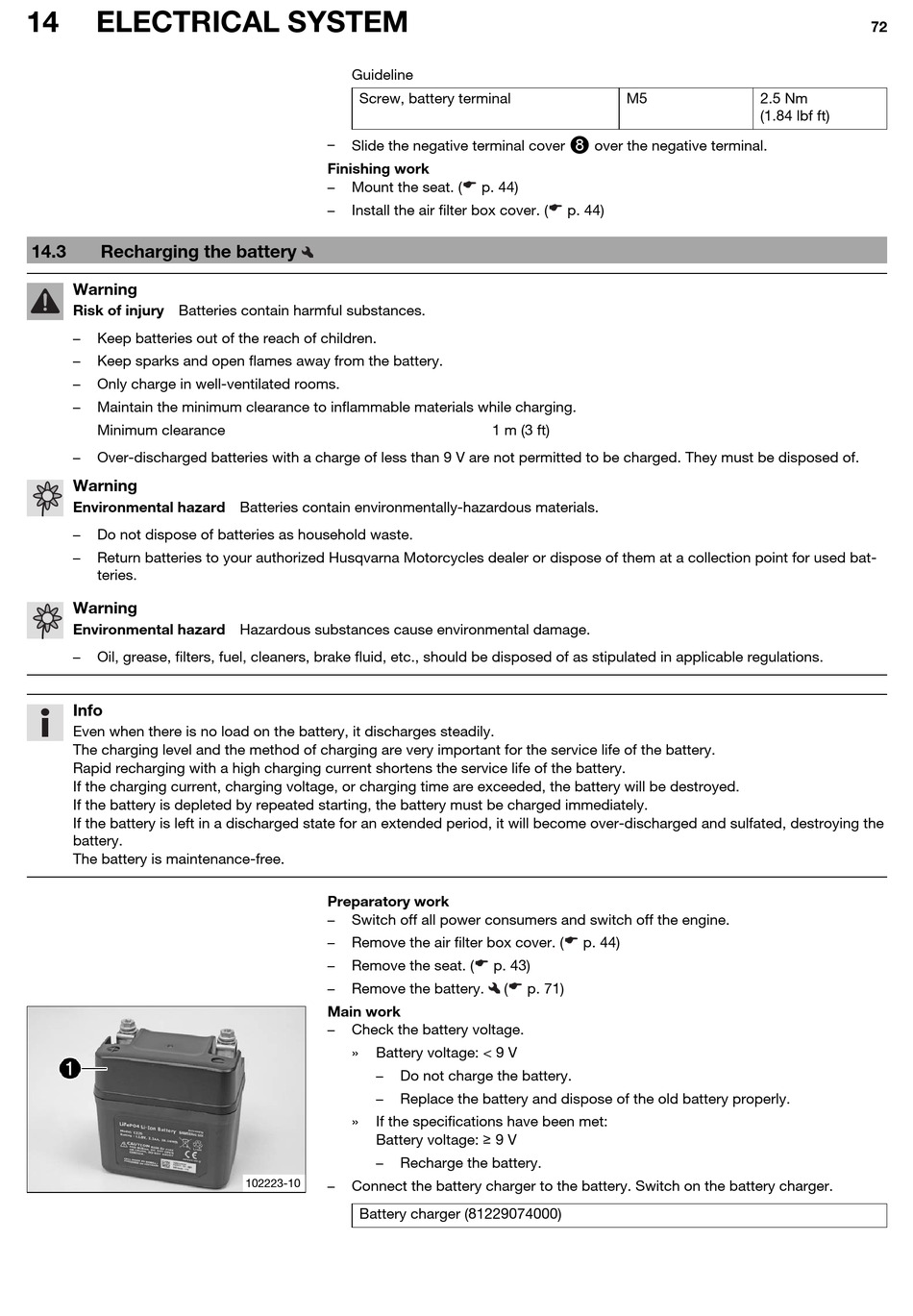

14
ELECTRICAL SYSTEM
14.3
Recharging the battery
Warning
Risk of injury Batteries contain harmful substances.
–
Keep batteries out of the reach of children.
–
Keep sparks and open flames away from the battery.
–
Only charge in well-ventilated rooms.
–
Maintain the minimum clearance to inflammable materials while charging.
Minimum clearance
–
Over-discharged batteries with a charge of less than 9 V are not permitted to be charged. They must be disposed of.
Warning
Environmental hazard Batteries contain environmentally-hazardous materials.
–
Do not dispose of batteries as household waste.
–
Return batteries to your authorized Husqvarna Motorcycles dealer or dispose of them at a collection point for used bat-
teries.
Warning
Environmental hazard Hazardous substances cause environmental damage.
–
Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Info
Even when there is no load on the battery, it discharges steadily.
The charging level and the method of charging are very important for the service life of the battery.
Rapid recharging with a high charging current shortens the service life of the battery.
If the charging current, charging voltage, or charging time are exceeded, the battery will be destroyed.
If the battery is depleted by repeated starting, the battery must be charged immediately.
If the battery is left in a discharged state for an extended period, it will become over-discharged and sulfated, destroying the
battery.
The battery is maintenance-free.
Guideline
Screw, battery terminal
–
Slide the negative terminal cover
Finishing work
–
Mount the seat. (
–
Install the air filter box cover. (
Preparatory work
–
Switch off all power consumers and switch off the engine.
–
Remove the air filter box cover. (
–
Remove the seat. (
–
Remove the battery.
Main work
–
Check the battery voltage.
»
Battery voltage: < 9 V
–
Do not charge the battery.
–
Replace the battery and dispose of the old battery properly.
»
If the specifications have been met:
Battery voltage: ≥ 9 V
–
Recharge the battery.
–
102223-10
Connect the battery charger to the battery. Switch on the battery charger.
Battery charger (81229074000)
M5
over the negative terminal.
p. 44)
p. 44)
1 m (3 ft)
p. 44)
p. 43)
(
p. 71)
72
2.5 Nm
(1.84 lbf ft)
