Introduction

1.3.3 Exploded View Drawings

1
20
1 Control card
2 Control input terminals
3 Local control panel (LCP)
4 Control card C option
5 Mounting bracket
6 Power card mounting plate
7 Power card
8 Capacitor bank assembly
9 Soft-charge fuses
10 Soft-charge card
11 DC inductor
12 Soft charge module
13 IGBT module

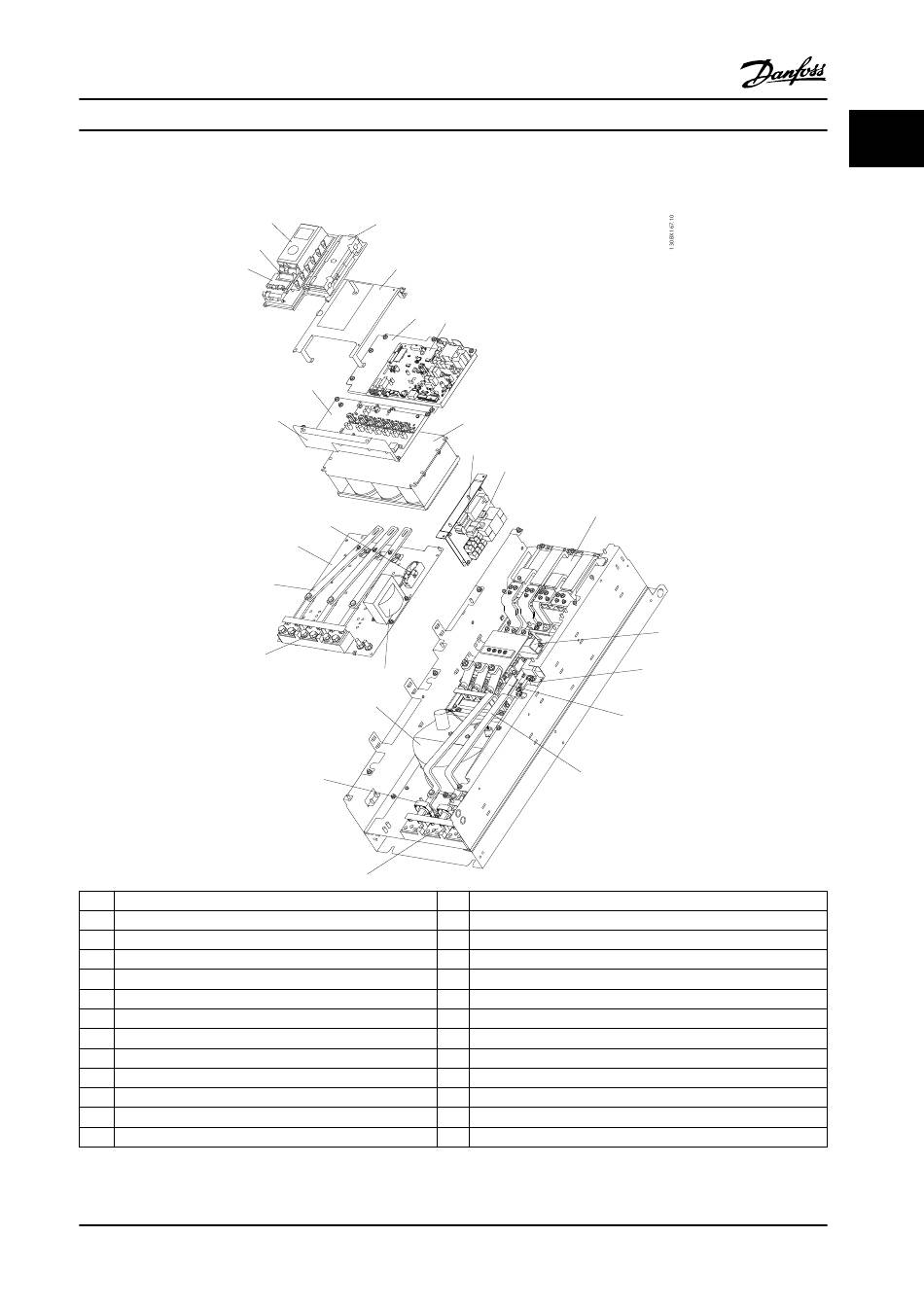

Figure 1.2 Frame Size D13 Drive Enclosure
MG21B322
Installation Manual
3
4
2
5
6
25
24
23
22
21
19
18
17
16
Danfoss A/S © 10/2015 All rights reserved.
7
8
9
10
11
15
14 SCR/diode module
15 IGBT output bus bar
16 Output motor terminals
17 Current sensor
18 Fan assembly
19 Fan transformer
20 AC input terminals
21 AC input bus bar
22 Input terminal mounting plate assembly
23 Fan fuse
24 Capacitor bank cover plate
25 IGBT gate drive card
12
13
14
