Electrical Installation
To remove the cable from the terminal:
1.
Insert a screwdriver (max. 0.016x0.1 in [0.4x2.5
mm]) in the square hole.
2.
Pull out the cable.

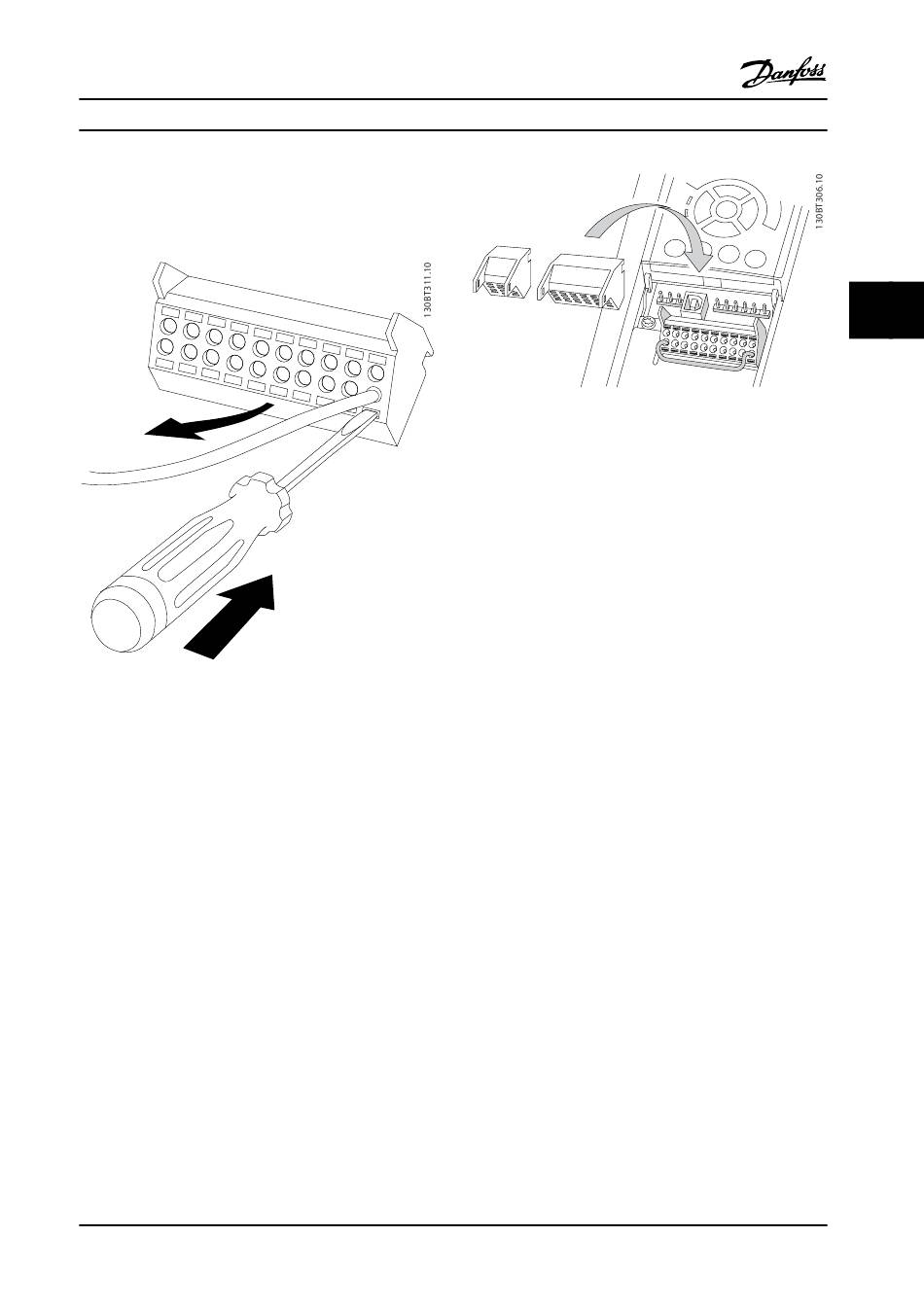

Figure 4.10 Removing the Screwdriver after Cable Insertion
MG21B322
Installation Manual
Figure 4.11 Control Terminal Locations
