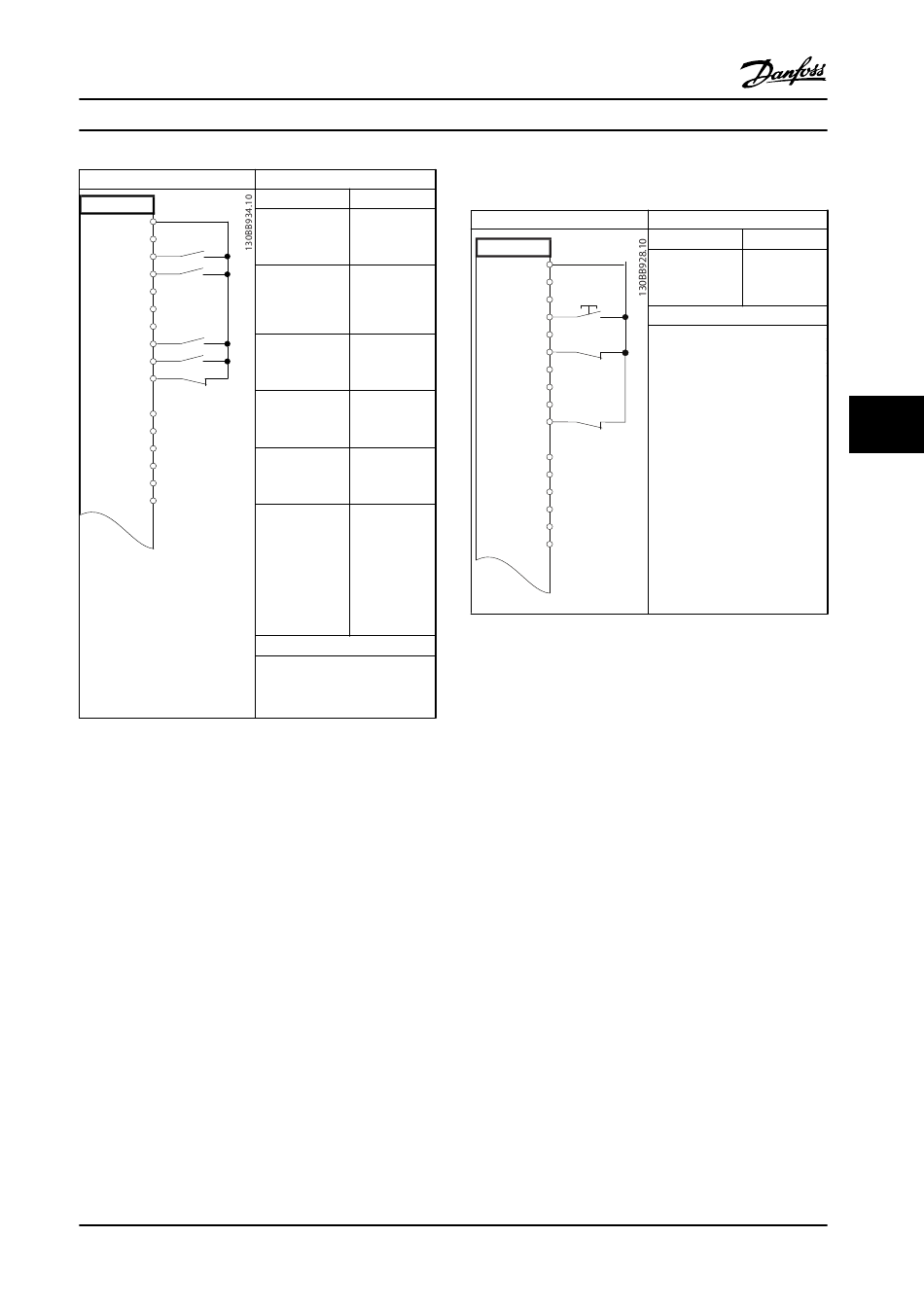

Danfoss VLT AQUA Drive FC 202 Installation Manual page 67

Application Examples
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.7 Start/Stop with Reversing and Four Preset Speeds
MG21B322
Installation Manual
Parameters
Function Setting
Parameter 5-10 [8] Start
Terminal 18
Digital Input
Parameter 5-11 [10]
Terminal 19 Reversing*
Digital Input
Parameter 5-12 [0] No
Terminal 27 operation
Digital Input
Parameter 5-14 [16] Preset ref
Terminal 32 bit 0
Digital Input
Parameter 5-15 [17] Preset ref
Terminal 33 bit 1
Digital Input
Parameter 3-10
Preset
Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
* = Default Value
Notes/comments:
D IN 37 is an option.
Danfoss A/S © 10/2015 All rights reserved.
6.2.3 External Alarm Reset
FC
+24 V 12
+24 V 13
D IN 18
D IN 19
COM 20
D IN 27
D IN 29
D IN 32
D IN 33
D IN
37
+10 V 50
A IN
53
A IN
54
COM
55
A OUT
42
COM
39
Table 6.8 External Alarm Reset
Parameters
Function Setting
Parameter 5-11 [1] Reset
Terminal 19
Digital Input
* = Default Value
Notes/comments:
D IN 37 is an option.
