MultiLab 4010-1
Selecting the
displayed
measured parameter
Stability control
(AutoRead)
& HOLD function
ba76141e03 03/2014
8

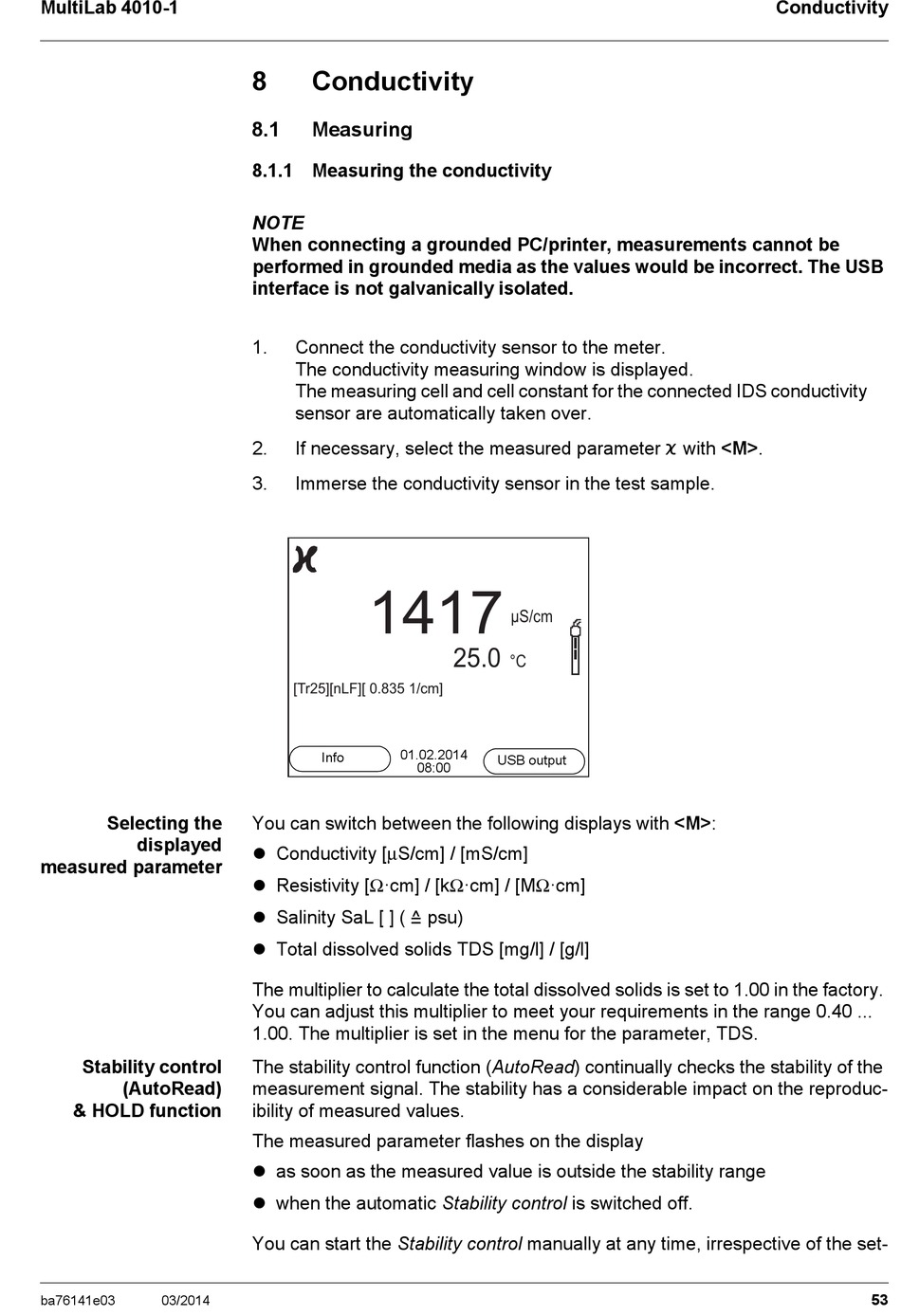

Conductivity

8.1

Measuring

8.1.1 Measuring the conductivity

NOTE
When connecting a grounded PC/printer, measurements cannot be
performed in grounded media as the values would be incorrect. The USB
interface is not galvanically isolated.
1. Connect the conductivity sensor to the meter.
The conductivity measuring window is displayed.
The measuring cell and cell constant for the connected IDS conductivity
sensor are automatically taken over.
2. If necessary, select the measured parameter
3. Immerse the conductivity sensor in the test sample.
1417
[Tr25][nLF][ 0.835 1/cm]
01.02.2014
Info
08:00
You can switch between the following displays with <M>:
 Conductivity [μS/cm] / [mS/cm]
 Resistivity [Ω·cm] / [kΩ·cm] / [MΩ·cm]
≙
 Salinity SaL [ ] (
 Total dissolved solids TDS [mg/l] / [g/l]
The multiplier to calculate the total dissolved solids is set to 1.00 in the factory.
You can adjust this multiplier to meet your requirements in the range 0.40 ...
1.00. The multiplier is set in the menu for the parameter, TDS.
The stability control function (AutoRead) continually checks the stability of the
measurement signal. The stability has a considerable impact on the reproduc-
ibility of measured values.
The measured parameter flashes on the display
 as soon as the measured value is outside the stability range
 when the automatic Stability control is switched off.
You can start the Stability control manually at any time, irrespective of the set-
μS/cm
25.0
°C
USB output
psu)
Conductivity
ϰ
with <M>.
53
