Summary of Contents for Xylem SI Analytics Lab 745
- Page 2 Gebrauchsanleitung ....................Seite 3 ... 38 Wichtige Hinweise: Die Gebrauchsanleitung ist Bestandteil des Gerätes. Vor der ersten Inbetriebnahme bitte sorgfältig lesen, beachten und anschließend aufbewahren. Aus Sicherheitsgründen darf das Gerät ausschließlich für die beschriebenen Zwecke eingesetzt werden. Bitte beachten Sie auch die Gebrauchsanleitungen für eventuell anzuschließende Geräte.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Technical Specifications of the meter Lab 745 / 845 / 945 ......... 41 Intended Use ........................... 41 User qualification ........................41 Specifications .......................... 41 Warning and safety informatiom ..................... 43 Set up and Commissioning .................. 44 Scope of delivery ........................ - Page 4 Calibration method OPR ......................62 9.7.1 Menu structure ........................62 9.7.2 Calibration ..........................62 Calibration method ISE ......................63 9.8.1 Menu structure ........................63 9.8.2 Calibration ..........................63 10 Meter Lab 945 ......................65 10.1 Areas of use ..........................65 10.2 Basic model ..........................
-
Page 5: Technical Specifications Of The Meter Lab 745 / 845 / 945

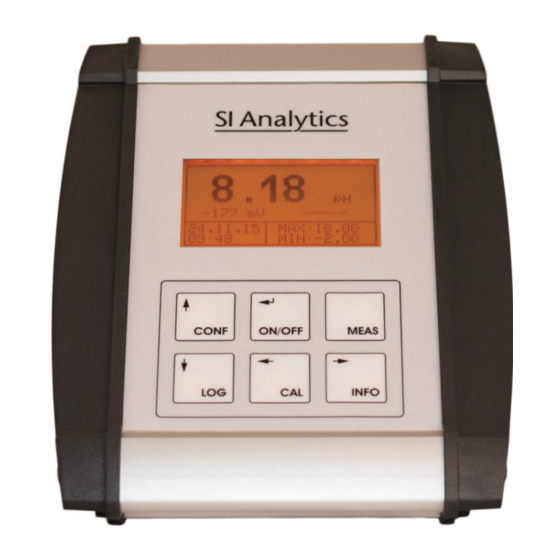

Technical Specifications of the meter Lab 745 / 845 / 945 Intended Use The meter Lab 745 / 845 / 945 is intended for the measurement and documentation of analysis parameters while adhering to the technical specifications. Any use beyond this purpose - as well as your own modifications or expansions - is not in conformity with prohibited. - Page 6 Lab 745 0 … 200%; 0 … 20 mg/l; Temperature: -10 … 100 °C Measurement value: Resolution: 0.1 %; 0.01 mg/l; 0.1 °C Temp. compensation: automatic with NTC or fixed temperature ±1 digit, ± 0.5 % of measuring range, T [°C] ± 0.1 (5…50 °C) Accuracy: Connections: 8-pin flange plug, 4-pin interface USB port...
-
Page 7: Warning And Safety Informatiom
Warning and safety informatiom The meter Lab 745 / 845 / 945 has the protection class III. It was manufactured and tested according to DIN EN 61 010, Part 1, "Protective Measures for electronic measurement devices and control devices" and has left the factory in an impeccable condition as concerns safety technology. -
Page 8: Set Up And Commissioning
Set up and Commissioning Scope of delivery The scope of delivery is shown on the included packing list. There is a detailed list of the individual sets in chapter 11 Scope of delivery Accessories can be found in chapter 12 Accessories Unpacking and Setup The meter and all accessories were carefully inspected for function and size accuracy at the factory. -
Page 9: Device Description
Device description Measuring inputs Fig. 1 Lab 845 Fig. 2 Lab 745 and Lab 945 1) Sensor connection (black) Reference 2) Sensor connection (blue) Temperature 3) Sensor connection 4) USB port 5) Main Supply On the front of the meter, there are special connectors to connect the sensor and a USB interface cable. -
Page 10: Controls
Controls The meter has an intuitive clear text menu structure. Fig. 3 Switching Measuring Open menu Configuration Data logger Calibration Information ON/OFF mode Navigating Selection / Measuring Cursor up Cursor down Cursor left Cursor right the menu ENTER mode Change / Position value Position value Save / confirm... -
Page 11: Display
Display Fig. 4 1) Main measured value 2) Fixed temperature active 3) Temperature compensation (applies only to Lab 945) 4) Temperature 5) Min. main measured values 6) Max. main measured values 7) Time 8) Date 9) Secondary measured value Password protection It´s possible to protect the menu items Calibration (CAL) and Configuration (CONF) by a password. -
Page 12: Configuration Of Basic Settings
Configuration of basic settings Via (CONF) you will get to the menu item "Configuration" and then on to submenu item "General". The entire structure of the menu (CONF) is displayed graphically for each meter. Lab 745 see 8.4, Lab 845 see 9.4, Lab 945 see 10.4 Under "General", the following device-relevant basic settings can be configured: ... -
Page 13: Configuration Of The Clock
Configuration of the clock Configuration of the clock: "General" > "Clock", then make the corresponding setting. Via (CONF +1) or (LOG -1) you selected the desired setting. (ON/OFF) confirms and saves your setting. (MEAS) terminates the entry dialog without transferring the value. Configuration of the language Configuration of the language: "General"... -
Page 14: Data Logger
Data logger The meter has an integrated ring memory data logger with real-time clock for 4,000 data sets (date, time, main measured value, secondary measured value, measuring temperature). The saved data can either be viewed directly on the display or read via the USB interface. (CONF) will take you to the menu item "Configuration"... -
Page 15: Info
Info General In this menu item, the first page shows the information about the current calibration values and the last calibration time (date). The second page shows the maximum and minimum values of the main measured value and the time when these values are measured. -
Page 16: Meter Lab 745
Meter Lab 745 Areas of use The oxygen meter is used to determine of dissolved oxygen as per the German Standard procedures for water, wastewater and mud examination as per DIN EN ISO 5814:2013 and combines the advantages of compact dimensions with the precision and the comfort of a lab meter. It is excellent for the control of the oxygen content in surface water, in wastewater and for the wastewater treatment. -
Page 17: Menu Structure (Conf) Lab 745
Menu structure (CONF) Lab 745... -
Page 18: Configuration Lab 745
Configuration Lab 745 8.5.1 Basic settings Via (CONF) you will go to the menu item "Configuration". The entire structure of the menu (CONF) is displayed graphically in 8.4. The following device-relevant basic settings can be configured: data logg. Data logger (... -
Page 19: Calibration Method Oxygen
Calibration method Oxygen 8.6.1 Menu structure Calibration Input Temp.Offs. One point Automatic Back Slope B>20 °C B<20 °C Back CAL INFORMATION 8.6.2 Calibration Select (CAL) to get to the menu item "Calibration" and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. - Page 20 8.6.2.2 Temperature offset Under menu item "Temp.Offs." you can enter an offset for the temperature value. > Select "Temp.Offs.". An input dialog allows you to set up the offset. This value can be positive or negative. Via (CONF +1) or (LOG -1) you selected the desired setting. (ON/OFF) confirms and saves your setting.
-
Page 21: Meter Lab 845
Meter Lab 845 Areas of use The pH/ORP/ISE meter is used to determine the pH value, the chain tension as well as the temperature. The meter simultaneously measures the pH value, the chain tension and the temperature. The Lab845 combines the advantages of a compact design with the precision and comfort of a lab meter with a high measuring accuracy, multi-function display, integrated data logger and a robust aluminum housing. -
Page 22: Menu Structure (Conf) Lab 845
Menu structure (CONF) Lab 845... -
Page 23: Configuration Lab 845
Configuration Lab 845 9.5.1 Basic settings Via (CONF) you will go to the menu item "Configuration". The entire structure of the menu (CONF) is displayed graphically in 9.4. The following device-relevant basic settings can be configured: data logg. Data logger (... -
Page 24: Calibration Method Ph
Calibration method pH 9.6.1 Menu structure Calibration Input Temp.Offs. Two point Automatic Back Asymmetrie Slope Back CAL INFORMATION 9.6.2 Calibration Select (CAL) to get to the menu item "Calibration" and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. - Page 25 9.6.2.3 Two point calibration > You will be prompted to immerse the sensor into the first calibration medium (ambient air). Confirm this dialog with (ON/OFF). The currently measured values will be displayed. If the measured values (pH + temperature!) are in a stable condition, reconfirm by pressing (ON/OFF).
-
Page 26: Calibration Method Opr
Calibration method OPR 9.7.1 Menu structure Calibration Input Temp.Offs. Back Offset CAL INFORMATION 9.7.2 Calibration Select (CAL) to get to the menu item "Calibration" and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. -
Page 27: Calibration Method Ise
Calibration method ISE 9.8.1 Menu structure Calibration Input Back Two point Temp.Offs. Slope Meas.val. Input.val. Back CAL INFORMATION 9.8.2 Calibration Select (CAL) to get to the menu item "Calibration" and then on to the Calibration menu: > The calibration procedures for the respective sensor type are displayed. Choose your desired calibration procedure by selecting the respective menu item. - Page 28 9.8.2.2 Temperature offset Under menu item "Temp.Offs." you can enter an offset for the temperature value. > Select "Temp.Offs.". An input dialog allows you to set up the offset. This value can be positive or negative. Via (CONF +1) or (LOG -1) you selected the desired setting. (ON/OFF) confirms and saves your setting.
-
Page 29: Meter Lab 945
Meter Lab 945 10.1 Areas of use The Lab 945 is used to determine electrical conductivity, salinity and temperature and combines the advantages of a compact design with the precision and comfort of a lab meter. Simultaneous conductivity, salinity and temperature measurement, high measurement accuracy, multi-functional display, integrated data logger and a robust aluminum housing mark this meter. -
Page 30: Menu Structure (Conf) Lab 945
10.4 Menu structure (CONF) Lab 945... -
Page 31: Configuration Lab 945
10.5 Configuration Lab 945 10.5.1 Basic settings Via (CONF) you will go to the menu item "Configuration". The entire structure of the menu (CONF) is displayed graphically in 10.4. The following device-relevant basic settings can be configured: data logg. Data logger (... -
Page 32: Configuration Of The Measuring Range "M Range
10.5.3 Configuration of the measuring range "M range" > Configuration of the measuring range: First select the "M range">, then the measuring range. The measuring range has 7 settings on the meter. Measuring range Main measured variable Secondary measured variable 200µS Saline 2000µS... -
Page 33: Calibration Method Conductivity
10.6 Calibration method Conductivity 10.6.1 Menu structure Calibration Input Back Temp.Offs. One point Automatic Cell const. Temp. coefficient. Cable offset TDS factor Back CAL INFORMATION 10.6.2 Calibration Select (CAL) to get to the menu item "Calibration" and then on to the Calibration menu: >... - Page 34 10.6.2.2 Temperature offset Under menu item "Temp.Offs." you can enter an offset for the temperature value. > Select "Temp.Offs.". An input dialog allows you to set up the offset. This value can be positive or negative. Via (CONF +1) or (LOG -1) you selected the desired setting. (ON/OFF) confirms and saves your setting.
-
Page 35: Scope Of Delivery
Scope of delivery Lab 745 Set Lab oxygen meter Power supply Tripod Oxygen measuring cell Ox1113T Lab 845 Set/BL19pH Lab pH meter Power supply Tripod BlueLine 19 pH DIN buffer in ampules (6 ea.) Lab 845 Set/BL25pH Lab pH meter Power supply Tripod BlueLine 25 pH... -
Page 36: Accessories
Accessories Tripod set with adapter, rod and electrode holder for Lab 745/845/945 Electrode holder Z 611 Power supply Extended range power supply for Lab 745/845/945 Z 612 Connecting cable USB cable with data transfer software for Lab 745/845/945 Z 613 Replacement legs 4 ea. -
Page 37: Maintenance
Maintenance The meter must never be cleaned with an aggressive solvent (such as acetone)! Do not use stiff brushes or metal objects! Wipe the meter down with a moist, lint-free cloth every once in a while. For the maintenance and storage of the sensors and fittings to be connected, the notes and regulations in the respective instructions and data sheets apply. - Page 40 SI Analytics GmbH Hattenbergstr. 10 Tel. +49.(0)6131.66.5111 Fax. +49.(0)6131.66.5001 55122 Mainz Deutschland, Germany, Allemagne, Alemania E-Mail: si-analytics@xyleminc.com www.si-analytics.com SI Analytics is a trademark of Xylem Inc. or one of its subsidiaries. © 2016 Xylem, Inc. Version 160301 US...
