Spectrum Analyzer Measurements
1
1. Status panel provides quick access to all the spectrum analyzer menu settings. See
on page 3-109.
2. The C/I table shows the carrier-to-interference ratio (dB), carrier power and interference power measured in
dBm.The Pass/Fail status is populated only if the limits are toggled on in LIMITS menu.
3. The SETUP menu is where the C/I settings are configured. See

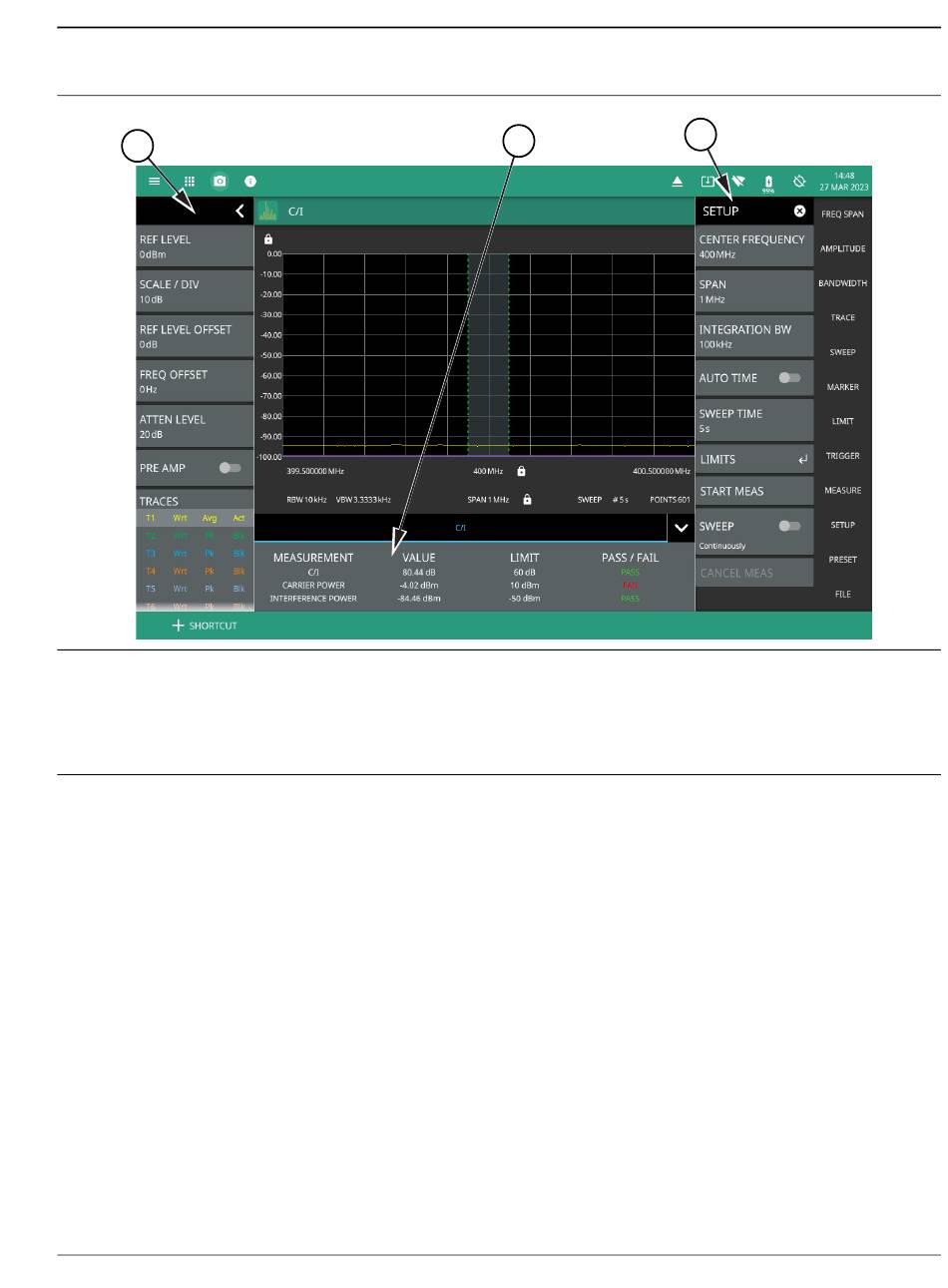

Figure 3-85. Carrier-to-Interference measurement
Spectrum Analyzer MG
2
"SETUP Menu (C/I)" on page
PN: 10580-00447 Rev. E
3-22 Carrier-to-Interference
3
"STATUS PANEL (C/I)"
3-110.
3-107
