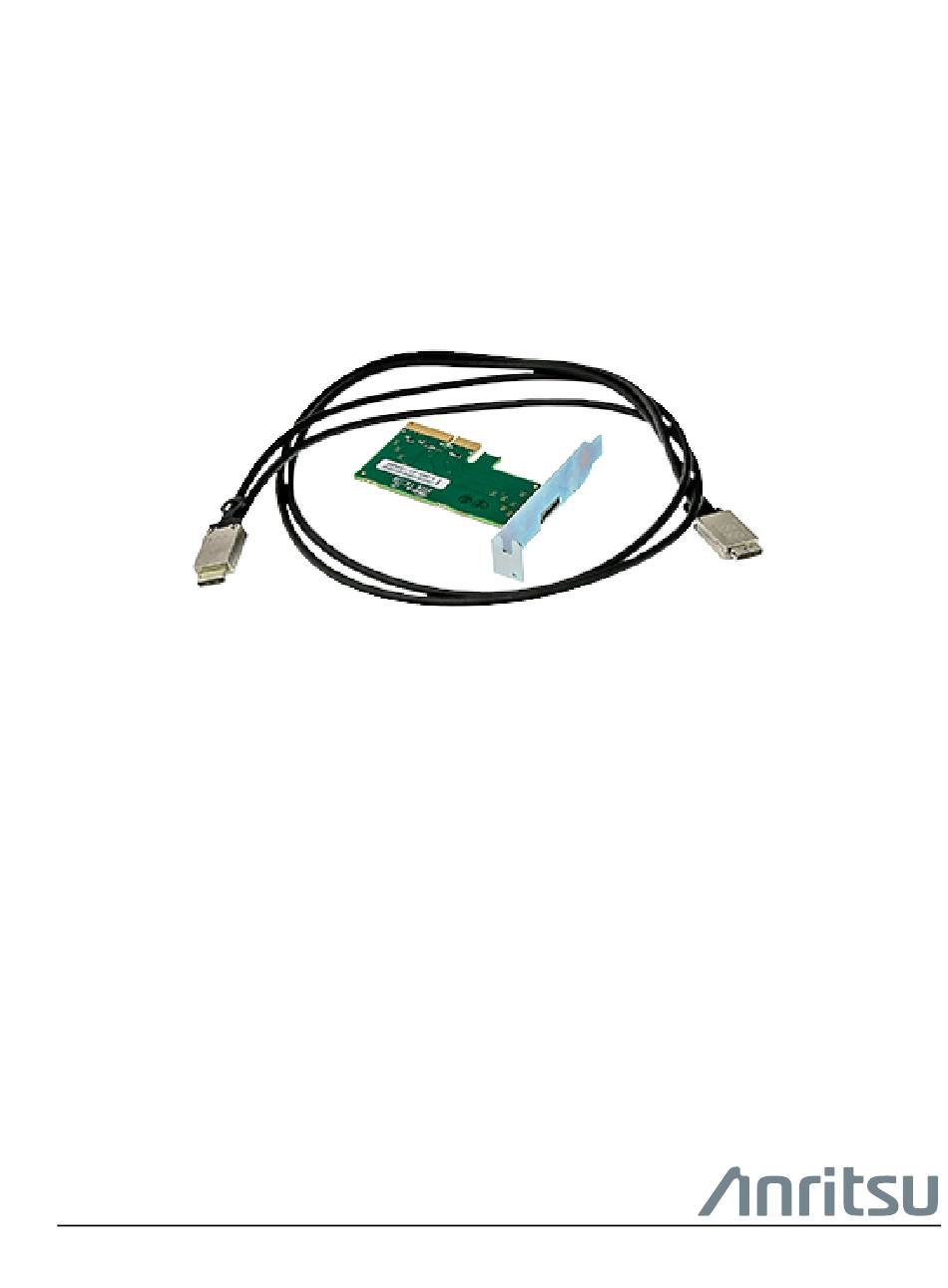

- Page 1 Installation Guide MA25101A IQ Streaming PCIe Kit Anritsu Company Part Number: 10580-00476 490 Jarvis Drive Revision: C Morgan Hill, CA 95037-2809 Published: October 2023 Copyright 2023 Anritsu Company...
- Page 2 Anritsu Company. Export Management The Anritsu products identified herein and their respective manuals may require an Export License or approval by the government of the product country of origin for re-export from your country. Before you export these products or any of their manuals, please contact Anritsu Company to confirm whether or not these items are export-controlled.
-
Page 3: Table Of Contents
Contact Anritsu for Sales and Service ........ -
Page 4: Chapter 1-General Information
Chapter 1 — General Information Introduction This installation guide provides installation procedures for the Streaming PCIe card for use with the Anritsu MS2090A and the MS27201A spectrum analyzers. The supporting analyzers use the MX280005A IQ Signal Master software and the installed PCIe data transfer card for capturing and streaming large IQ captures from supported Anritsu analyzers. -
Page 5: Product Documentation
1-3 Product Documentation General Information Product Documentation Refer to the Anritsu MS2090A, MS27201A, and MX280005A product pages for more information on the instruments and large data streaming capture using the MA25101A IQ Streaming PCIe Kit. https://www.anritsu.com/en-us/test-measurement/products/ms2090a https://www.anritsu.com/en-us/test-measurement/products/ms2720xa https://www.anritsu.com/en-us/test-measurement/products/mx280005a Installing the PCIe Card The PCIe card must be installed manually into the PC. -
Page 6: Pc/Pcie Connections
General Information 1-5 PC/PCIe Connections PC/PCIe Connections The PC/PCIe connections to the analyzer are described below. • “Connecting the MS2090A” • “Connecting the MS27201A” on page 1-4 Connecting the MS2090A Refer to Figure 1-2. Open the side cover of the MS2090A to locate the Data Out and Ethernet ports. Use the PCIe Nano pitch cable to connect the MS2090A Data Out port to the PCIe expansion card port on the Personal Computer. -
Page 7: Connecting The Ms27201A
Follow the series of on-screen instructions during installation.g When the Anritsu analyzer boots up, it does not automatically detect the FPGA image that supports PCIe data transfer. To detect the PCIe card, the analyzer and PC must be powered off and then powered on as described below: Power on the Anritsu analyzer until it completely reboots and begins sweeping. - Page 8 Anritsu Company 490 Jarvis Drive Anritsu utilizes recycled paper and environmentally conscious inks and toner. Morgan Hill, CA 95037-2809 http://www.anritsu.com...
