Trace Detector Types

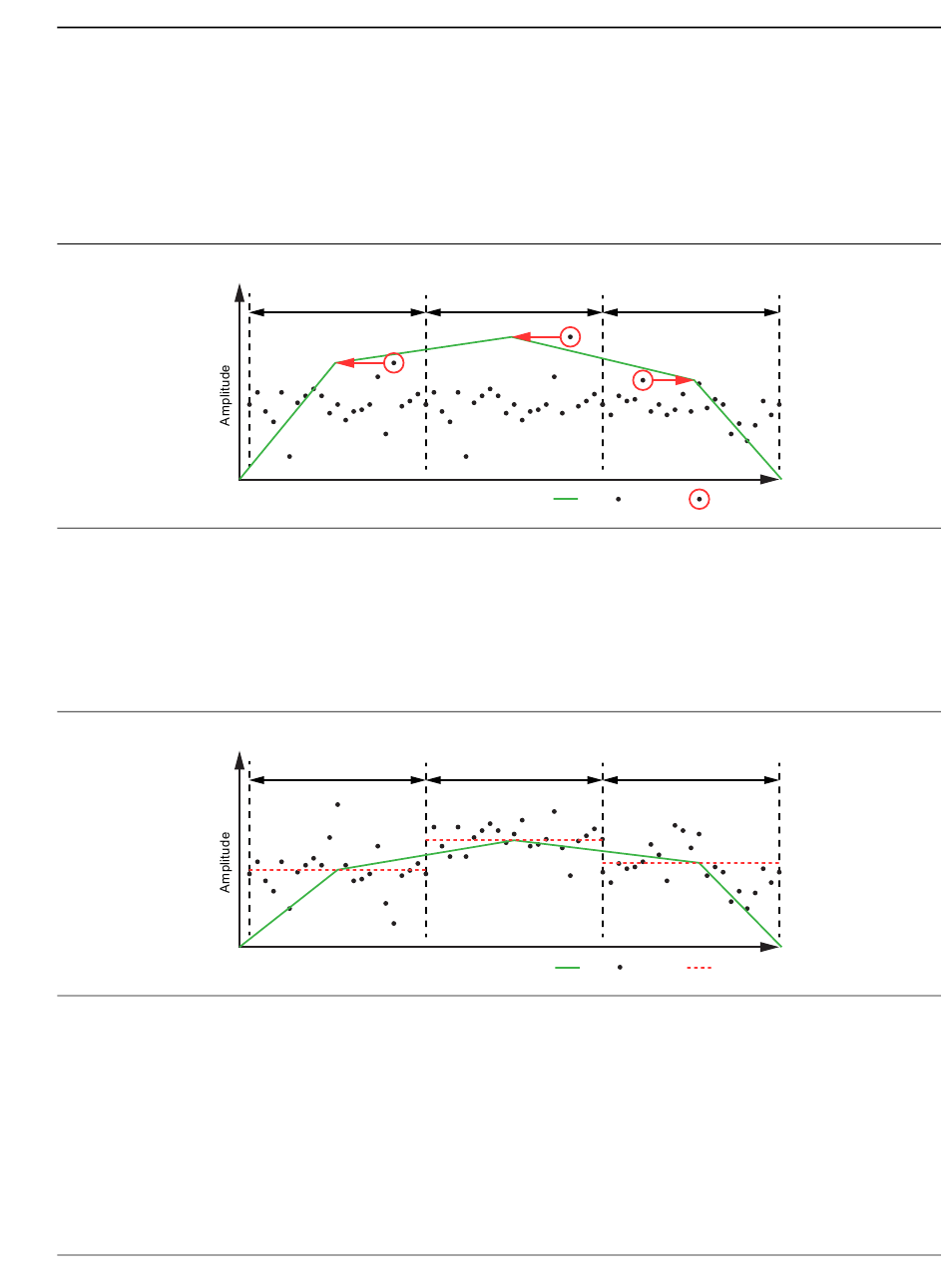

The figure below illustrates how the available detector types determine a trace data point from the sampled
data.
Peak
Shows the maximum amplitude of sampled data for each display point, assuring that a narrow peak is not
missed.
Figure 3-14. Peak Detector Type
RMS/Avg
In the default case, when the VBW/AVERAGE type is set to Linear, this method shows the linear average
amplitude of sampled data for each display point, before converting to display units. When VBW/AVERAGE
type is set to Log, this method shows the traditional average of log (power), such as dBm for each display point,
before converting to display units. Not available in zero span.
Figure 3-15. RMS/Avg Detector Type
