Removing a Hard Disk Drive from the CD Drive Bay
1. Remove the left-side panel and top front panel as explained in the
2. Disconnect the interface and power cables from their connectors on

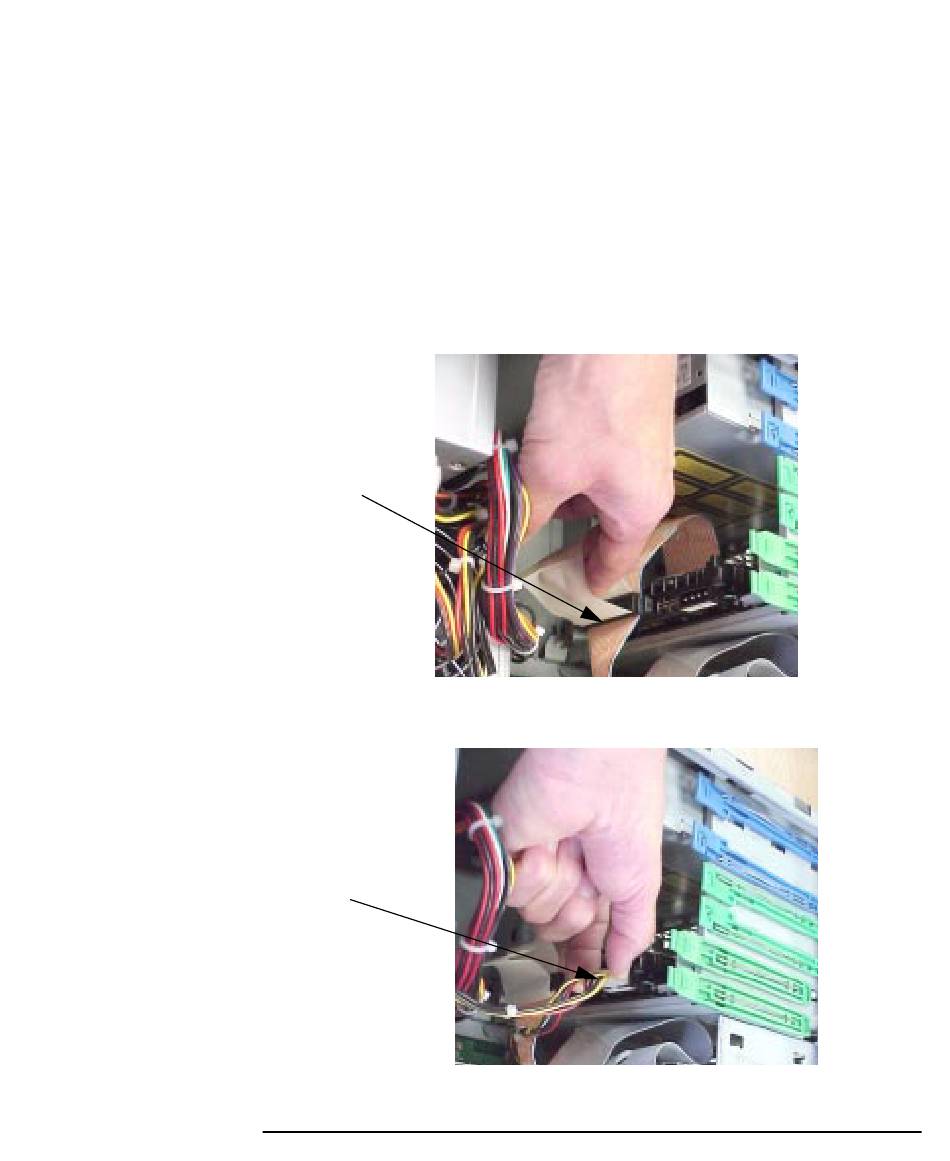

Figure 2-65 Disconnect the Hard Disk Drive Interface Cable
Figure 2-66 Disconnect Hard Disk Drive Power Cable
3. Remove the hard disk drive from the third-internal shelf down from
Chapter 2
Opening Your Personal Workstation and Installing Accessories
sections "Removing the Left-Side Panel" and "Top Section Removal"
in this chapter.
the back of the hard disk drive. See the Figure 2-65 and Figure 2-66.
Interface Cable
Power Cable
Hard Disk Drives
105
