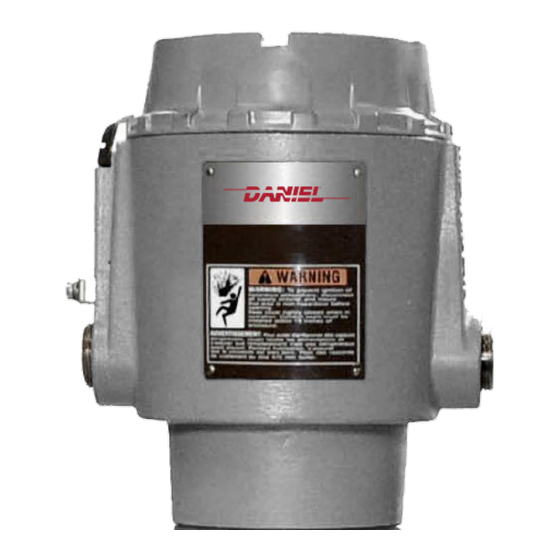

DANIEL 1500 Series User Manual

Liquid turbine meter
Hide thumbs Also See for 1500 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
DANIEL
®
LIQUID TURBINE METER
USER MANUAL
SERIES 1500 LIQUID TURBINE METER
NPS 1 THROUGH 2.5
Decades Proven. Field Chosen.
™
OCTOBER 2022

Advertisement

Table of Contents
loading

Related Manuals for DANIEL 1500 Series

Summary of Contents for DANIEL 1500 Series

  • Page 1 DANIEL ® LIQUID TURBINE METER USER MANUAL SERIES 1500 LIQUID TURBINE METER NPS 1 THROUGH 2.5 Decades Proven. Field Chosen. ™ OCTOBER 2022...

  • Page 2: Table Of Contents

    5.2 Torque information........................63 5.3 Tools required for LME disassembly/assembly................63 Chapter 6 Installation procedure....................65 6.1 Cathodic protection........................65 6.2 Mechanical components assembly.................... 65 6.3 Assemble the electronic components..................66 Chapter 7 Testing........................69 7.1 Test the turbine meter....................... 69 Part III Operate User manual www.Daniel.com...
  • Page 3 Chapter 11 Spare parts......................101 11.1 Recommended spare parts....................101 Chapter 12 Decommission the turbine meter................103 12.1 Shut down the turbine meter....................103 12.2 Turbine meter disassembly/assembly..................103 12.3 Shipment of the meter......................104 Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 4: Part I Plan

    SERIES 1500 LIQUID TURBINE METER User manual Plan P/N 3-9008-507 September 2020 Part I Plan User manual www.Daniel.com...

  • Page 5: Chapter 1 Introduction

    September 2020 Introduction Purpose of this manual Daniel Daniel designed this manual to guide owners and personnel in the installation, operation and maintenance of the Daniel Series 1500 Liquid Turbine Meter Manual, 3-9008-507. It is imperative that product owners and operation personnel read and follow the information contained in this manual to ensure that the turbine meter is installed correctly and is operating according to the design, certifications and safety considerations.
  • Page 6 Failure to comply may result in personnel injury. WARNING RISK TO PERSONNEL AND EQUIPMENT Failure to follow the installation, operation or maintenance instructions for a Daniel product could lead to serious injury or death from explosion or exposure to dangerous substances. To reduce the risk: •...

  • Page 7: Warranty Restrictions

    Daniel assumes no responsibility for incidents, or consequences of incidents, occurring as a result of the use of this product by others than Daniel or its designated personnel, and have no liability whatsoever for any such work.

  • Page 8: Description Of The Series 1500 Liquid Turbine Meter (Ltm)

    1.6.1 General features of the turbine meter The Daniel Series 1500 Liquid Turbine Meter (LTM) is a volumetric flow metering and transmitting device used for accurate measurement of hydrocarbons and other related process fluids. The design allows high operational flow rates, extended flow ranges and sustained performance capability.
  • Page 9 • All Daniel Series 1500 Liquid Turbine Meters have, as standard, the LME which is fitted with two pickoffs and a dual channel preamplifier. •...
  • Page 10 User manual September 2020 P/N 3-9008-507 Configurations for LME assembly - Standard enclosure, LME assembly - High temperature RME assembly - Pipe mount RME assembly - Wall mount are shown below. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 11 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 LME assembly - Standard enclosure Figure 1-1: Part identification for a standard enclosure User manual www.Daniel.com...
  • Page 12 LME housing and Sensor housing is a spigot joint with a minimum axial length of 26.16 mm (1.030 in), radial length of 3.18 mm (0.125 in), and a clearance of 0.07 mm (0.0028 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 13 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 LME assembly - Internal Totalizer Figure 1-2: Part identification for the LME with Internal Totalizer User manual www.Daniel.com...
  • Page 14 The joint between the LME cover and housing is a threaded joint. The joint between the LME housing and sensor housing is a cylindrical joint which has an axial length of 25.4 mm (1 in) and a clearance of 0.038 mm (0.0015 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 15 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 LME assembly - with Two Preamps Figure 1-3: Part identification Two preamps configuration User manual www.Daniel.com...
  • Page 16 The joint between the LME cover and housing is a threaded joint. The joint between the LME housing and sensor housing is a cylindrical joint which has an axial length of 25.4 mm (1 in) and a clearance of 0.038 mm (0.0015 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 17 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 LME assembly - High temperature Figure 1-4: Part identification for a high temperature enclosure User manual www.Daniel.com...
  • Page 18 LME housing and Sensor housing is a spigot joint with a minimum axial length of 26.16 mm (1.030 in), radial length of 3.18 mm (0.125 in), and a clearance of 0.07 mm (0.0028 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 19 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 RME assembly - Pipe mount Figure 1-5: Part identification for an RME assembly - Pipe mount User manual www.Daniel.com...
  • Page 20 RME housing and Sensor housing is a spigot joint with a minimum axial length of 26.16 mm (1.030 in), radial length of 3.18 mm (0.125 in), and a clearance of 0.07 mm (0.0028 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 21 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 RME assembly - Wall mount Figure 1-6: Part identification for an RME assembly - Wall mount User manual www.Daniel.com...
  • Page 22 RME housing and Sensor housing is a spigot joint with a minimum axial length of 26.16 mm (1.030 in), radial length of 3.18 mm (0.125 in), and a clearance of 0.07 mm (0.0028 in). Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 23 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 Meter housing internal components - NPS 1 The information below identifies and describes the NPS 1 meter housing components. Figure 1-7: Part identification for an NPS 1 LTM User manual www.Daniel.com...
  • Page 24 Daniel Flow sales representative. For a bidirectional assembly, item number 56 will be replaced with item number 52. Note For alternative materials and NACE, contact Daniel Flow sales and service. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 25 USER MANUAL User manual Introduction P/N 3-9008-507 September 2020 Meter housing internal components - NPS 1.5 The information below identifies and describes the NPS 1.5 meter housing components. Figure 1-8: Part identification for a NPS 1.5 LTM User manual www.Daniel.com...
  • Page 26 Daniel Flow sales representative. For a bidirectional assembly, item number 57 will be replaced with item number 52. Note For alternative materials and NACE, contact Daniel Flow sales and service. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 27 P/N 3-9008-507 September 2020 Meter housing internal components - NPS 2 and 2.5 The information below identifies and describes the 2 and 2.5 meter housing components. Figure 1-9: Part identification for a NPS 2 and 2.5 LTM User manual www.Daniel.com...
  • Page 28 The meter housing shown is for class 150 raised face flange. For additional classes and flange types contact Daniel Flow sales representative. Note For alternative materials and NACE, contact Daniel Flow sales and service. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 29: Agency Certifications For The Series 1500 Ltm

    DEMKO 03 ATEX 130946X Rev. 7 Pressure equipment CE 60685 (2014/68/EU Module H1) Metrology NMi TC7573 TC7573 Rev. 4 INMETRO (Brazil) UL-BR 16.0354X Rev. 2016 Ambient temperature -40 ºC to 60 ºC (-40 ºF to 140 ºF) User manual www.Daniel.com...

  • Page 30: Operating Conditions And Specifications

    -40 ºC to 204 ºC (-40 ºF to 400 ºF) (Stainless steel flanges) Fluid static pressure The maximum working pressure for the Daniel Series 1500 Liquid Turbine Meter is based on the temperature/ pressure rating of the ANSI B16.5 flanges. For maximum working pressures at intermediate temperatures refer to ANSI B16.5.
  • Page 31 Corrosive service Select the material compatible with specific processes and atmospheric environments. Implement a periodic inspection and maintenance program to ensure that pressure-retaining components are free from corrosion and erosion. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 32 The ideal accuracy curve of a volumetric meter, such as the turbine, is a straight line denoting a constant meter factor. Cavitation is the formation and collapse of vapor-filled cavities that result from a sudden decrease and increase in pressure. Refer toBack pressure calculation for more information. User manual www.Daniel.com...
  • Page 33 Insufficient back pressure leads to measurement inaccuracy. The resulting flashing and cavitation is extremely damaging to the flow meter and pipe work. Figure 2-1: Effects of back pressure Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 34 Pressure gauges installed on both sides of the strainer monitor differential pressure across the strainer. High pressure differential caused by filling of the basket or occlusion of foreign material can cause a strainer basket rupture, resulting in possible turbine meter damage. User manual www.Daniel.com...

  • Page 35: Specifications For The Ltm

    • Type: Square wave • Frequency range: 0 to 5 kHz • Amplitude: 0 to Supply voltage • 1000 Ohm internal pull-ups, 70 mA, max. Construction Delrin housing Solid epoxy encapsulation Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 36 Solid epoxy encapsulation Table 2-6: 1817X Bi-directional preamplifier performance Parameter type Description Inputs Supply voltage: 11.5-36 VDC Sensor type: Reluctance Signal: Sine wave Preamplifier sensitivity: 40 mVpp Temperature range: -40 ºC to 85 ºC (-40 ºF to 185 ºF) User manual www.Daniel.com...
  • Page 37 +10 to 30 Vdc Common Common Channel A output Channel B output TTL out A TTL out B TB2 - Channel A pickoff (1) White TB3 - Channel B pickoff (1) White Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 38 Each pickoff produces a low level sine wave signal which varies in amplitude (mV) and frequency (Hz) proportional to the velocity of the turbine blades. This signal information is coupled to the input terminals of the preamplifier. User manual www.Daniel.com...
  • Page 39 It is important that the correct service manual be referenced before attempting to use accessories or instrumentation with the Series 1500 LTM. Contact the factory or nearest Daniel service office if service manuals for were not received at the time of purchase or delivery.
  • Page 40 Important A spool piece installed in place of the turbine meter is recommended for this procedure. NOTICE Comply with local government regulations and company requirements. User manual www.Daniel.com...
  • Page 41 228.6 114.3 269.1 254.0 127.0 280.2 Table 2-12: Flow meter and flow straightening section dimensions for the Series 1500 LTM NPS 1-2.5 Size Inches Inches Inches 838.2 1181.1 990.6 12.5 1206.5 Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 42 Operating conditions and specifications P/N 3-9008-507 September 2020 Table 2-13: Weight table for the stainless steel LME Size ANSI class 150 ANSI class 300 ANSI class 600 10.6 11.6 12.6 14.1 15.6 13.6 14.6 16.6 17.6 20.6 22.6 User manual www.Daniel.com...

  • Page 43: Turbine Meter Handling

    1. Use stretch wrap (not adhesive) to attach the correct size flange cover to the turbine meter end flanges. This protects the unpainted surfaces of the flange sealing. 2. A flush contact between the flange cover and the flange sealing face is important. User manual www.Daniel.com...
  • Page 44 Stacking When stacking equipment, follow all safety standards, taking into account the type of box used, the maximum height of the equipment, the maximum number of boxes stacked, etc. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 45: Prepare The Turbine Meter For Use

    WARNING LIFTING HAZARD The lifting instructions are for installation and removal of the Daniel Liquid Turbine Meter only and do not address lifting the turbine meter while it is attached or bolted to piping. Failure to comply with these instructions may result in death, serious injury, or equipment damage.

  • Page 46: Lifting Requirements For Personnel

    Best lifting practices WARNING LIFTING HAZARD The lifting instructions are for installation and removal of the Daniel Liquid Turbine Meter only and do not address lifting the turbine meter while it is attached or bolted to piping. Failure to comply with these instructions may result in death, serious injury, or equipment damage.
  • Page 47 Prepare the turbine meter for use P/N 3-9008-507 September 2020 Safety precautions using appropriately rated lifting slings When lifting a liquid turbine meter by itself, Daniel recommends using lifting slings appropriately positioned at designated areas of the turbine meter. WARNING LIFTING HAZARD...
  • Page 48 Doing this may cause injury and/or damage the equipment. • Never apply shock loads to the turbine meter. Always lift the turbine meter gradually. If shock loading occurs, inspect the slings per manufacturer's recommendations prior to further use. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 49: Configuration Of The Turbine Meter

    Prepare the turbine meter for use P/N 3-9008-507 September 2020 Configuration of the turbine meter The Daniel factory configures the turbine meter internal components. Inspect the internal components before installation. 4.3.1 Orientation and position of the turbine meter Flow direction Turbine meters can be used for uni-directional or bi-directional flows.
  • Page 50 Comply with local government regulations and company requirements. Important Ensure that piping or other attachments connected to the turbine meter are not under stress. Important Provide fire prevention measures and equipment per local regulations. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 51 P/N 3-9008-507 September 2020 4.3.3 Calibration options for the turbine meter Daniel offers a standard six-point calibration (from 10% to 100%); or can provide other customer requested calibration data. Table 4-2: Standard calibration for a Daniel Liquid Turbine Meter Calibration type...
  • Page 52 LME as the primary ground. A secondary ground is located outside of the LME. Refer to Figure 4-4 Figure 4-5. Digital grounds should never be connected to chassis ground. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 53 Figure 4-5: Internal ground lug A. Internal ground lug Important Use the internal grounding terminal as the primary equipment ground. The external terminal is only a supplemental bonding connection where local authorities permit or require such a connection. User manual www.Daniel.com...
  • Page 54 4-4. Table 4-4: Installation dimensions for the RME Device Transmission distance Pickoff to RME 6.1 meters (20 ft.) maximum from RME dual channel Preamplifier to receiver 1525 meters (5,000 ft.) maximum Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 55 Security seals protect the integrity of the turbine meter metrology and prevent preamplifier and pickoff tampering. Follow the steps below to seal the electronics enclosure of the Daniel 1500 LTM after commissioning. The security seal wires are commercially available. CAUTION CUTTING HAZARD Sharp edges may be present on the band shrouds.
  • Page 56 (maximum wire diameter 2.0 mm, .078 inch). 3. Adjust the security wire, removing all slack and thread into the lead seal. 4. Cut the ends of the wire to remove any excess wire. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 57: Part Ii Install

    USER MANUAL User manual Install P/N 3-9008-507 September 2020 Part II Install User manual www.Daniel.com...

  • Page 58: Chapter 5 Installation Prerequisites

    • 6 mm Allen key • 3 mm Allen key • 2.5 mm Allen key • 3/32 Allen key • 10 mm Allen key • Phillips screwdriver • 3.5 mm Flathead screwdriver • 10 mm Flathead screwdriver User manual www.Daniel.com...

  • Page 59: Chapter 6 Installation Procedure

    Property class of the fastener is in accordance with ASME B16.5. Stud bolt and nut types All fasteners (nuts and studs) used in assembling Daniel turbine meters are made of one of the materials listed in the table below. Table 6-2: Bolt material selection...

  • Page 60: Assemble The Electronic Components

    Remove each nut and bolt as a pair. Thread the matching nut back onto the bolt. Stack them in a fashion that will not cause thread damage. Reuse of flange stud bolts and nuts Daniel Quality Control permits the reuse of threaded fasteners under the following conditions: •...
  • Page 61 5. Install the electronics according to Wiring and cable connections. Consult with Daniel if the preamplifier acquired is other than a dual channel preamplifier. WARNING SHOCK AND EXPLOSION HAZARD Verify that the LME and/or RME is grounded.

  • Page 62: Chapter 7 Testing

    3. Evaluate the system setup to ensure that all components are in the correct sequence for accurate product measurement: isolation valve, strainer, flow straightener, turbine meter, downstream section, control valve, etc. 4. Ensure that the supply voltage to the preamplifier is within the 10-30 VDC range. User manual www.Daniel.com...
  • Page 63 USER MANUAL User manual Operate P/N 3-9008-507 September 2020 Part III Operate User manual www.Daniel.com...

  • Page 64: Chapter 8 Operation Parameters

    Operation parameters Operation overview The Daniel Series 1500 LTM is a volumetric flow measuring and transmitting device that produces an output signal proportional to the rate-of-flow of the liquid being measured. The primary output is a single or dual high resolution signal that is amplified and shaped by an integral preamplifier mounted within an explosion-proof housing.
  • Page 65 This wave pulse can be fed directly to remote totalizing counters, digital readout devices, presets, or control instrumentation. NOTICE Inspect all electrical connections to ensure compliance to electrical codes and safety regulations. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 66: Part Iv Maintain

    SERIES 1500 LIQUID TURBINE METER User manual Maintain P/N 3-9008-507 September 2020 Part IV Maintain User manual www.Daniel.com...

  • Page 67: Chapter 9 Planned Maintenance

    Use the following tools for turbine meter disassembly: • Needle nose pliers • Torque wrench (dependant on size) • Ratchet with correspondent hex socket (dependant on size), or screwdriver with hexagonal tip • 3 mm Allen key • 3.5 mm flathead screwdriver • Mallet User manual www.Daniel.com...

  • Page 68: Prepare For Mechanical Disassembly

    7. Remove turbine meter from line. Refer to Lifting equipment Lifting conditions, Lifting requirements for personnel, and Safety precautions using appropriately rated lifting slings for instructions on lifting the turbine meter. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 69 2. Using a long dowel or rod, push the downstream end of the downstream spring clip assembly towards the upstream end of the housing. This will slide the internal assembly and sleeve out of the meter housing. User manual www.Daniel.com...
  • Page 70 Thrust washers may remain in the cones but may be loose. Be careful not to drop the thrust washer. 4. Remove the rotor from the shaft. The journal may come off with the rotor or remain on the shaft. Take care not to drop the journal. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 71 Notice which direction the rotor was assembled. 5. Remove the journal and thrust washer from the shaft. Figure 9-5: Journal removal A. Downstream cone 6. To remove the shaft, pull the shaft out of the cone and spring clip assembly. User manual www.Daniel.com...
  • Page 72 NPS 1 and 1.5. 9.3.2 Disassemble internal meter housing components - NPS 1.5, 2 and 2.5 Procedure 1. Remove downstream shaft nut simultaneously holding upstream shaft nut to prevent turning. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 73 NPS 1.5 meter - Thrust washer may remain in cone but may be loose. Be careful not to drop the thrust washer. 3. For NPS 1.5 meter the downstream cone is welded to spring clip assembly. For NPS 2 and 2.5 meter remove the downstream cone from shaft. User manual www.Daniel.com...
  • Page 74 Note "The letter A" is etched on one side of rotor hub. The letter "B" on the other side. Notice which direction the rotor was assembled. 5. Remove journal from shaft. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 75 Figure 9-12: Upstream cone and thrust washer removal Note Thrust washer may remain in cone but may be loose. Be careful not to drop it. On uni-directional meters upstream and downstream cones are different. 7. Remove shaft form upstream end of meter. User manual www.Daniel.com...
  • Page 76 NPS 1.5 meter - The thrust washer may remain in the cone but may be loose. Be careful not to drop the thrust washer. All parts should be cleaned, inspected, and any part found to be worn should be replaced. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 77: Mechanical Assembly

    Figure 9-15: Shaft and thrust washer installation A. Downstream cone 2. Place the journal on the shaft and slide to contact the downstream cone. Wipe the outside surface of the journal with a clean cloth. User manual www.Daniel.com...
  • Page 78 Figure 9-18: Thrust washer and spring clip assembly installation A. Downstream cone B. Upstream cone Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 79 6. Install the sleeve and retainer ring in the groove in the upstream end of the housing bore. Tang side of the retainer ring is to be inserted last to provide for future disassembly. Figure 9-20: Sleeve and retainer ring installation User manual www.Daniel.com...
  • Page 80 2. Insert the end of the shaft into the center hole of the upstream end of the upstream spring clip assembly. For NPS 1.5 meter, be careful not to knock the thrust washer out of the cone counterbore. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 81 Slide the shaft into the meter, contacting the downstream end of the upstream spring clip assembly. Figure 9-23: Upstream cone installation 4. Place the journal on the shaft. Wipe the outside surface with a clean cloth. User manual www.Daniel.com...
  • Page 82 For NPS 2 and 2.5 meters place the thrust washer in the counterbore on the downstream cone face, polished side out. Install the downstream cone, large diameter end first, onto the shaft and slide along the shaft to the rotor. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
  • Page 83 Note Rotate the downstream spring clip assembly to align the three tubes with the tubes of the upstream spring clip assembly. 8. Hand-tighten the downstream nut, simultaneously holding the upstream nut to prevent the shaft from turning. User manual www.Daniel.com...

  • Page 84: Electronics Enclosure Disassembly

    3. Uninstall the security latch. 4. Uninstall the solid end cap. 5. Uninstall the wiring connections from the preamplifier. 6. Loosen and remove the socket screws from the plate bracket to the housing. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 85: Electronics Enclosure Assembly

    The joint between the LME cover and housing is a threaded joint. The joint between the LME housing and Sensor housing is a spigot joint with a minimum axial length of 26.16 mm (1.030 in), radial length of 3.18 mm (0.125 in), and a clearance of 0.07 mm (0.0028 in). User manual www.Daniel.com...

  • Page 86: Replace The Preamplifier

    11. Install the security seal wire. Replace the preamplifier Procedure 1. Disconnect all power to the turbine meter. 2. Remove cover of the RME. 3. Loosen screws of preamplifier bracket and lift out of the enclosure. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 87: Planned Maintenance Tasks

    A careful review of turbine meter proving history, such as turbine meter factor control charts, can reveal potential problems with turbine meter measurements. Examples include bearing drag due to wear or an increased internal cross-sectional area due to erosion. User manual www.Daniel.com...

  • Page 88: Chapter 10 Corrective Maintenance

    September 2020 Corrective maintenance 10.1 Turbine meter troubleshooting Use the table below to troubleshoot the turbine meter. Contact the nearest Daniel service office for repairs. It is important that servicing be performed by trained and qualified service personnel. Table 10-1: Troubleshooting...
  • Page 89 4. Ensure that the supply voltage to the preamplifier is within the 10-30 VDC range. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...

  • Page 90: Chapter 11 Spare Parts

    SERIES 1500 LIQUID TURBINE METER User manual Spare parts P/N 3-9008-507 September 2020 Spare parts 11.1 Recommended spare parts The figure below identifies the spare parts for an LME assembly. Figure 11-1: Part identification for a standard enclosure User manual www.Daniel.com...
  • Page 91 RME assembly - Pipe mount RME assembly - Wall mount. Order spare parts Contact Daniel Flow customer service and provide the following information when ordering spare parts: • Turbine meter serial number • Part number •...

  • Page 92: Chapter 12 Decommission The Turbine Meter

    Thoroughly clean the turbine meter inside the housing components and store or ship as it was received. Refer to Pack the turbine meter. After the meter is shut down, refer to Electronics enclosure disassembly Electronics enclosure assembly for the detailed disassembly/assembly procedures. User manual www.Daniel.com...

  • Page 93: Shipment Of The Meter

    USER MANUAL Decommission the turbine meter User manual September 2020 P/N 3-9008-507 12.3 Shipment of the meter Refer to the Daniel Flow customer service information in the preface of this document. Daniel Series 1500 Liquid Turbine Meter, NPS 1-2.5 www.Daniel.com...
