ACE SOFTWARE OPERATION

LAUNCHING THE SOFTWARE

After the EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ and the
SDP-H1 are properly connected to the PC, launch the
tion software by taking the following steps:
1. From the Start menu of the PC, click All Programs > Analog
Devices > ACE> ACE.exe to open the ACE software main
window shown in Figure 16.
2. Connect the EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ
and the SDP-H1 to the USB. If the EVAL-ADAQ4001FMCZ/
EVAL-ADAQ4003FMCZ is not connected to the USB port via
the SDP-H1 when the software launches, the ADAQ4001 Eval
Board or ADAQ4003 Eval Board icon does not appear in the
Attached Hardware section. To make the ADAQ4001 Eval
Board or ADAQ4003 Eval Board icon appear, connect the
EVAL-ADAQ4001FMCZ/EVAL-ADAQ4003FMCZ and the SDP-
analog.com
H1 to the USB port of the PC, wait a few seconds, and then
follow the instructions in the dialog box that opens.
3. Double click the ADAQ4001 Eval Board or ADAQ4003 Eval
ACE evalua-
Board icon in the ACE software main window (see
to open the board view window shown in
4. Double click the ADAQ4001 or ADAQ4003 chip icon in the
board view window (see
window shown in
provided by the
view window. Type the value of the reference voltage in the
reference voltage box in the chip view window when using the
external reference.
5. Click Software Defaults and then click Apply Changes to
apply the default settings.
6. Click the Proceed to Analysis button to show the Analysis
view window, as shown in

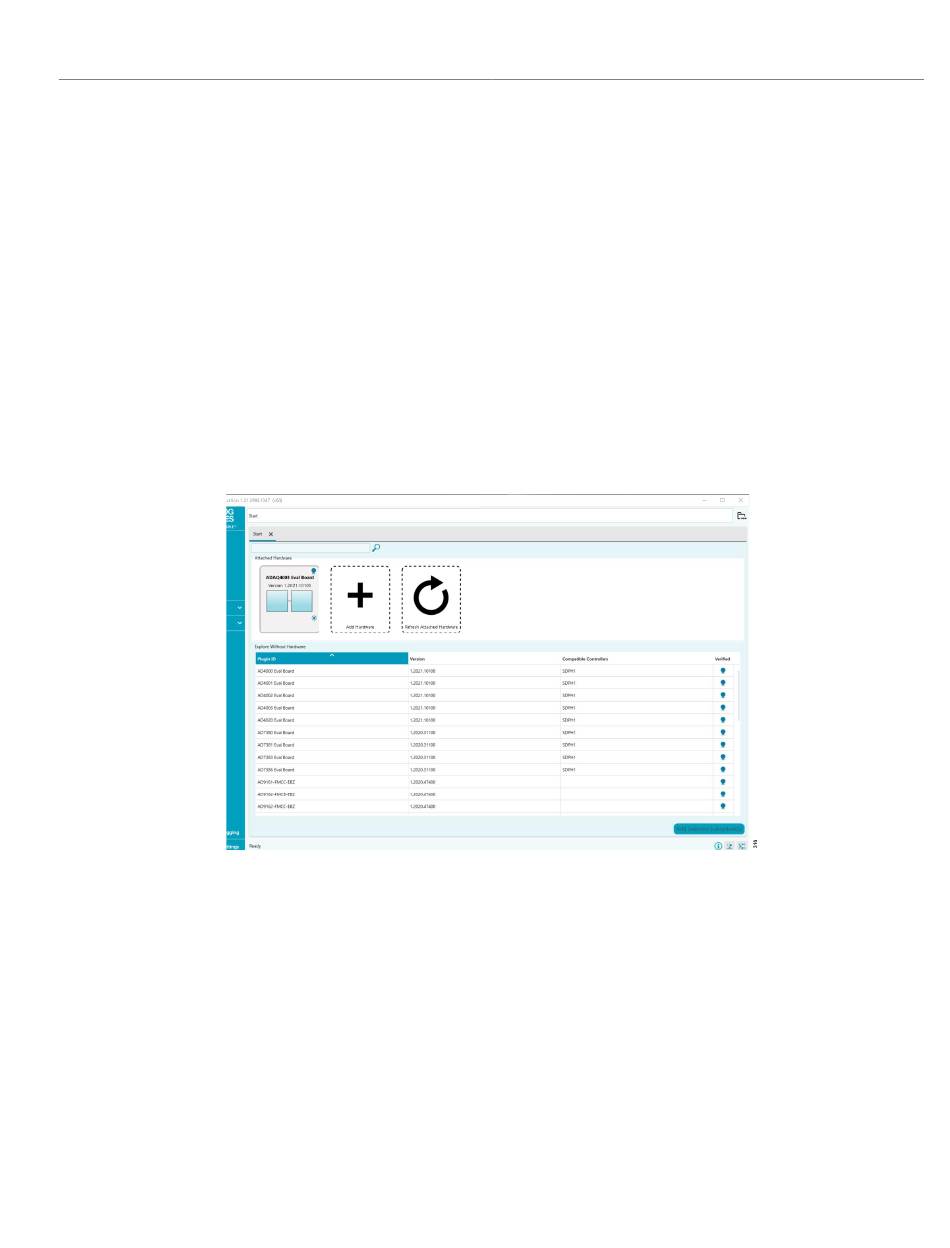

Figure 16. ACE Software Main Window
EVAL-ADAQ4001/EVAL-
Figure 17) to open the chip view
Figure 18. The on-board voltage reference
ADR4550 is 5.0 V, as shown in the board
Figure 19.
ADAQ4003
Figure 16)
Figure 17.
